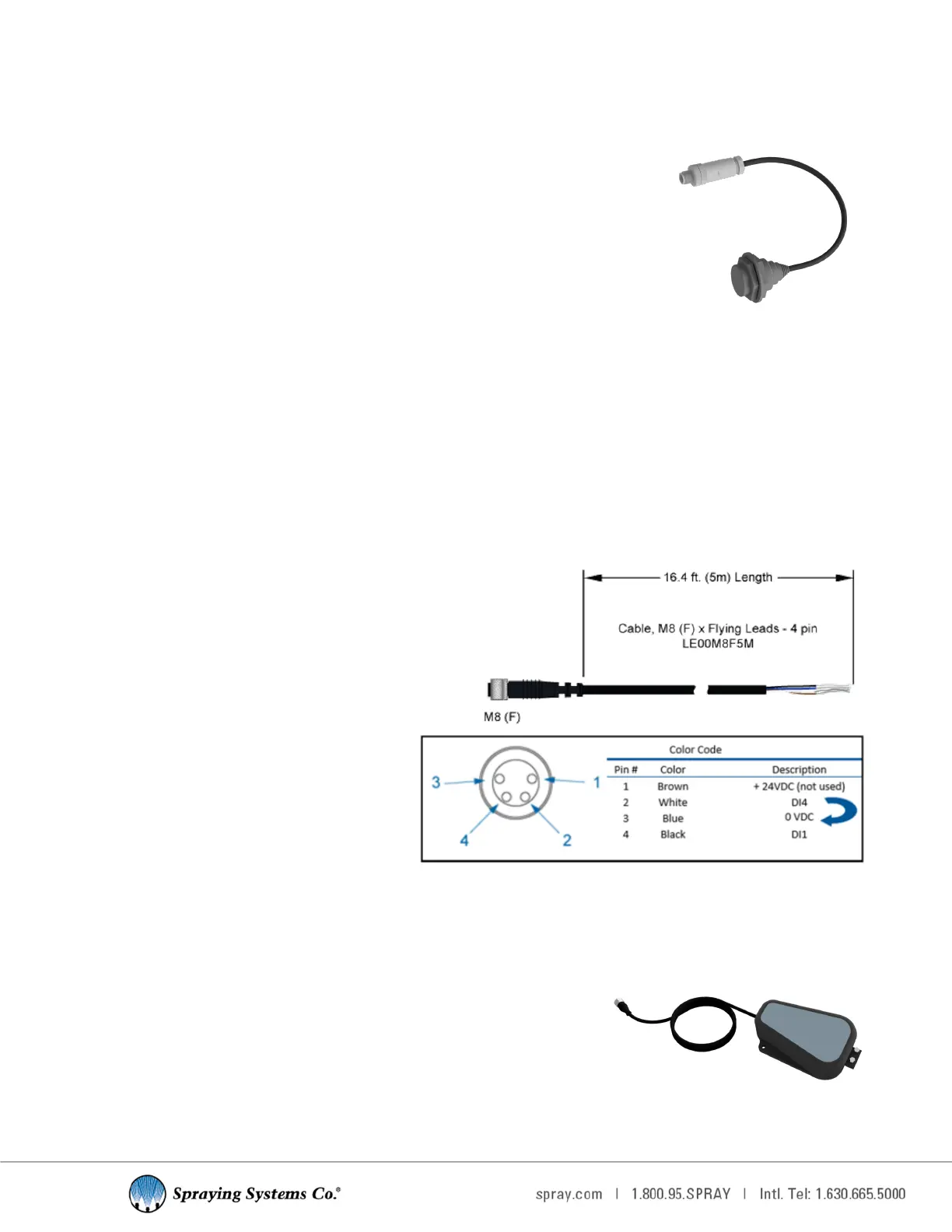

12.5 PROXIMITY SENSOR
For sensing metallic objects. Kit includes sensor, with mounng nuts and locking washer, and cable.
SPECIFICATIONS:
Proximity sensor – Detects all metals 10mm max. sense dist., 24vdc, NPN outputs
N.O./N.C., shielded, IP67, 5m cable wired
•
Kit number: 040TS04000118W0
•
NPN – NO + NC
•
Working temperature range = -13°F to 176°F [-25°C to 80°C]
•
IP67, NEMA type 6 (waterproof); CE rated
12.6 TRIGGER INTERLOCK
SCS Series spray control panels feature an oponal secondary run enabled trigger (Trigger Interlock feature) or a digi-
tal input for a level switch.
For the secondary run trigger (DI4), this feature provides a way for you to provide a run signal to the spray control
panel. If this signal is not present, then the system will ignore the trigger signal. An example of this would be if you do
not want the nozzle to spray unless the conveyor is running and there is a part present to spray. This input always
goes to 0V, pin 3. To acvate this feature on the HMI, go to sengs/trigger and pick trigger source DI2+DI4.
For the level switch opon (DI1), this feature allows you to wire in a normally open or normally closed level switch
from a liquid tote or tank. When the tank runs low and the level switch contact closes or opens, the spray control pan-
el will display a fault. To use these features, you need our cable part number LE00M8F5M. This input always goes to
0V, pin 3. To acvate this feature on the HMI, go to sengs/tank level and turn on under level sensor.
SPECIFICATIONS:
•
Kit number: LE00M8F5M
•
Panel connecon: T. int.
•
Cable: 16.4 . [5 m] cord length
•
Flying Leads
•
Connector end – M8 4 pin female
12.7 FOOT SWITCH
For manual triggering of the system. Heavy duty foot switch provides for hands free triggering in a manual triggering
applicaon.
SPECIFICATIONS:
•
Kit number: 040TS04000130W0
•
Momentary on switch
Wired normally open (can be wired normally closed)
•
M12 (M) connector – connects to “Main” on control panel - 4 pin
•
16.4 (5m) cable length
