Note. Whenever syncout pulses overlap they are merged into one pulse.
_Syncout pulse merge illustrated, pulse generation on start, stop and shift on offset (pulse length measured in microseconds)
Synchronization settings setup in XiLab is described in Synchronization settings section.

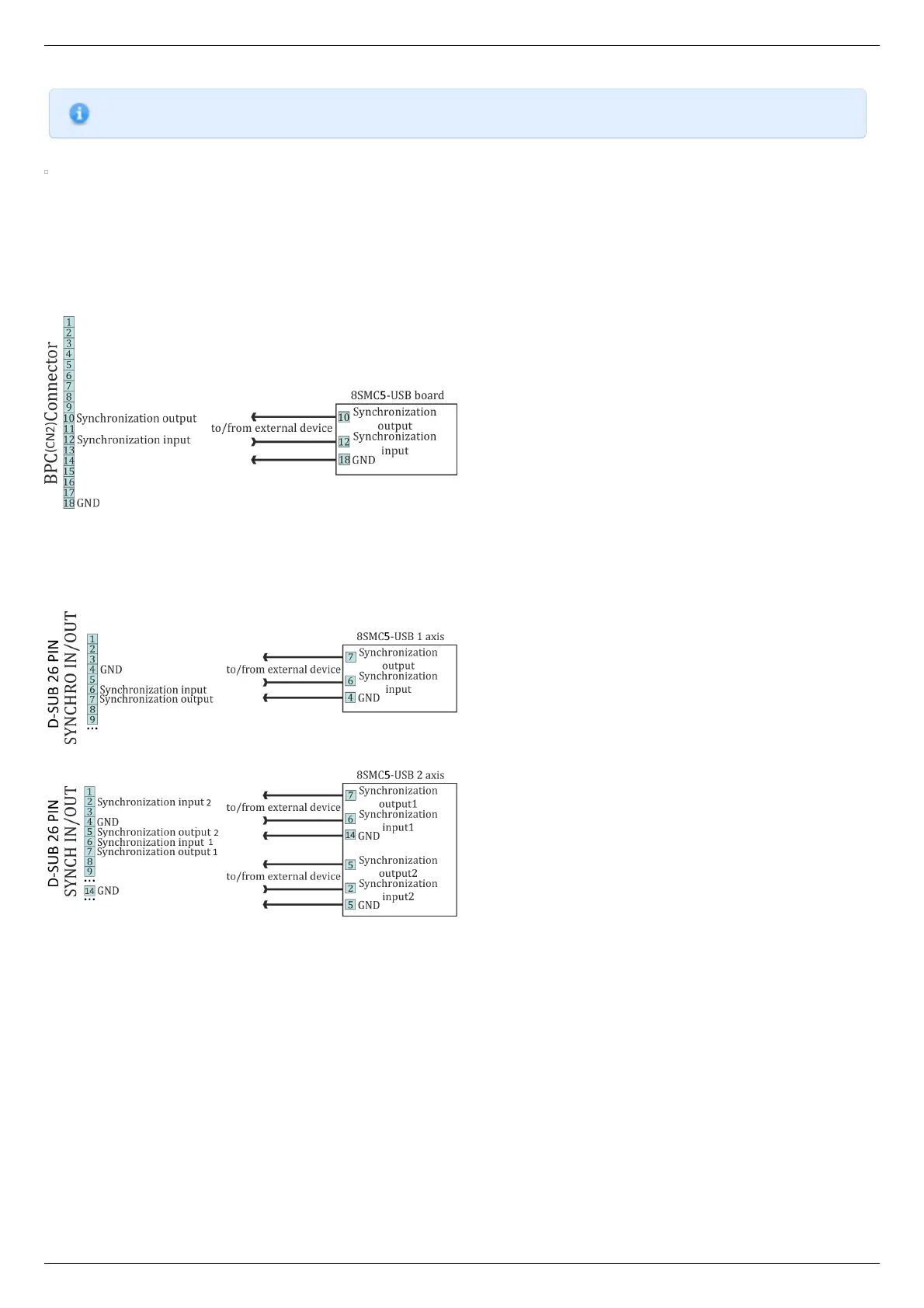

Connection diagram
Controller board
Controller board contains two TTL-channels of synchronization on the BPC connector.
Scheme of connection to the synchronization channels for the controller board
One-axis and two-axis systems
Synchronization signals on the one-axis and two-axis systems are located on the HDB-26 connector.
Scheme of connection to the synchronization channels for the one-axis system
Scheme of connection to the synchronization channels for the two-axis system
