BR 800 55
N Fit the valve springs (4) over the valve stems.
N Fit the valve spring retainers (3) over the valve stems
and push them sideways so that they engage the
grooves in the valve stems.
N Install rocker arms, @ 18.6.
N Install crankshaft (11) with piston (13), @ 20.8.
N Install engine pan (8) and oil seals (10 and 12), @
20.11.

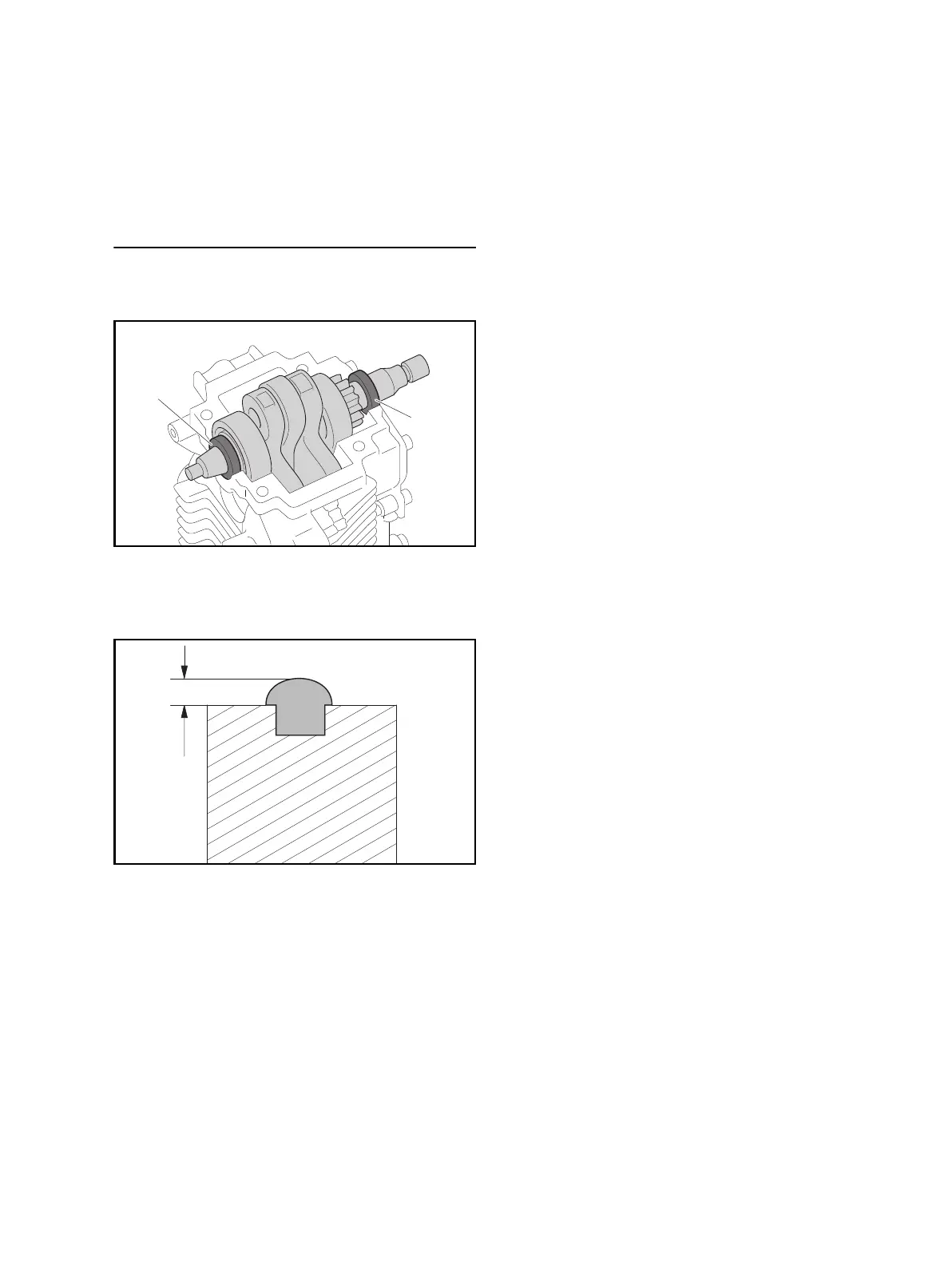

20.11 Installing the Engine Pan and Oil Seals
N Lubricate lips of oil seals (10 and 12) with
multipurpose grease.
N Push the oil seals (10 and 12) onto the crankshaft
stubs so that their open sides face the crankshaft (11)
and their outboard sides are flush with the cylinder
wall.
N Apply bead of sealant to sealing face of engine pan
(8) (a = 2 - 3 mm (0.08 - 0.12 in)).
N Fit the engine pan (8) in position.
N Insert screws (9) and initially tighten them alternately
in crosswise pattern.
N Finally tighten the screws (9) alternately in crosswise
pattern.
N Install inner blower housing, @ 17.7.
N Install the blower wheel, @ 17.8.
N Install outer blower housing and elbow, @ 17.9.
N Install the backplate, @ 10.12.
N Install the airflow shroud, @ 14.3.
N Install the filter housing and carburetor, @ 8.3.
N Install the air filter, @ 7.3.
N Install the shroud, @ 7.5.
N Install the rewind starter, @ 6.14.
12
10
0000-GXX-6698-A0
a
8016RT008 AS
