59MS 240, MS 260, MS 260 C

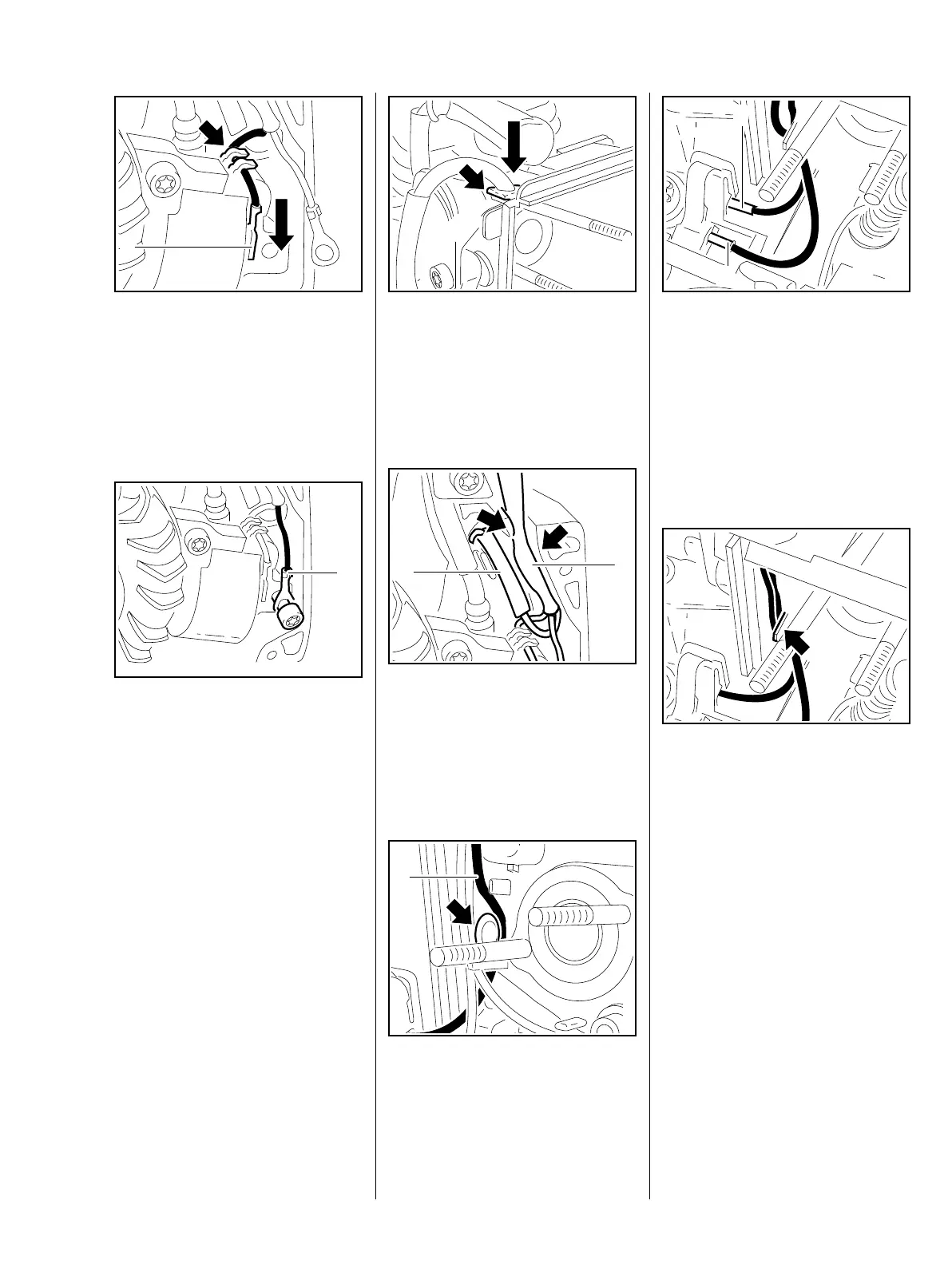

Start installation and connector of
the short circuit wire at the ignition
module.
: Connect the short circuit wire (1)
and push it into the retainer
(arrow).
: Fit the ground wire (1), insert the
screw and tighten it down firmly.
When tightening, make sure the
terminal does not butt against the
housing.
– Check air gap on ignition module
and reset if necessary, b 9.5
165RA210 TG
1
165RA211 TG
1
: Fit the grommet (arrow) in the
opening and make sure it is
properly seated.
– Use STIHL press fluid to simplify
assembly, b 17
: Push the short circuit wire with
insulating tube (1) into the guides
(arrows).
: Push the pin and socket
connector (2) into its guide.
: Position the ground wire (1)
behind the stop buffer (arrow).
165RA212 TG
165RA499 TG
1
2
165RA485 TG
1
: Push connector (1) of ground
wire (greem/yellow) into the
contact spring as far as stop.
: Push connectot (2) of short circuit
wire into the switch shaft as far as
stop.
– Install the switch shaft, b 12.1.1
: Push the wire into the guide
(arrow).
165RA214 TG
2
1
165RA215 TG
