Stihl TS 440 - 16 Control Panel; Tools, Aids; Removing the Control Panel

TS 44038
16.1 Tools, aids
– Socket T27x125 – 0812 542 2104 or equivalent tool
– Torque wrench – 5910 890 0302 or equivalent tool
– Screwdriver T27x200 – 5910 890 2415 or equivalent
tool
– Wiring tool - 5910 890 4000
– Flat nosed pliers

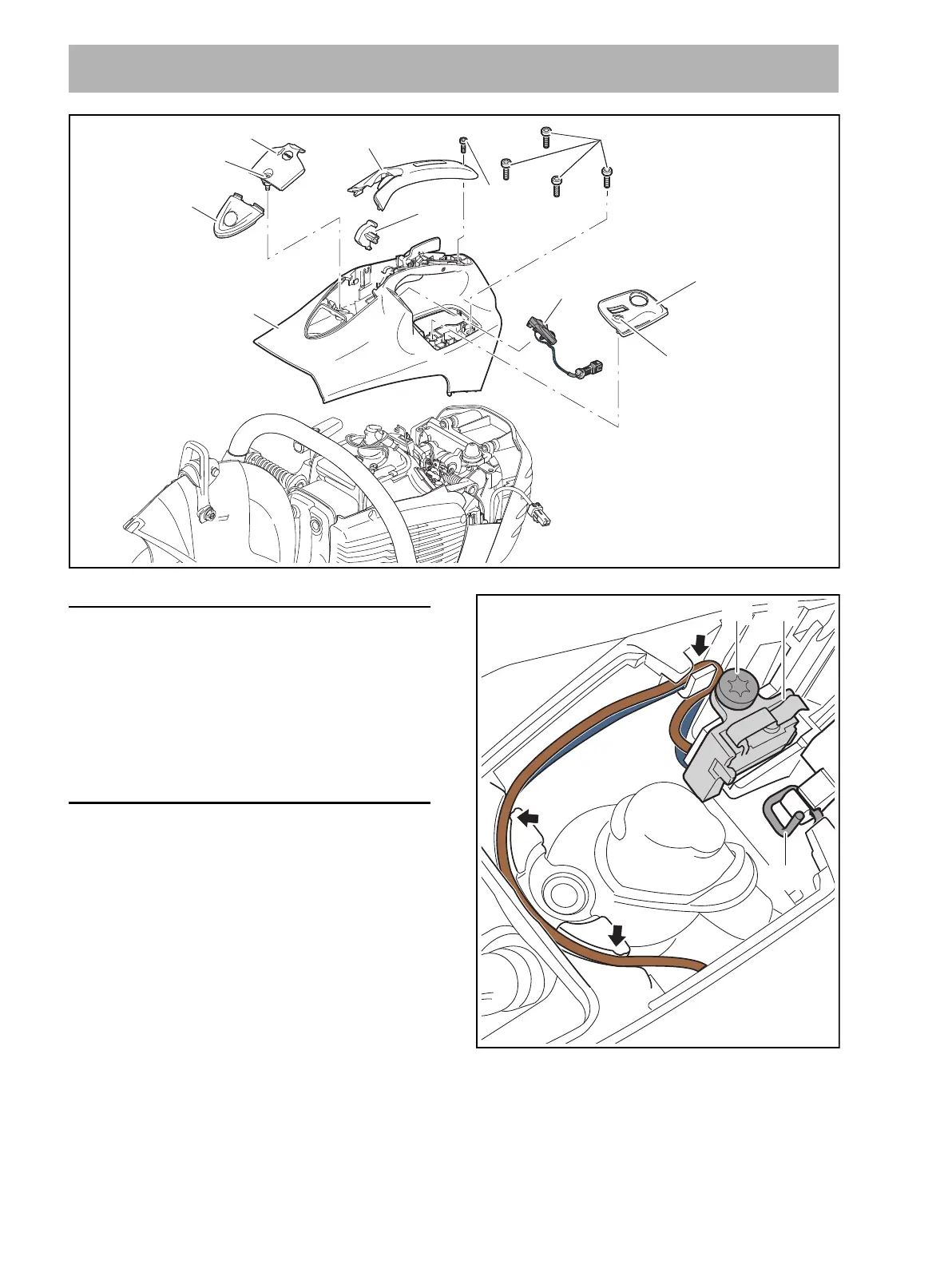

16.2 Removing the control panel
N Prepare for repair, @ 3.1
N Undo screw (1) and remove cap (2).
N Remove grommet (3).
N Undo screw (4).
N Remove handle molding (5).
N Remove switch shaft (6).
N Undo screw (8) and remove cap (7).
N Undo screw (12).
N Pull the short circuit and ground wires out of the
guides (arrows).
N Remove switch (13).
N Unhook throttle rod (14) and hook it into air baffle.
16 Control panel
2
0000-GXX-0454-A2
11
5
3
10
6
7
M5x17
(4,5 Nm / 40 lbf. in.)
1
4
P5x16
(4 Nm / 35 lbf. in.)
9
P6x19 (6 Nm / 53 lbf. in.)
8 M5x17
(4,5 Nm / 40 lbf. in.)
0000-GXX-0465-A0
14
12
13
