Stihl TS 440 Service Manual

TS 440 39

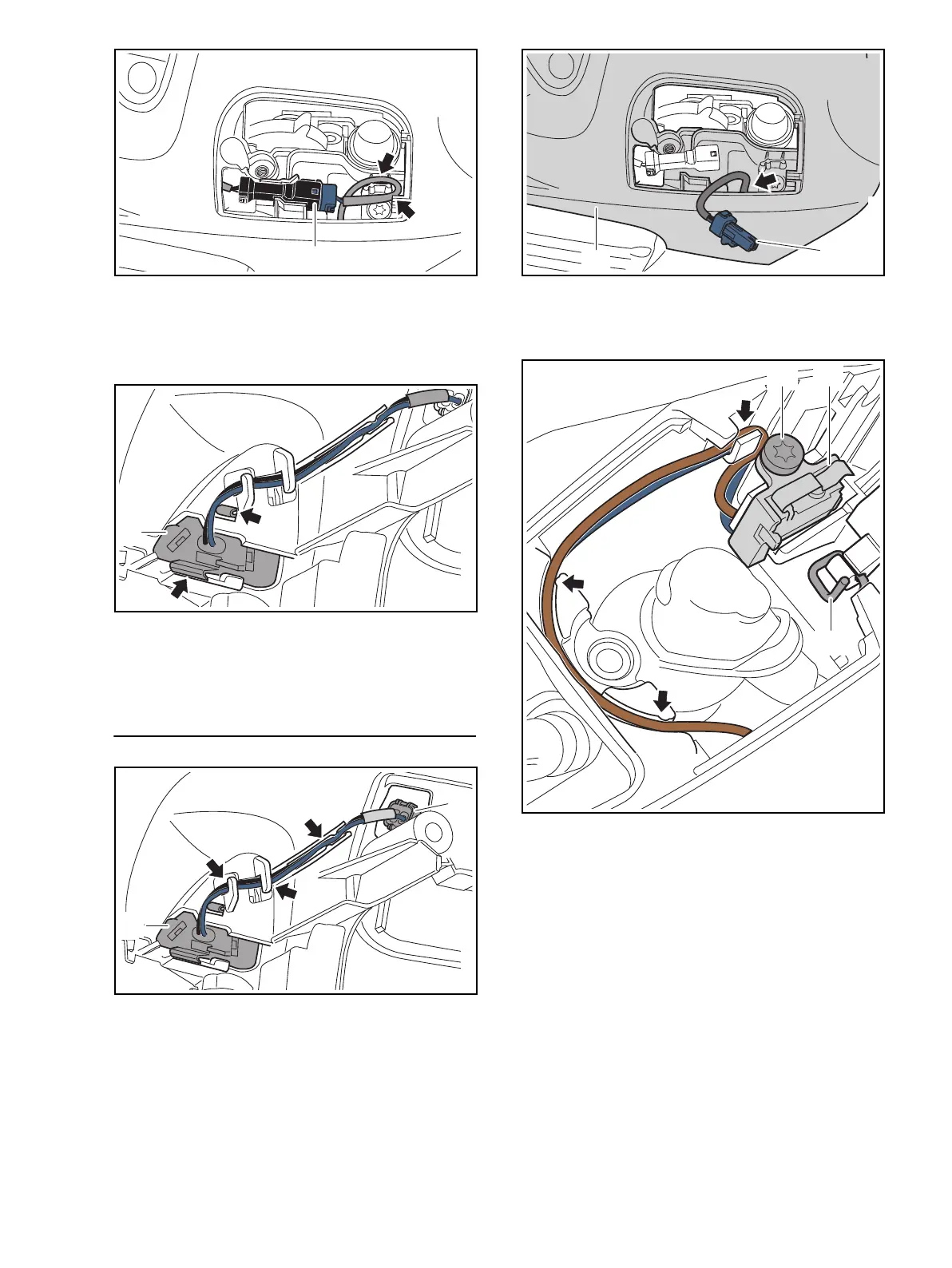

N Pull plug connection (15) and wires (arrows) out of
the guides and disconnect.
N Remove screws (9).
N Remove shroud (10).
N Pull the wires of the control panel (11) out of the
guides.
N Release retaining tabs (arrows) and push out control
panel (11).
16.3 Installing the control panel
N Insert control panel (11) and press in. The retaining
tabs engage.
N Push wires into the guides (arrows) with the aid of the
wiring tool and pass plug (16) through the opening.
N Attach throttle rod to rib of air guide shroud.
N Place shroud (10) in position, passing plug (16)
through the opening (arrow).
N Insert switch (13).
N Insert screw (12) and tighten.
N Push the short circuit and ground wires into the
guides (arrows) with the aid of the wiring tool.
N Hook throttle rod (14) onto throttle trigger.
N Insert screws (9) and tighten.
N Install switch shaft (6).
N Insert handle molding (5).
N Insert screw (4) and tighten.
N Fit grommet (3).
N Fit cap (2), insert screw (1) and tighten.
