Stihl TS 440 Service Manual

TS 440 11

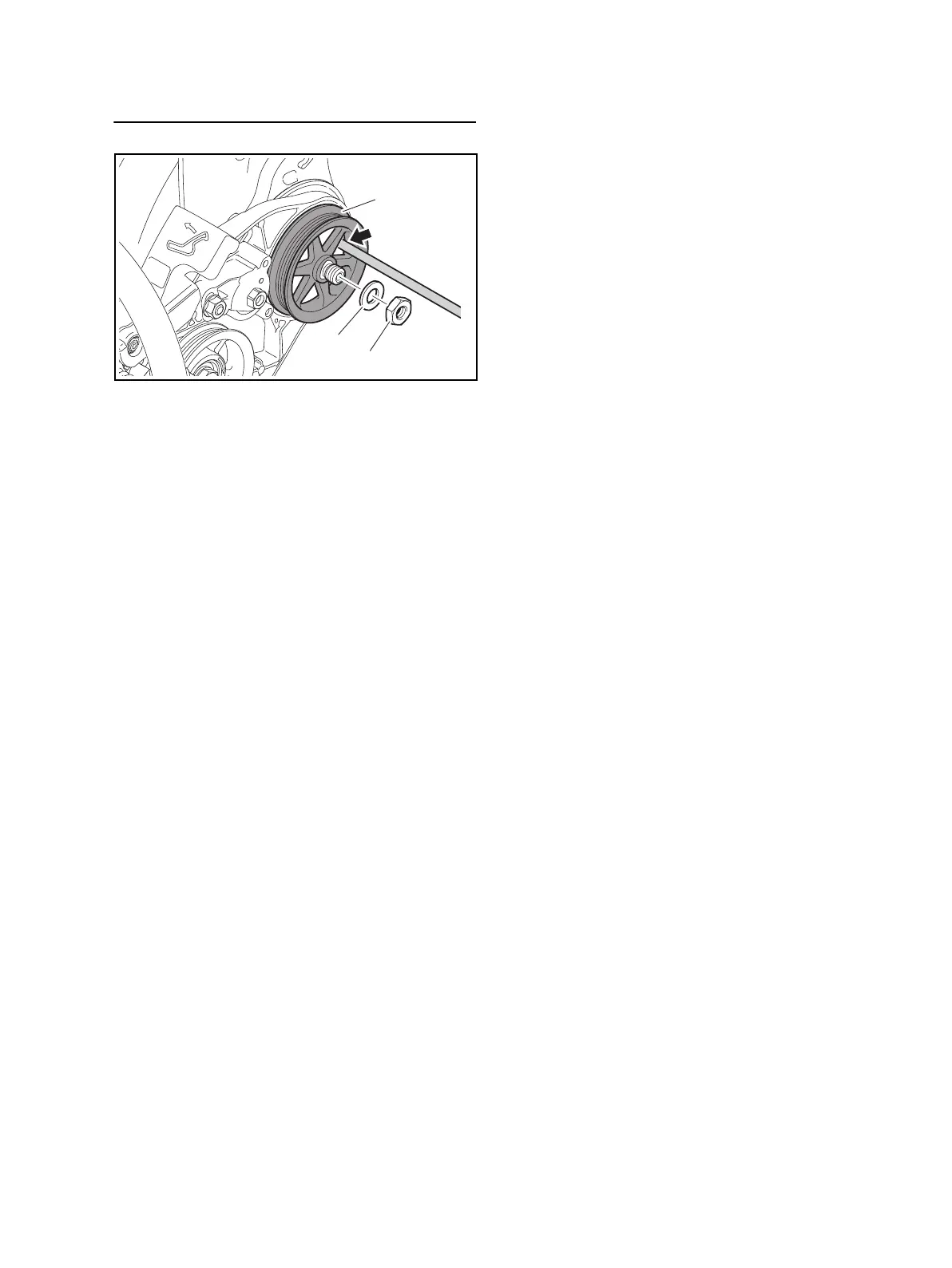

N Remove locking pin (arrow) 4130 893 7800.
N Pull off the belt pulley (6).
6.5 Installing the front belt pulley
N Push on the belt pulley (6).
N Block belt pulley (6) with locking pin (arrow)
4130 893 7800.
N Slide on the washer (5).
N Screw on and tighten nut (4) (40 Nm / 354 lbf. in.) for
pre-tensioning (left-hand thread).
N Unscrew the nut (4) (left-hand thread).
N Coat thread of the shaft with thread-locking adhesive.
N Screw on and tighten nut (4) (40 Nm / 354 lbf. in.)
(Left-hand thread)
N Remove locking pin (arrow) 4130 893 7800.
N Install the front V belt, @ 4.5.
N Install the rear V belt, @ 4.3.
N Attach starter cover with rewind starter, @ 4.3.
N Fit guard, @ 4.3.
0000-GXX-0443-A0
6
5
4

Stihl TS 440 Specifications

General

Engine Power	3.2 kW
Cutting Wheel Diameter	350 mm
Maximum Cutting Depth	125 mm
Arbor Size	20 mm
Cutting Depth	125 mm
Vibration Level Left/Right Handle	3.9/3.9 m/s²
Displacement	66.7 cc
Fuel Capacity	710 cc
Fuel Tank Capacity	710 cc
