Stihl TS 440 Service Manual

TS 440 15

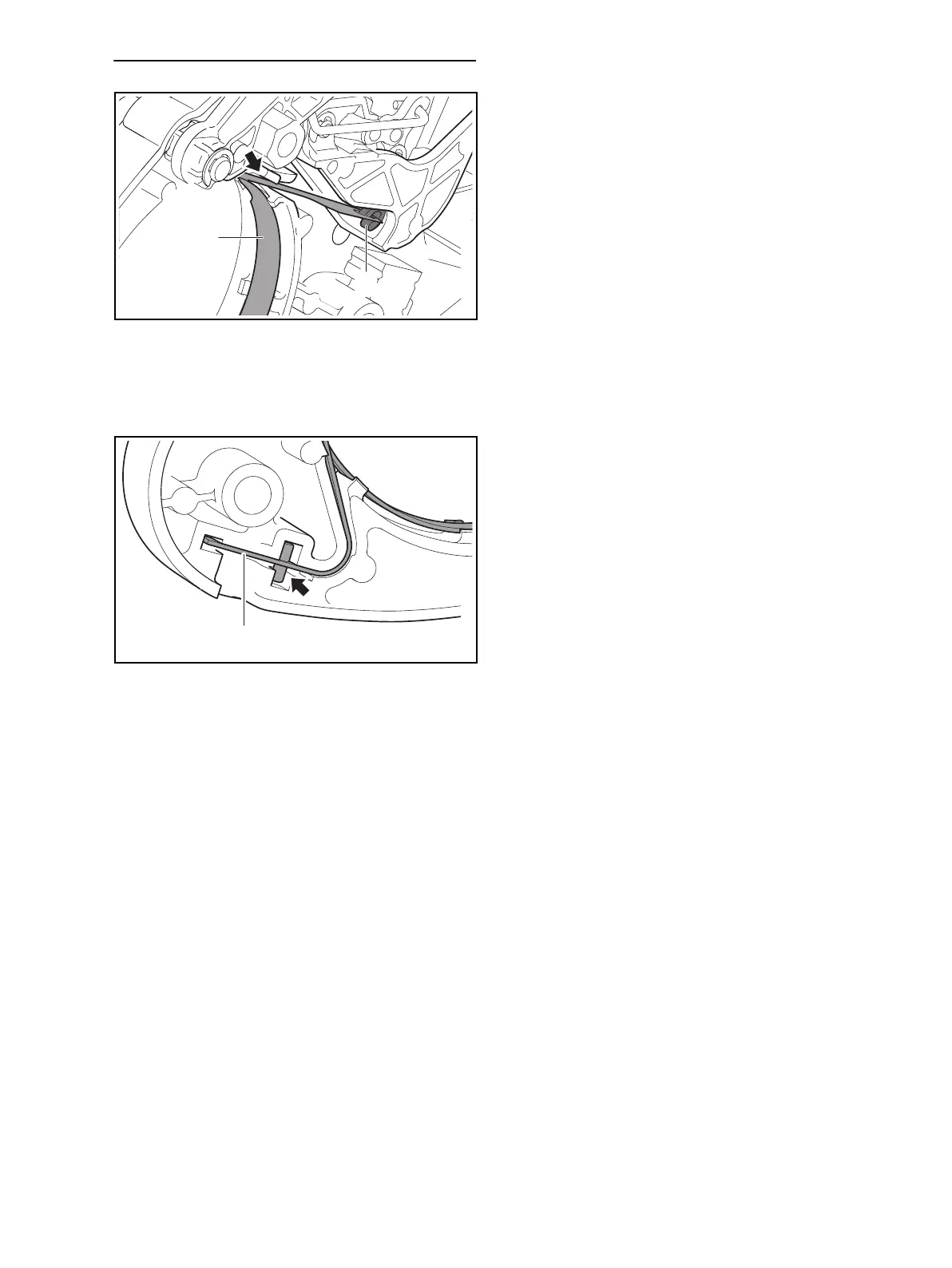

8.3 Installing the brake band
N Actuate the brake lever (5) and hold it there.
N Hook brake band (4) onto the lever (6).
N Insert brake band (4) into guide (arrow).
N Slowly release brake lever (5).
N Insert brake band (4) and press it into the
support (arrow).
N Coat thread of screw (3) with thread-locking
adhesive.
N Insert screw (3) and tighten.
N Insert holding-down clamp (2).
N Insert screws (1) and tighten.
N Install connector, @ 7.3.
N Install the rear V belt, @ 4.3.
N Install “starter cover with rewind starter”, @ 4.3.
N Fit guard, @ 4.3.
0000-GXX-0473-A1
4
6
0000-GXX-0474-A0
4

Stihl TS 440 Specifications

General

Engine Power	3.2 kW
Cutting Wheel Diameter	350 mm
Maximum Cutting Depth	125 mm
Arbor Size	20 mm
Cutting Depth	125 mm
Vibration Level Left/Right Handle	3.9/3.9 m/s²
Displacement	66.7 cc
Fuel Capacity	710 cc
Fuel Tank Capacity	710 cc
