Stihl TS 440 Service Manual

TS 440 9

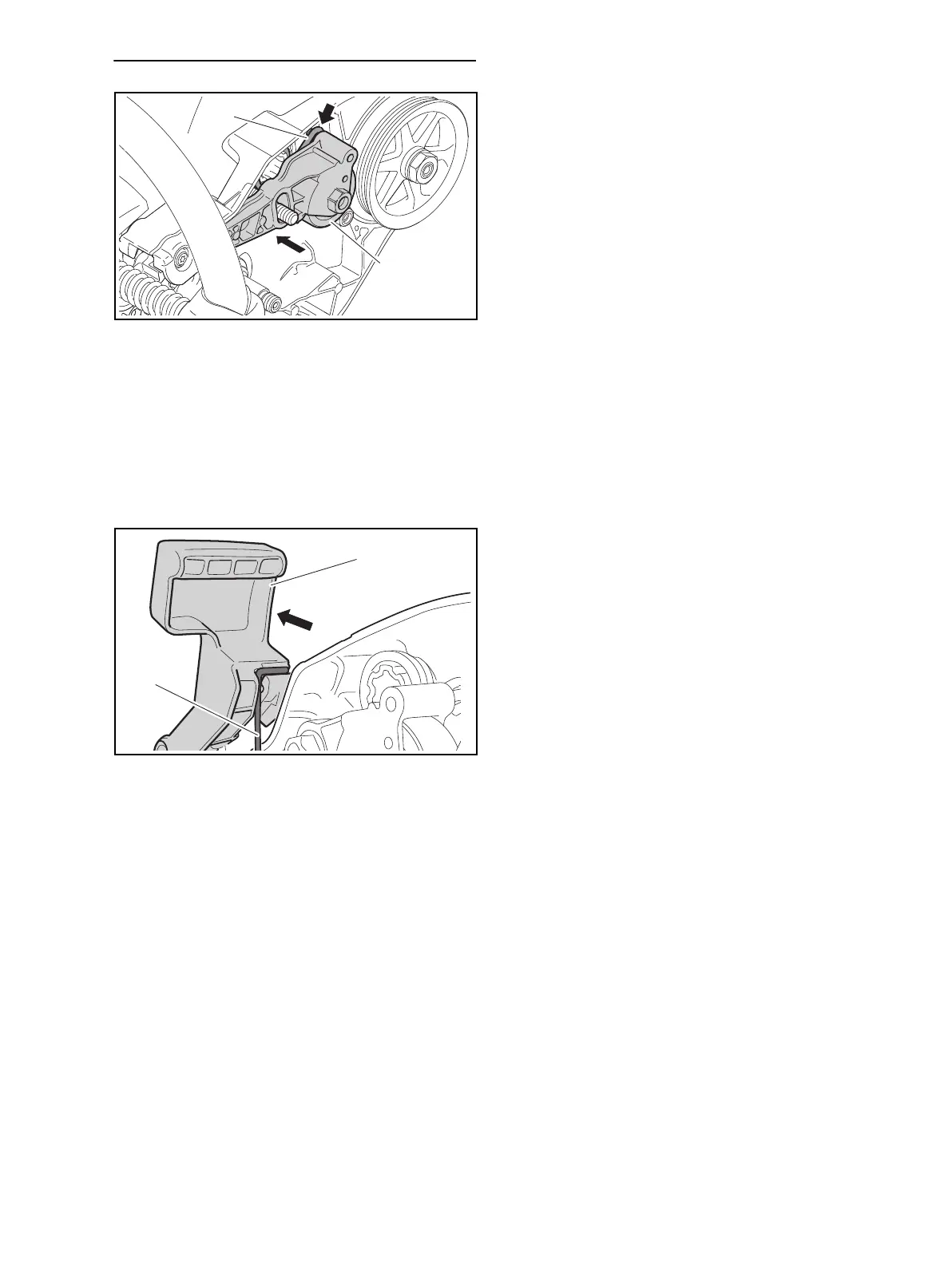

5.5 Installing the front clamping arm
N Insert torsion spring (8).
N Hook pin (arrow) into torsion spring (8).
N Slide on clamping arm (7).
N Screw on nut (6).
N Install E-clip (5).
N Turn clamping arm (7) by the hexagon
counterclockwise as far as it will go and hold.
N Tighten nut (6).
N Hook tension rod (13) onto the brake lever (9).
N Pull brake lever (9) toward the handlebar. The
tension rod (13) engages.
N Slowly release brake lever (9).
N Insert holding-down clamp (12).
N Insert screws (11) and tighten.
N Screw on and tighten nut (10).
N Install middle belt pulley, @ 6.3.
N Install the front V belt, @ 4.5.
N Install the rear V belt, @ 4.3
N Install “starter cover with rewind starter”, @ 4.3.
N Fit guard, @ 4.3.
7
0000-GXX-0439-A0
8
13
9
0000-GXX-4834-A0

Stihl TS 440 Specifications

General

Engine Power	3.2 kW
Cutting Wheel Diameter	350 mm
Maximum Cutting Depth	125 mm
Arbor Size	20 mm
Cutting Depth	125 mm
Vibration Level Left/Right Handle	3.9/3.9 m/s²
Displacement	66.7 cc
Fuel Capacity	710 cc
Fuel Tank Capacity	710 cc
