TS 44020

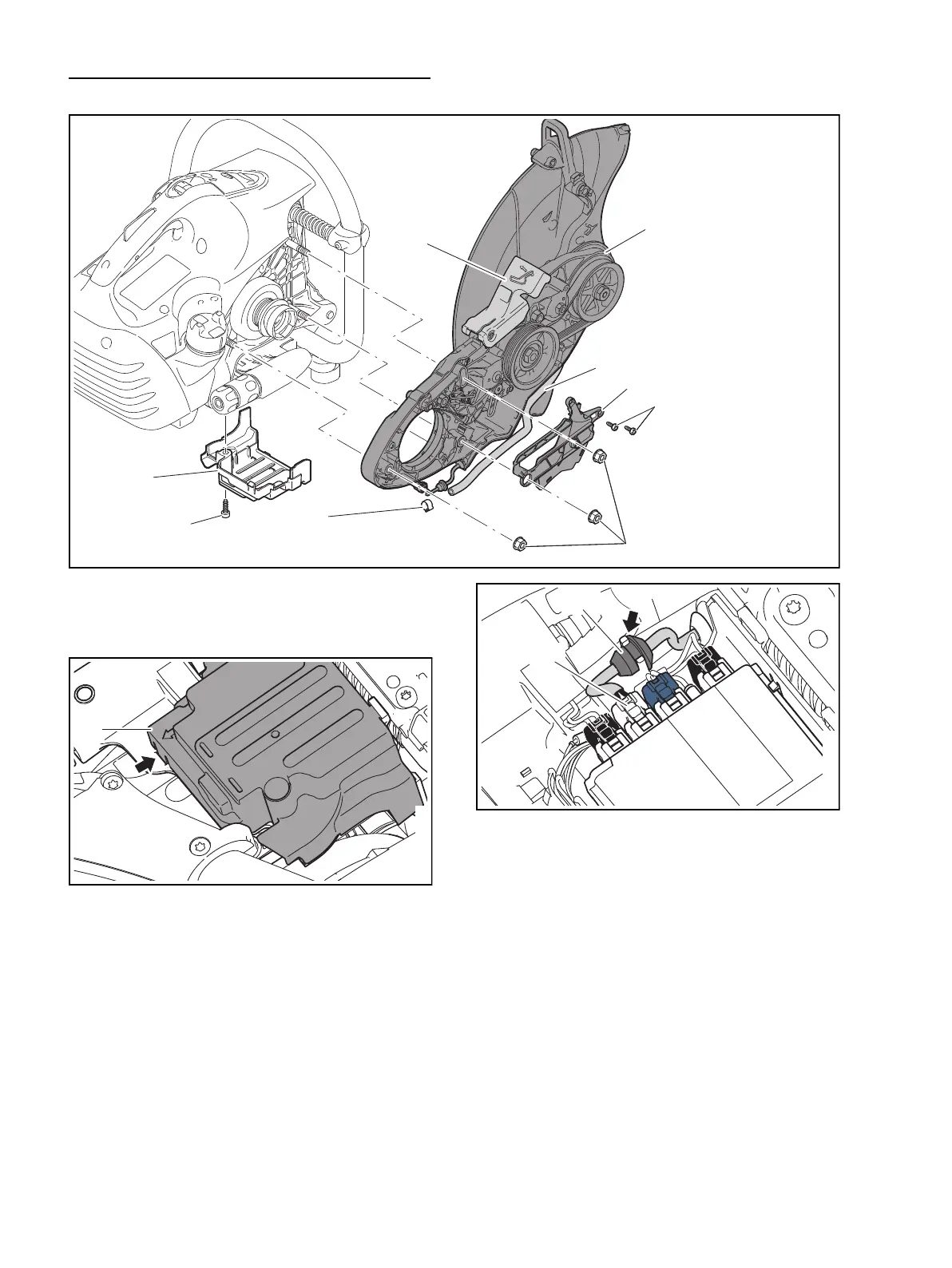

10.4 Removing the connector, brake band and brake le-
ver
N Release hose clip (8) on water connector.
N Pull off hose (9) and hose clip (8).
N Undo screw (10).
N Release cover (11) at the tab (arrow) and remove it.
N Pull out white plug (16).
N Pull grommet (17) out of the support (arrow)
N Undo the nuts (12).
N Actuate top brake lever (7) and hold it there.
N Remove connector (13) and attached parts.
N Slowly release top brake lever (7).
N Remove screws (15).
N Remove the holding-down clamp (14).
15
D4x12 (3,5 Nm / 31 lbf. in.)
13
0000-GXX-4537-A1
8
7
12
M8 (20 Nm / 177 lbf. in.)
14
11
10
P6x19 (6 Nm / 53 lbf. in.)
9
0000-GXX-4539-A0
11
0000-GXX-4540-A0
17
16

Stihl TS 440 Specifications

General

Engine Power	3.2 kW
Cutting Wheel Diameter	350 mm
Maximum Cutting Depth	125 mm
Arbor Size	20 mm
Cutting Depth	125 mm
Vibration Level Left/Right Handle	3.9/3.9 m/s²
Displacement	66.7 cc
Fuel Capacity	710 cc
Fuel Tank Capacity	710 cc
