Stihl TS 440 - 16.3 Installing the control panel

TS 440 37
N Pull grommet (11) of the white plug (12) out of the
guide rib.
N Undo screw (3).
N Remove solenoid valve (4).

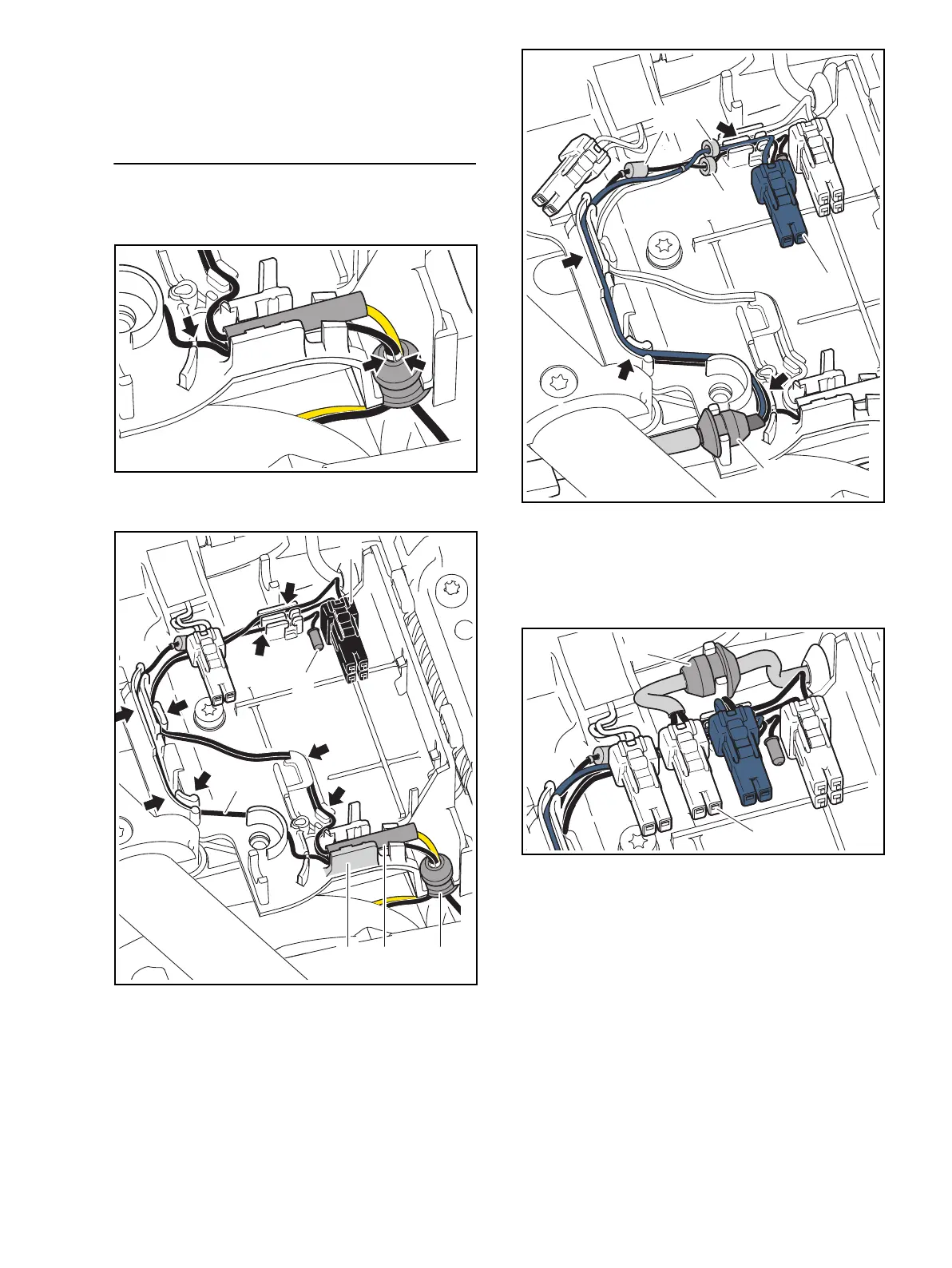

15.3 Installing the solenoid valve
N Insert solenoid valve (4).
N Insert screw (3) and tighten.
N Align the wires with the marks (arrows) before doing
the wiring.
N Press grommet (10) into guide rib.
N Press insulating hose (9) and the plug connection into
the support. The insulating hose (9) should be flush
with the guide rib (13). The black wires are routed
underneath the plug connection.
N Push the wire of the terminal socket (8) and the wires
of the black plug (7) into the guides (arrows) with the
aid of the wiring tool.
N Press grommet (6) into guide rib.
N Push the wires of the blue plug (5) into the
guides (arrows) with the aid of the wiring tool. The
blue wire must run on top of the black wire.
N Align ferrite sleeves (14, 15) as shown in the drawing.
N Push grommet (11) of the white plug (12) into the
guide rib.
N Align plug.
N Install the electronic module, @ 14.3.
N Push hose (2) and hose clip (1) onto water
connection.
N Close hose clip (1).
0000-GXX-4311-A0
0000-GXX-0462-A1
9
7
8
10
13
8
0000-GXX-0463-A1
5
6
15
15
14
0000-GXX-4312-A0
12
11
