Stihl TS 440 Service Manual

TS 440 41
17.1 Tools, aids
– Socket T27x125 – 0812 542 2104 or equivalent tool
– Torque wrench – 5910 890 0302 or equivalent tool
– Screwdriver T27x200 – 5910 890 2415 or equivalent
tool
– Wiring tool - 5910 890 4000
– STIHL press fluid – 0781 957 9000

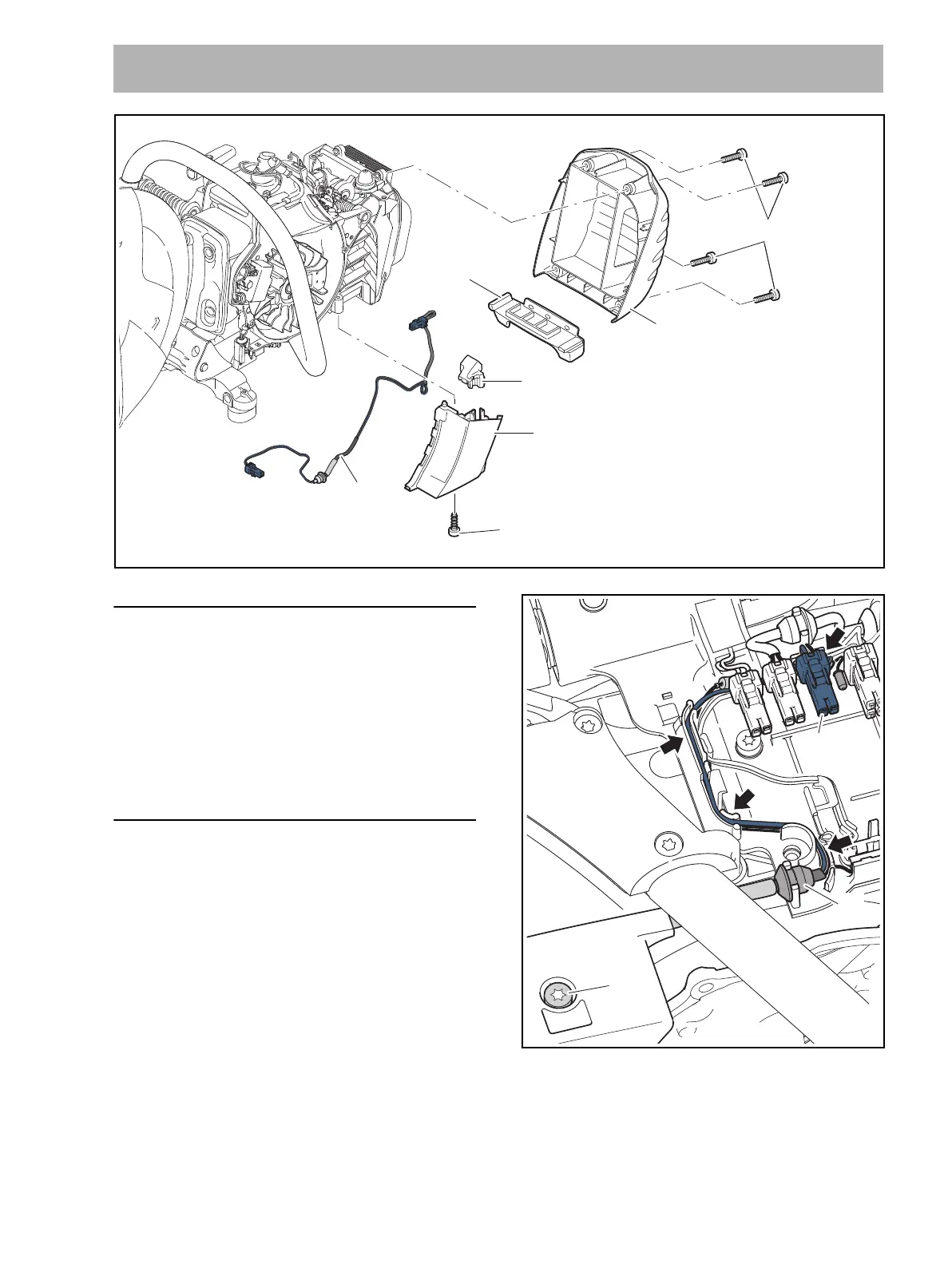

17.2 Removing control panel – electronic module wiring
harness
N Prepare for repair, @ 3.1
N Remove shroud, @ 16.2.
N Remove fan cover, @ 11.2.
N Remove electronic module, @ 14.2.
N Pull wiring harness and blue plug (7) out of the
guides (arrows).
N Pull grommet (9) out of the guide rib.
N Remove screws (1).
N Remove filter cover (2).
N Pull support foot (3) out of the the guides.
17 Cable routing
0000-GXX-0455-A2
2
6
5
3
7
4
P6x19 (6 Nm / 53 lbf. in.)
1 M5x20
(6 Nm / 53 lbf. in.)
4
7
0000-GXX-0899-A1
9

Stihl TS 440 Specifications

General

Engine Power	3.2 kW
Cutting Wheel Diameter	350 mm
Maximum Cutting Depth	125 mm
Arbor Size	20 mm
Cutting Depth	125 mm
Vibration Level Left/Right Handle	3.9/3.9 m/s²
Displacement	66.7 cc
Fuel Capacity	710 cc
Fuel Tank Capacity	710 cc
