Stihl TS 440 Service Manual

TS 440 7
5.1 Tools, aids
– Carburetor screwdriver – 0000 890 2300 or
equivalent tool
– Torque wrench – 5910 890 0312 or equivalent tool
– Socket 13 mm – 5910 893 5608 or equivalent tool
– Pliers, curved
– 13 mm box wrench, offset
– Flat screwdriver 5.5 mm
– Flex ratchet wrench
– Extension for flex ratchet wrench
5.2 Removing the rear clamping arm
N Prepare for repair, @ 3.1
N Remove guard, @ 4.2.
N Remove “starter cover with rewind starter”, @ 4.2.
N Remove the rear V belt, @ 4.2.
N Remove E–clip (1).
N Undo nut (2). The clamping arm (3) snaps downward.
N Pull off clamping arm (3) and remove torsion
spring (4).

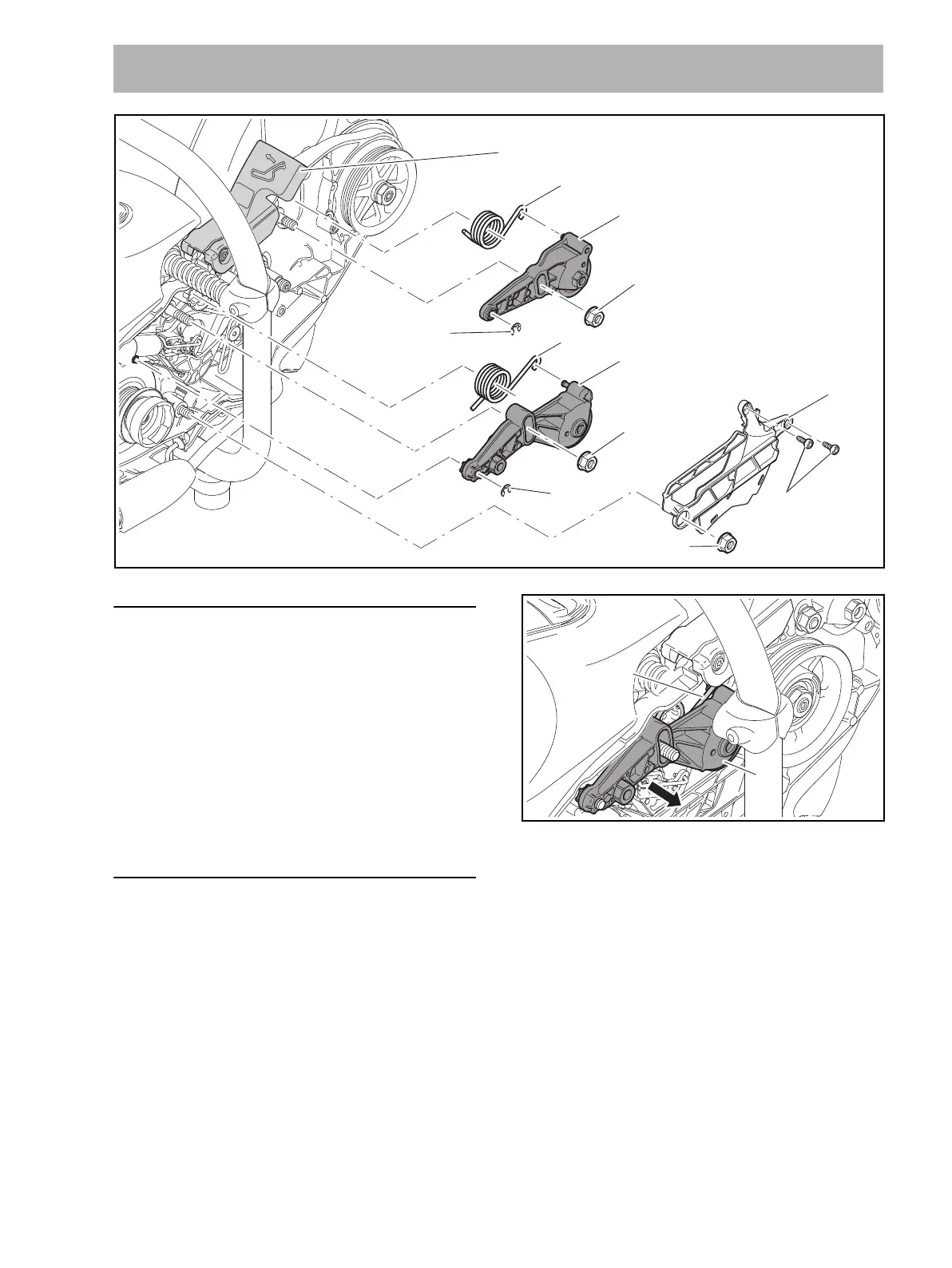

5 Clamping arms
12
0000-GXX-0434-A2
8
7
6
M8 (20 Nm / 177 lbf. in.)
4
3
2 M8 (20 Nm /
177 lbf. in.)
9
5
1
11
D4x12 (3,5Nm /
31 lbf. in.)
M8 (20 Nm / 177 lbf. in.)
10
3
0000-GXX-0435-A1
4

Stihl TS 440 Specifications

General

Engine Power	3.2 kW
Cutting Wheel Diameter	350 mm
Maximum Cutting Depth	125 mm
Arbor Size	20 mm
Cutting Depth	125 mm
Vibration Level Left/Right Handle	3.9/3.9 m/s²
Displacement	66.7 cc
Fuel Capacity	710 cc
Fuel Tank Capacity	710 cc
