Stihl TS 440 Service Manual

TS 44014
8.1 Tools, aids
– Carburetor screwdriver – 0000 890 2300 or
equivalent tool
– Socket T27x125 – 0812 542 2104 or equivalent tool
– Torque wrench – 5910 890 0302 or equivalent tool
– Screwdriver T27x200 – 5910 890 2415 or equivalent
tool
– Loctite 242 (thread-locking adhesive, medium
strength) – 0786 111 2101

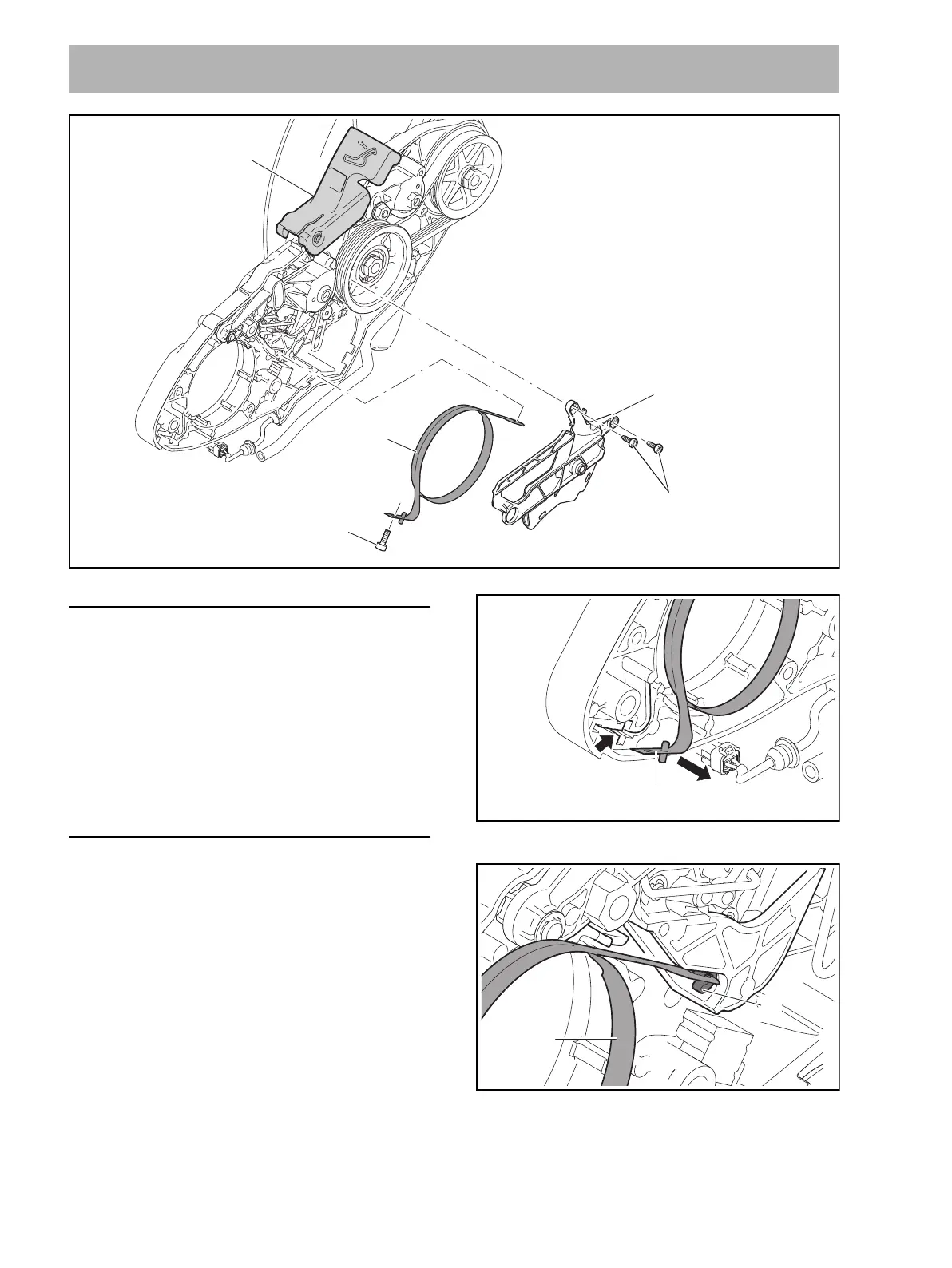

8.2 Removing the brake band
N Prepare for repair, @ 3.1
N Remove guard, @ 4.2.
N Remove “starter cover with rewind starter”, @ 4.2.
N Remove the rear V belt, @ 4.2.
N Remove connector, @ 7.2.
N Remove screws (1).
N Remove the holding-down clamp (2).
N Undo screw (3).
N Pry brake band (4) out of the support (arrow).
N Actuate the brake lever (5) and hold it there.
N Lift brake band (4) out of guide.
N Detach brake band (4) from lever (6) and remove it.
N Slowly release brake lever (5).
8 Brake band
0000-GXX-0447-A2
4
5
2
M4x12 (3 Nm / 26 lbf. in.)
3
1 D4x12
(3,5 Nm / 31 lbf. in.)
0000-GXX-0471-A0
4
0000-GXX-0472-A1
4
6

Stihl TS 440 Specifications

General

Engine Power	3.2 kW
Cutting Wheel Diameter	350 mm
Maximum Cutting Depth	125 mm
Arbor Size	20 mm
Cutting Depth	125 mm
Vibration Level Left/Right Handle	3.9/3.9 m/s²
Displacement	66.7 cc
Fuel Capacity	710 cc
Fuel Tank Capacity	710 cc
