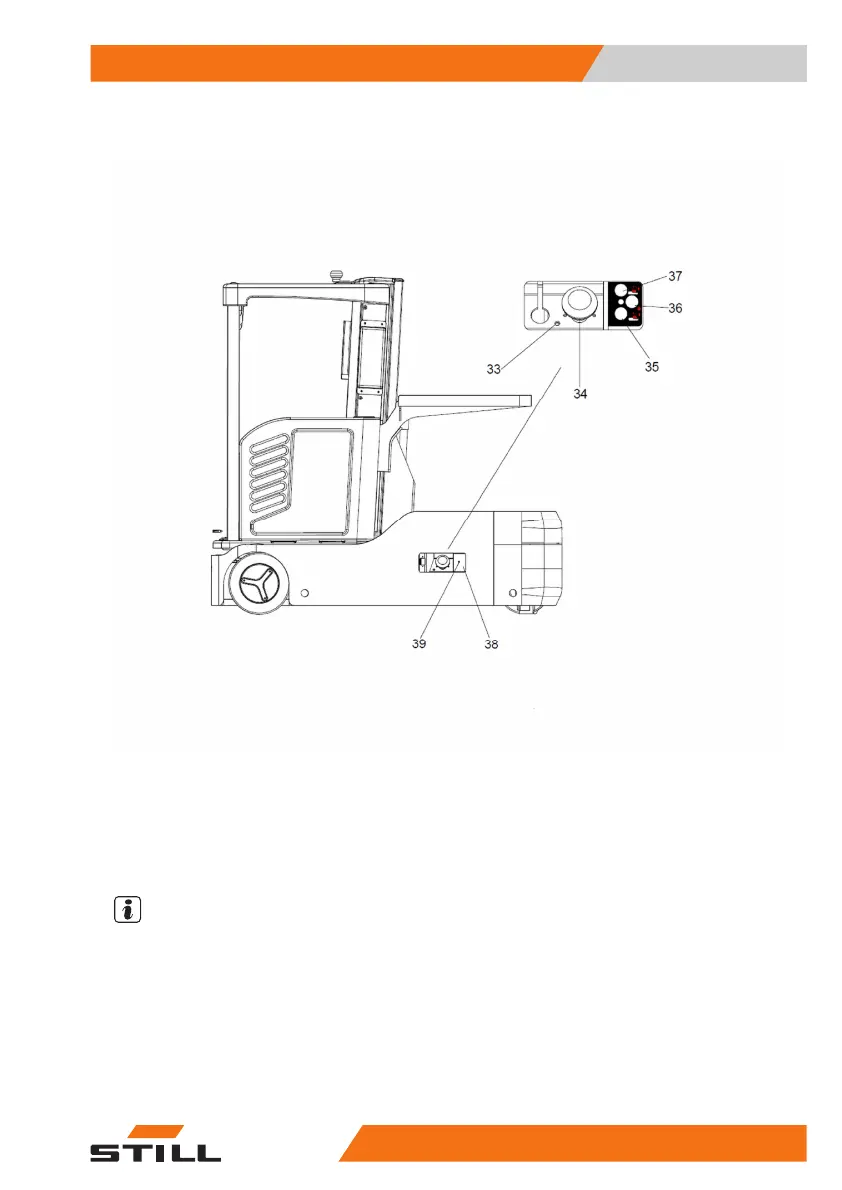

Emergency operation area
LED Lamp
Emergency stop switch
"Lowering" button
Low control
33
34
35
36
"Lifting" button
cover
screw
37
38
39
NOTE
Unscrew the screw (39), remove the cover
(38). “Lowering” button, “Lower”and “Lifting”
button will show up. These controls are not
for the operator but only for trained and au-
thorized service technicians. After every main-
tenance or repair work the cover must be
screwed on again.
Overview
3
Control elements
535091 801 1525EN-12/2022 - 06
