Battery removal and installation
Park the truck securely and turn off the power
before removal and installation of the battery.
WARNING
– 1、The truck must be parked on level ground. To
prevent short circuits, batteries with exposed ter-
minals or connectors must be covered with a rub-
ber mat. Place the battery connector or the battery
cable in such a way that they will not get caught
on the tractor when the battery is withdrawn.
– 2、When transporting batteries with the aid of a
crane, ensure that the crane is of adequate ca-
pacity (the battery weight is indicated on the bat-
tery identification plate at the battery trough). The
lifting gear must exert a vertical pull so that the
battery container is not compressed. Attach the
hooks to the battery hand(or battery strap) in such
a way that the lifting gear, when slack, cannot
collapse on the battery cells.
– 3、When removing the battery make sure it does
not get caught on the battery panel, causing the
tractor to tip over.
– 4、After installing the battery, check all cables
and plug connections for visible signs of damage.
Ensure that the battery is firmly secured in the
tractor to prevent any damage caused by sudden
movements of the tractor. Whenever you replace
the battery make sure it cannot slide. The battery
cover must be securely closed and locked.

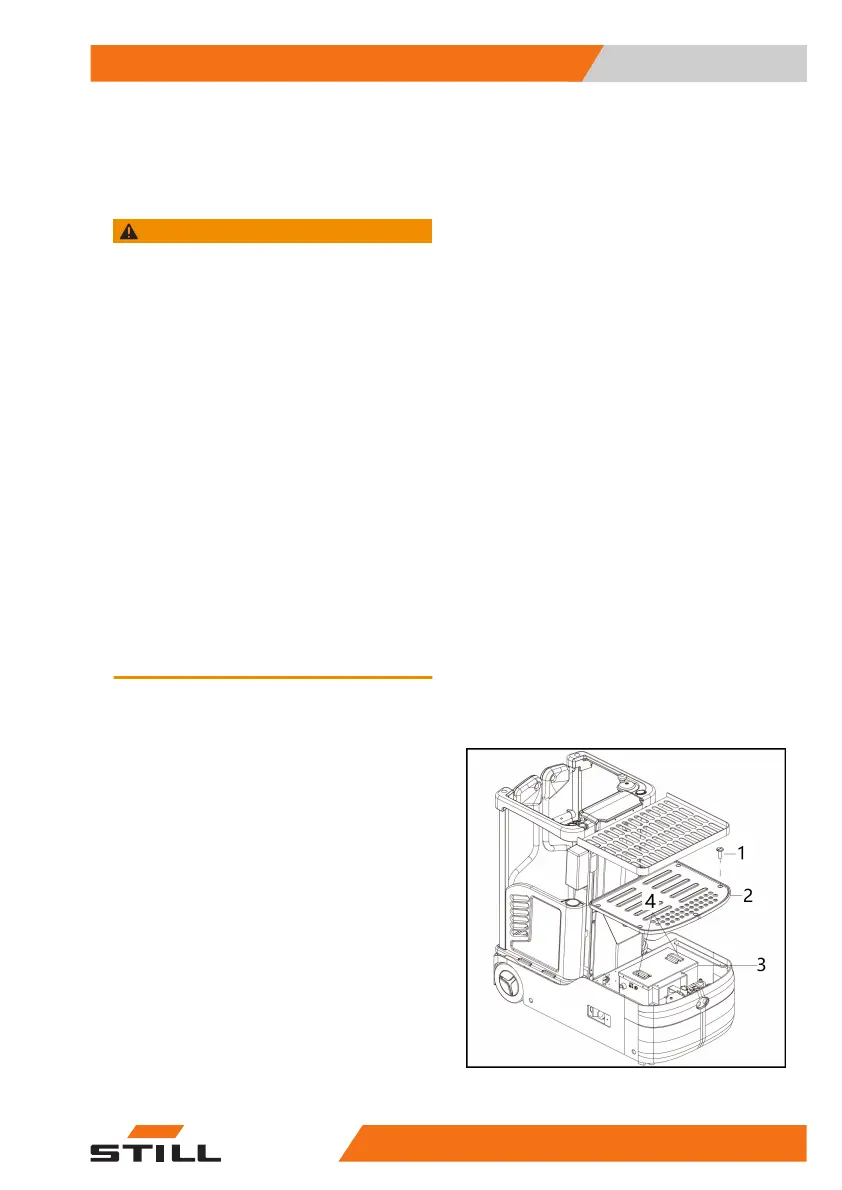

Battery removal:
– Take off the five screws(1) and the front
cover (2).
– Expose the battery(3), disconnect the har-
ness write. Attach the hooks to the battery
hand(or battery strap).
– Attach the hooks to the battery handle(lifting
points)(4).
– Carefully lift the battery out of the truck.
Install according to the reverse order of re-
moval.
