Stonex S900
+
GNSS Receiver – User Manual 9

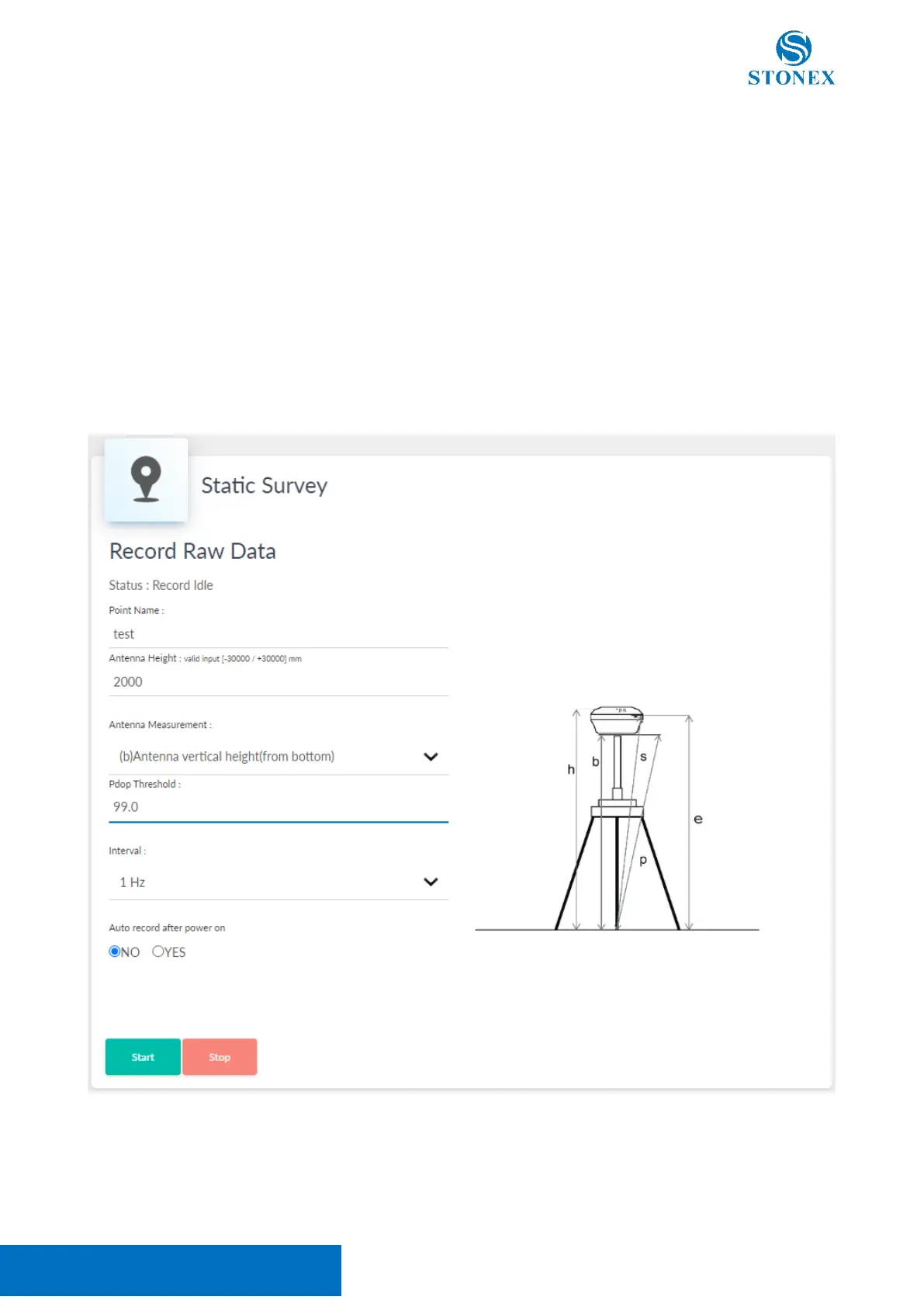

3.3 Static Survey
S900
+
it’s able to record raw data even while working as a rover or base, in this page is possible to set the option
for raw data recording. Before changing any setting be sure that the device is not recording.
The name can contain at maximum 4 characters, the antenna height can be measured with five different
methods explained by the picture. Select the correct method so that the phase center offset is applied correctly.
Enabling “auto record after power on” will cause the receiver to start to record as soon as the PDOP value is
lower than the threshold.
To save the settings press Start.
