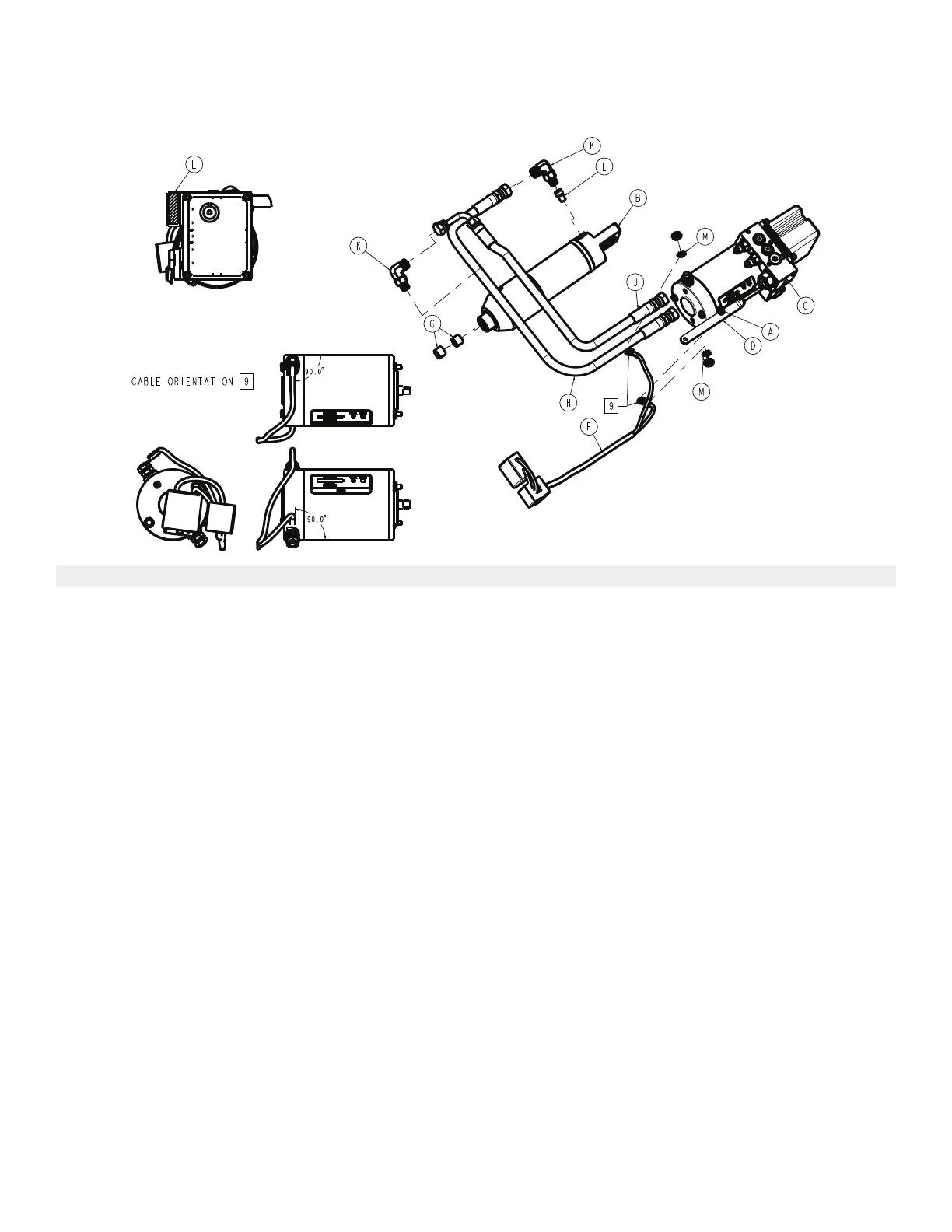

HHyyddrraauulliiccss aasssseemmbbllyy
6390-001-039 Rev AB (Reference only)
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0016-102-000 Nylock hex nut 1
B 6390-001-029 Hydraulic cylinder 1
C 6390-101-038
Manifold assembly
(page 104) 1
D 6390-001-167 Manual release link 1
E 6390-001-381 Velocity fuse 1
F 6390-101-431 Motor cable 1
G 6390-001-433 Inner rod bearing 2
H 6390-001-436 Hydraulic hose, cap end 1
J 6390-001-437 Hydraulic hose, rod end 1
K 6500-001-297 Cylinder rod side hose fitting 2
L NA Label 1
M 0013-038-000 External tooth lock washer 2
6390-309-002 Rev AB.0 103 EN
