4. Lift up on the trolley communication board (A) to remove (Figure 27). Discard the communication board.
NNoottee -- Do not dispose of as unsorted municipal waste. Refer to your local distributor for return and/or collection systems
available in your country.
5. Reverse steps to reinstall.
6. Verify proper operation before you return the product to service.

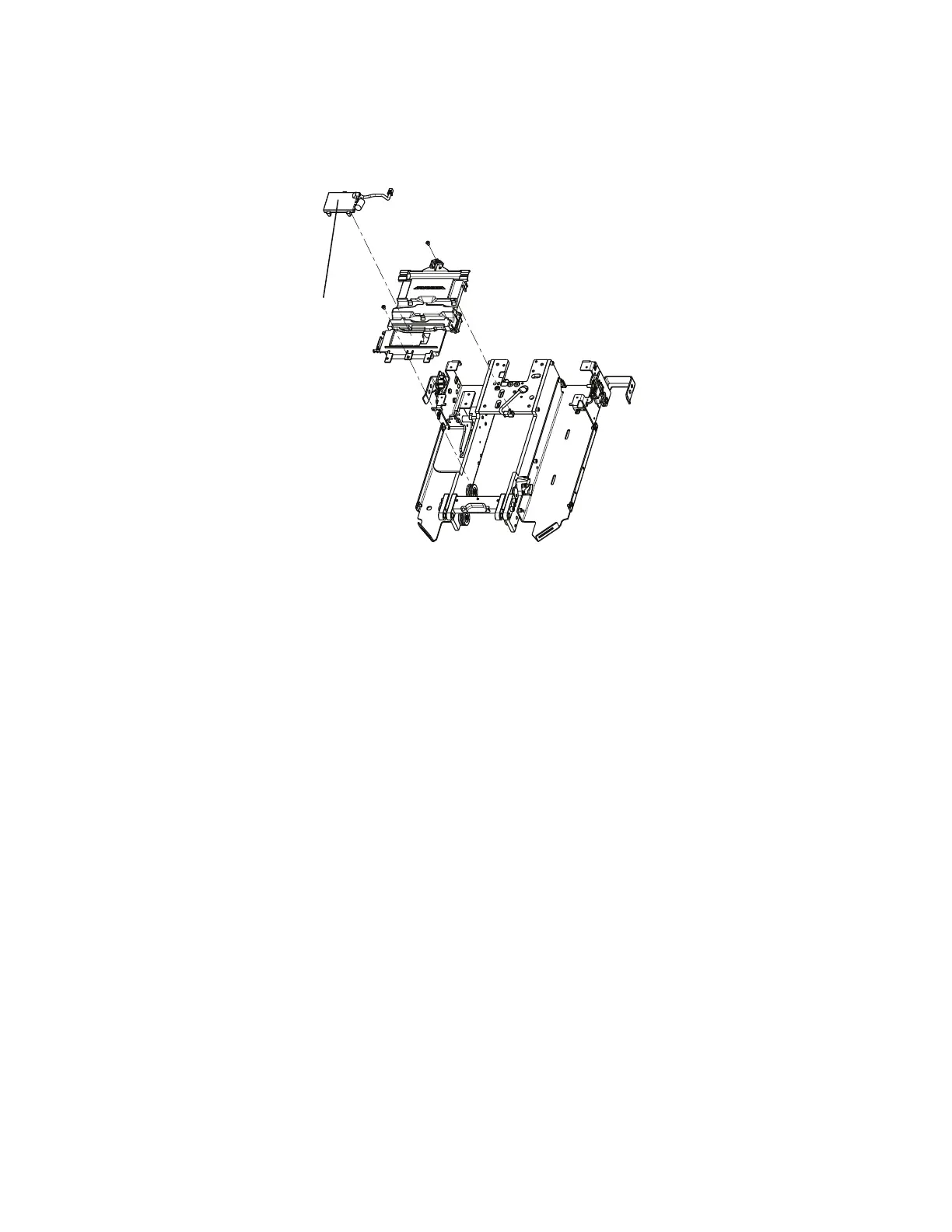

A
FFiigguurree 2277 –– CCoommmmuunniiccaattiioonn bbooaarrdd aasssseemmbbllyy
IInndduuccttiivvee ccooiill rreeppllaacceemmeenntt
TToooollss rreeqquuiirreedd::
• 5/32" hex wrench
• 3/16" hex wrench
• T25 Torx driver
PPrroocceedduurree::
1. Remove the manual release button assembly. See
Manual release button assembly removal and replacement (page
37).
2. Using a 5/32" hex wrench, remove the screw (A) that secures the inductive coil assembly to the frame (Figure 28).
3. Using a 3/16" hex wrench, remove the screw (B) that secures the inductive coil assembly to the frame (Figure 28).
4. Remove the cover (C) (Figure 28). Save for reinstallation.
EN 46 6390-309-002 Rev AB.0
