Stryker Power-LOAD 6390 Maintenance Manual

A
B

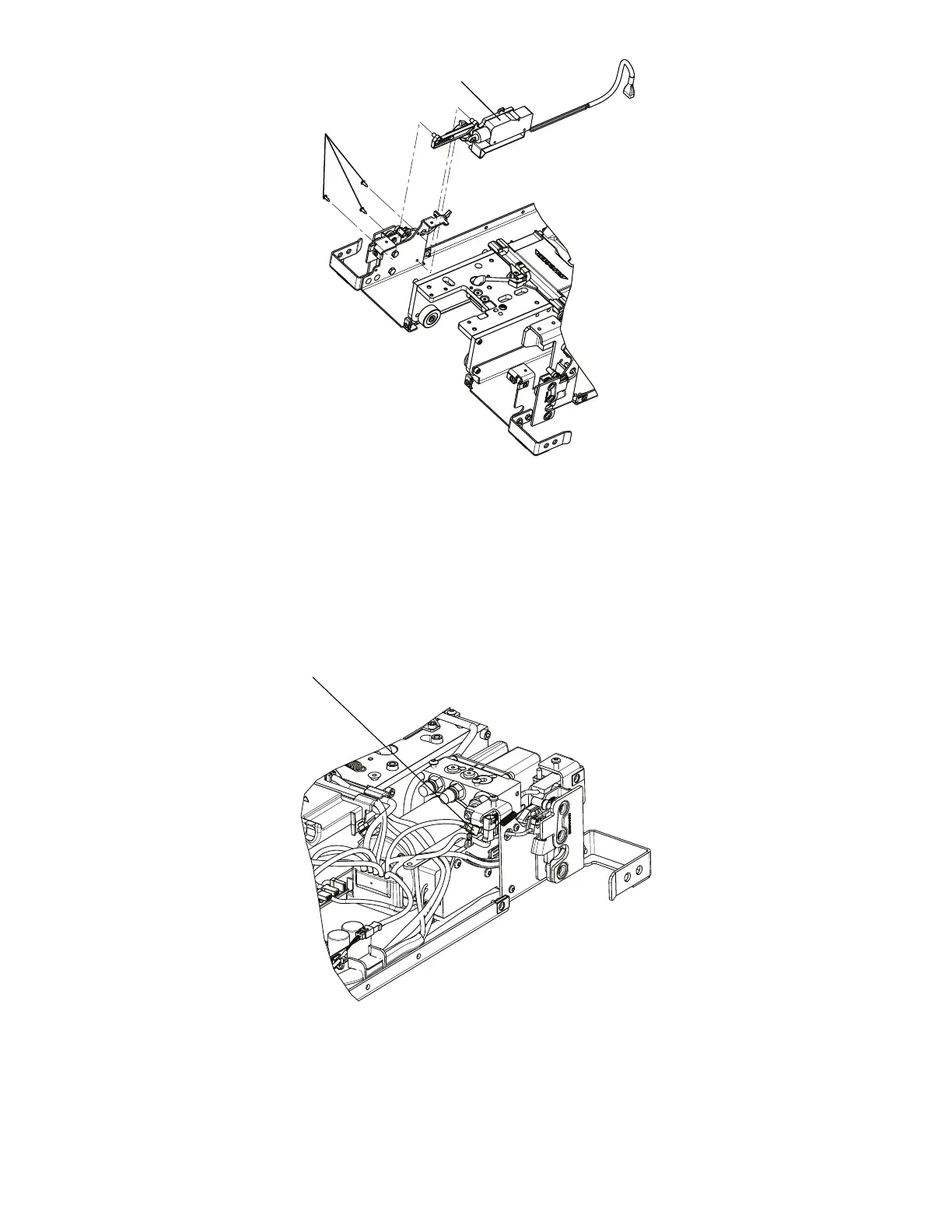

FFiigguurree 1199 –– TTrroolllleeyy aaccttuuaattoorr aasssseemmbbllyy
3. Unplug the cable (C) from the trolley actuator to the main cable assembly (Figure 20).
4. Pull the actuator out and up toward the trolley control board to remove.
5. Reverse steps to reinstall.
NNoottee -- Make sure that the cables are seated and routed correctly.
6. Verify proper operation before you return the product to service.
C
FFiigguurree 2200 –– MMaaiinn ccaabbllee aasssseemmbbllyy
HHyyddrraauulliiccss aasssseemmbbllyy rreemmoovvaall aanndd rreeppllaacceemmeenntt
TToooollss rreeqquuiirreedd::
• T25 Torx driver
6390-309-002 Rev AB.0 41 EN
