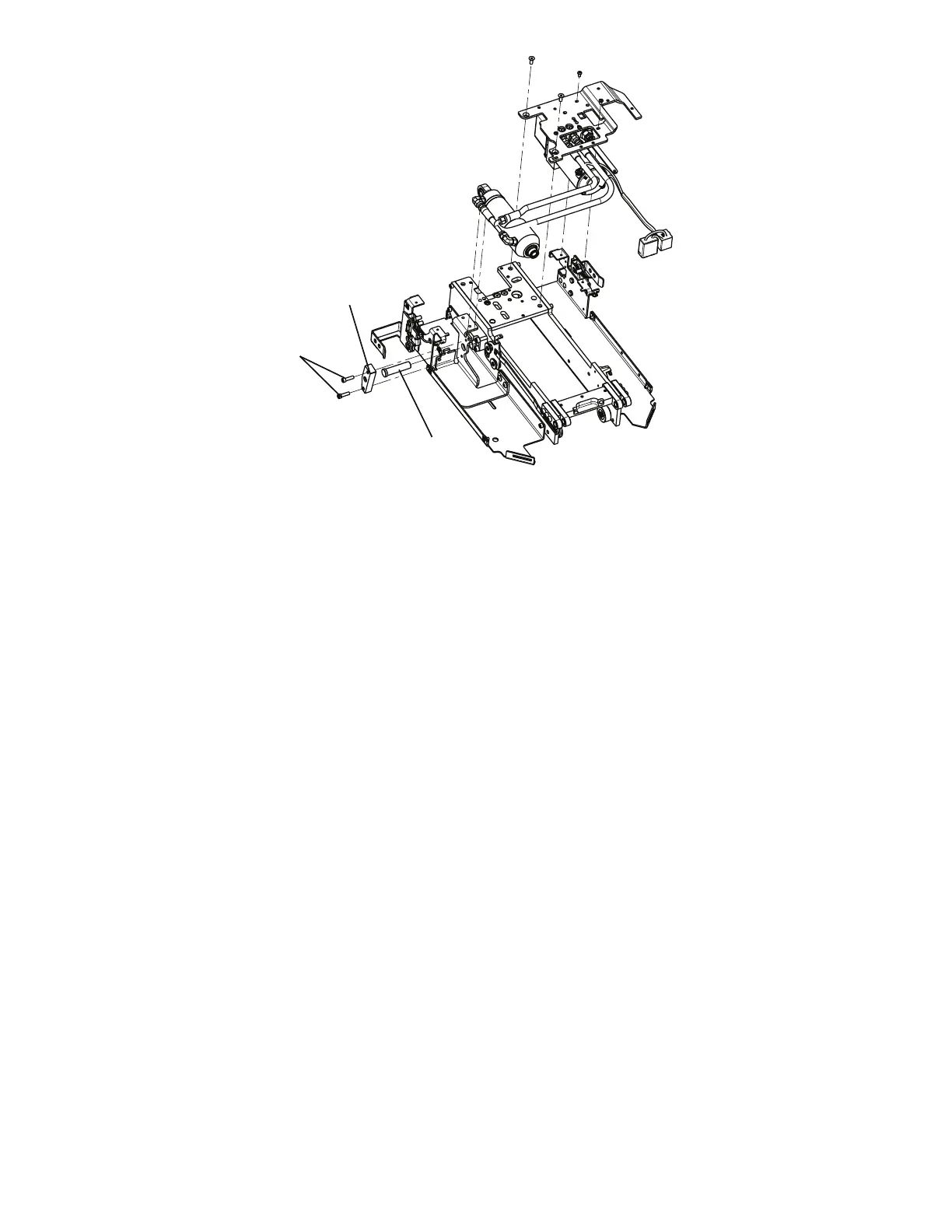

FFiigguurree 2244 –– PPiinn aanndd hhyyddrraauulliicc ccyylliinnddeerr rreemmoovvaall
13.Remove the hydraulics assembly and properly discard.
NNoottee -- Do not dispose of as unsorted municipal waste. Refer to your local distributor for return or collection systems
available in your country.
14.Reverse steps to reinstall.
15.Verify proper operation before you return the product to service.
HHyyddrraauulliicc ccyylliinnddeerr rroodd eenndd rreeppllaacceemmeenntt
TToooollss rreeqquuiirreedd::
• 1/4'' hex wrench
• 1/2'' combination wrench
• Diagonal pliers
PPrroocceedduurree::
1. Pull the trolley assembly out of the patient compartment until it locks into the loading position.
2. Remove the trolley covers. See
Cover removal and replacement
(page 35).
3. Press the main power button to turn the product off.
4. Using a 1/4" hex wrench and a 1/2" combination wrench, remove the end cap cylinder pin (A) and nut (B) (Figure 25).
EN 44 6390-309-002 Rev AB.0
