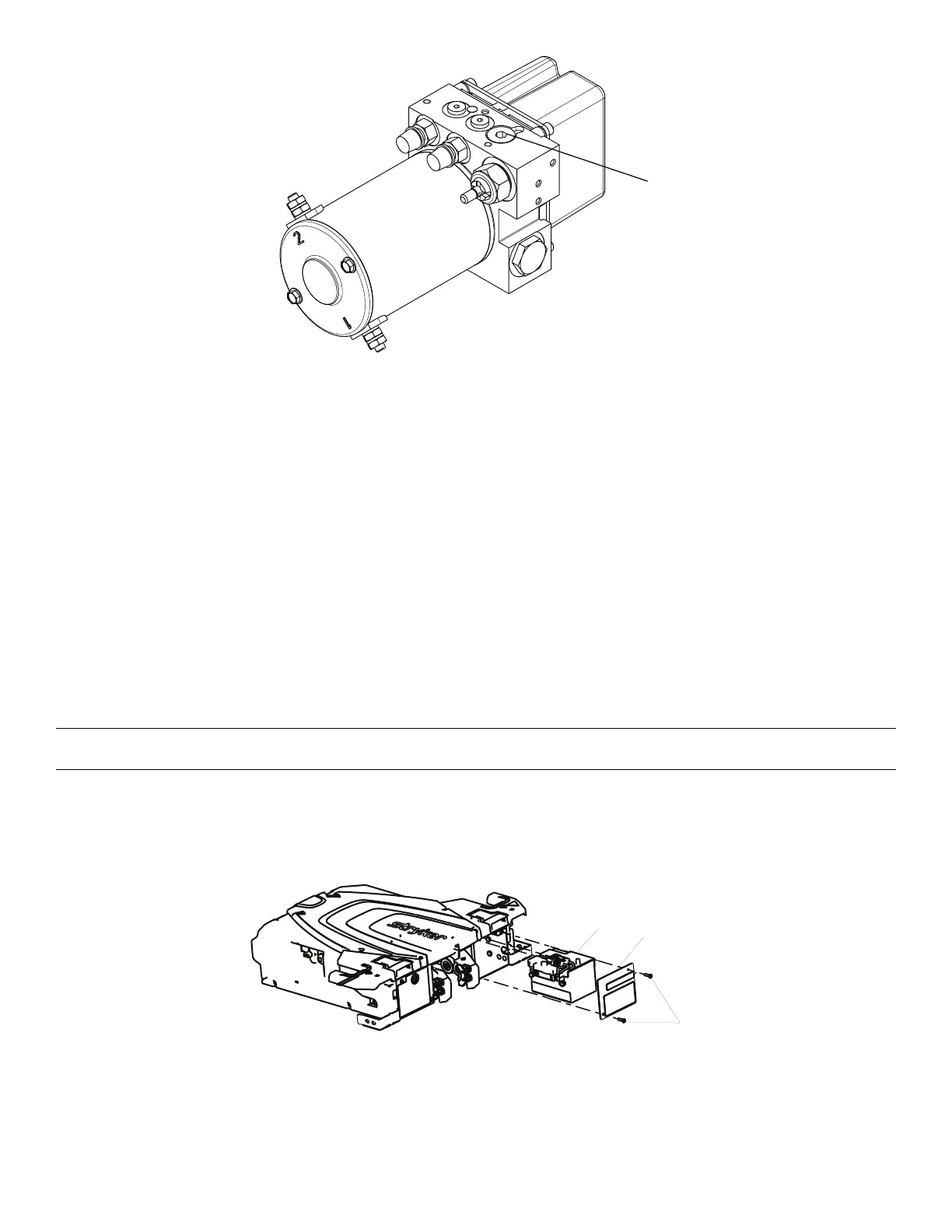

FFiigguurree 4444 –– HHeexx pplluugg llooccaattiioonn
5. Using the needle nose pliers, remove and discard the pressure compensated flow control valve.
6. Install the replacement pressure compensated flow control valve.
NNoottee -- Install the O-ring side of the valve down into the port.
7. Reverse steps to reinstall.
8. Check the fluid level before you return the product to service. See
Filling the reservoir
(page 60).
9. Verify proper operation before you return the product to service.
BBaatttteerryy rreeppllaacceemmeenntt
TToooollss rreeqquuiirreedd::
• T25 Torx driver
PPrroocceedduurree::
CCAAUUTTIIOONN -- Do not touch the negative and positive battery terminals together on any metal surface when you replace the
battery.
1. Press the main power button to turn the product off.
2. Using a T25 Torx driver, remove the two button head cap screws (A) that secure the rear trolley plate cover (B) to the
trolley frame (Figure 45). Remove the cover. Save the screws.
3. Pull to remove the battery housing assembly (C) (Figure 45).
FFiigguurree 4455 –– BBaatttteerryy hhoouussiinngg ccoommppoonneennttss
4. Remove and discard the battery.
6390-309-002 Rev AB.0 59 EN
