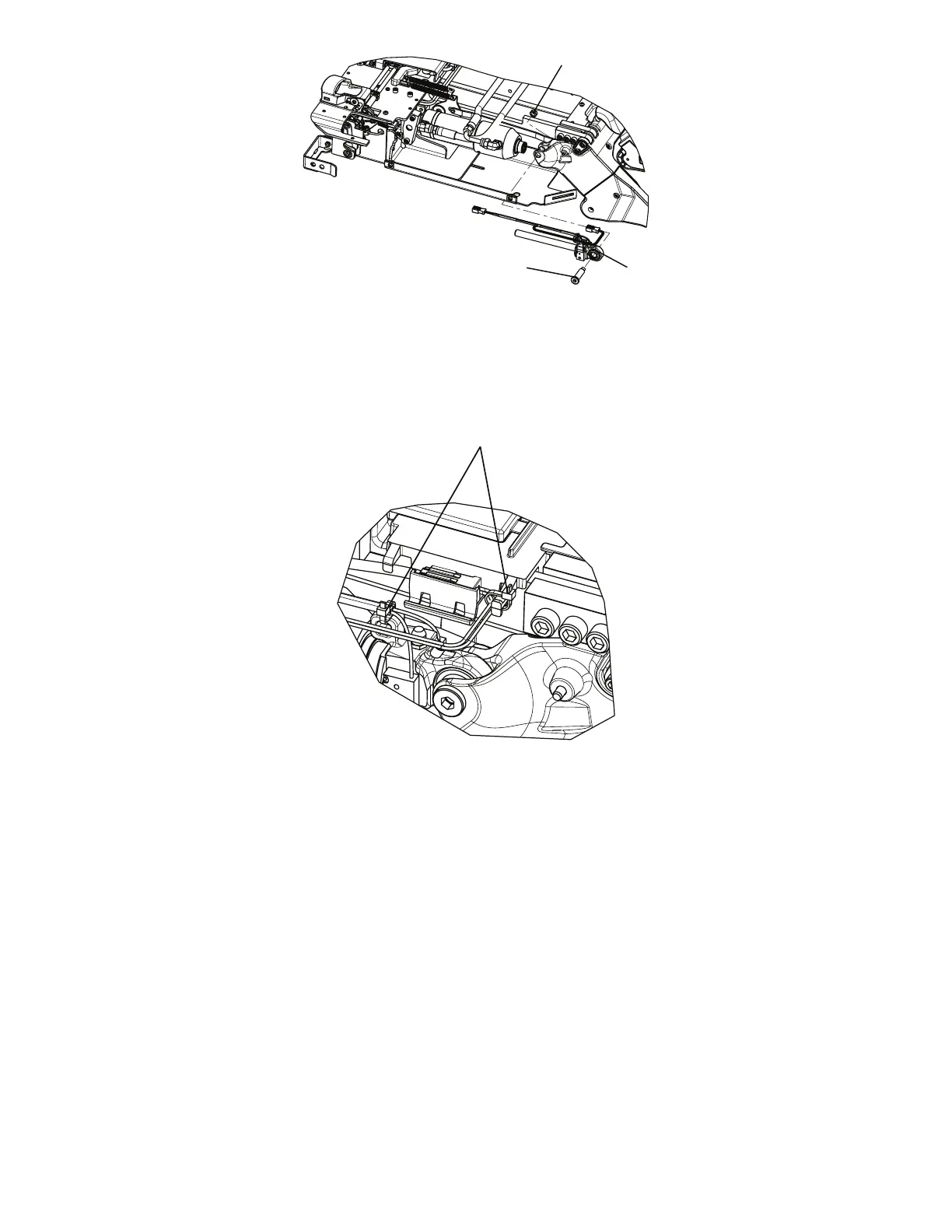

FFiigguurree 2255 –– HHyyddrraauulliicc ccyylliinnddeerr rroodd eenndd aasssseemmbbllyy
5. Using diagonal pliers, cut the cable ties (D) that secure the hydraulic cylinder rod end assembly cable to the plastic
cover (Figure 26).
NNoottee -- Pay attention to the location of all cable ties for reinstallation.
FFiigguurree 2266 –– CCaabbllee ttiieess llooccaattiioonn
6. While lifting up on the cylinder, pull the hydraulic cylinder rod end assembly (C) out and discard (Figure 25).
7. Reverse steps to reinstall.
8. Verify proper operation before you return the product to service.
CCoommmmuunniiccaattiioonn bbooaarrdd rreeppllaacceemmeenntt
TToooollss rreeqquuiirreedd::
• Diagonal pliers
PPrroocceedduurree::
1. Pull the trolley assembly out of the patient compartment until it locks into the loading position.
2. Remove the trolley covers. See
Cover removal and replacement
(page 35).
3. Using diagonal pliers, cut the cable tie that secures the hydraulic cylinder rod end assembly cable to the plastic cover.
NNoottee -- Pay attention to the location of all cable ties for reinstallation.
6390-309-002 Rev AB.0 45 EN
