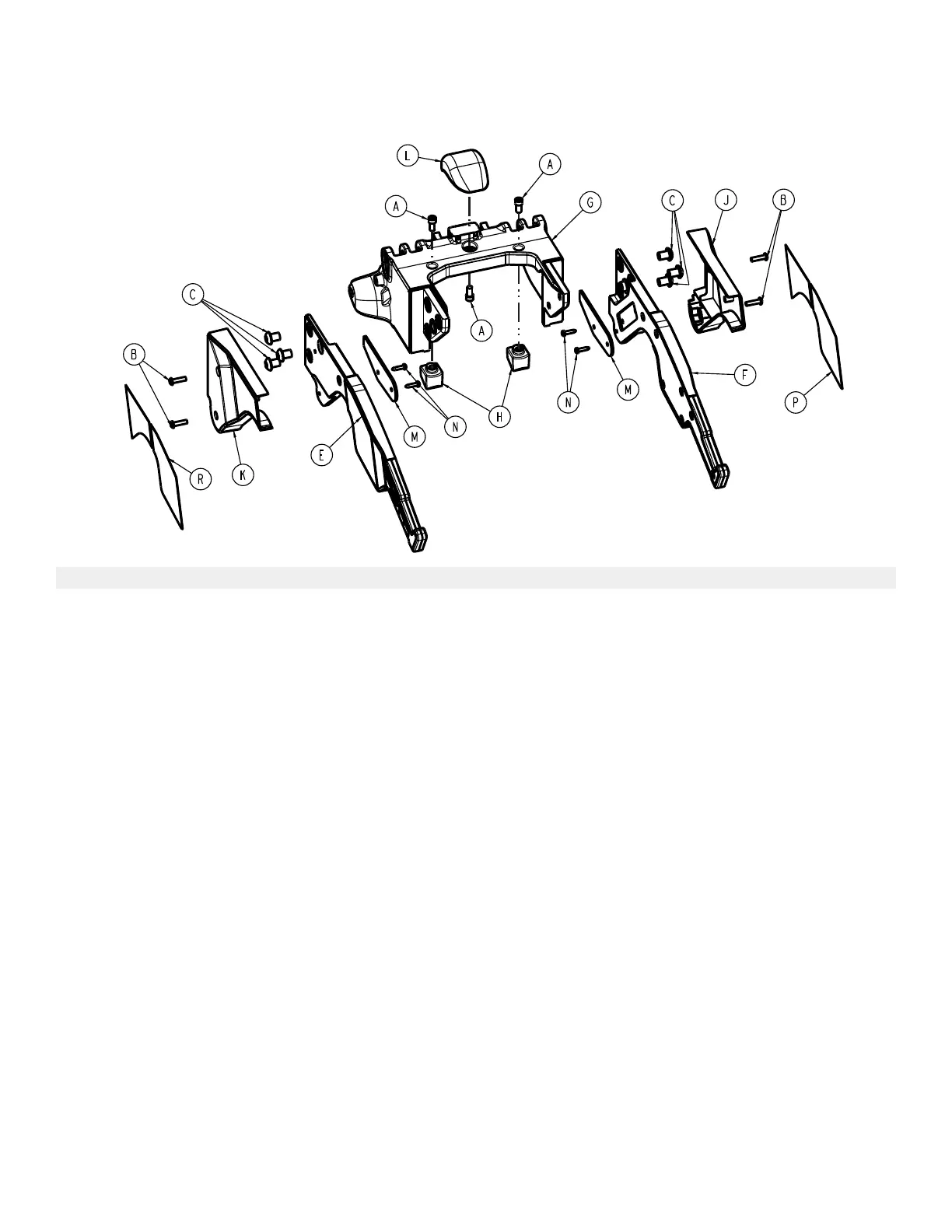

TTrroolllleeyy aarrmm aasssseemmbbllyy
6390-001-016 Rev AB (Reference only)
Torque item C
to 47±7 ft-lb
Torque item C
to 47±7 ft-lb
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0004-660-000 Socket head cap screw 3
B 0004-666-000 Button head cap screw 4
C 0004-668-000 Button head cap screw 6
E 6390-001-036
Arm, right
(page 110) 1
F 6390-001-037
Arm, left
(page 109) 1
G 6390-001-305 Middle arm 1
H 6390-001-322 Mid position bumper lock block 2
J 639000011372 Arm cover, head end, left 1
K 639000011371 Arm cover, head end, right 1
L 6390-001-440 Trolley cot ramp 1
M 6390-001-486 Arm cover guard, head end 2
N 0023-162-000 Delta screw 4
P 639000010410 Label, arm cover, left 1
R 639000010411 Label, arm cover, right 1
EN 108 6390-309-002 Rev AB.0
