Stryker Power-LOAD 6390 Maintenance Manual

D
E

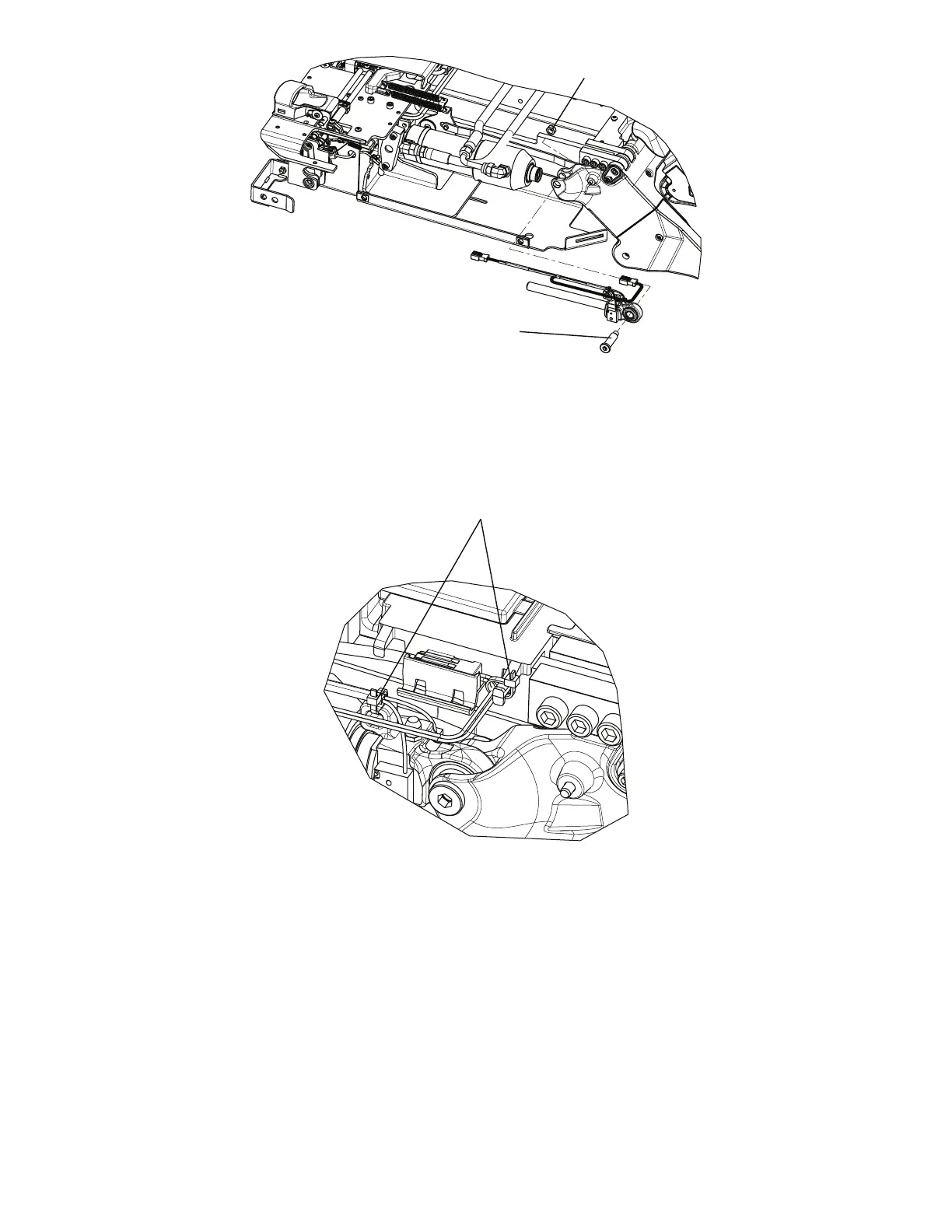

FFiigguurree 2222 –– EEnndd ccaapp ccyylliinnddeerr ppiinn aanndd nnuutt llooccaattiioonnss
9. Using diagonal pliers, cut the cable ties (F) that secure the hydraulic cylinder rod end assembly cable to the plastic cover
(Figure 23).
NNoottee -- Pay attention to the location of all cable ties for reinstallation.
F
FFiigguurree 2233 –– CCaabbllee ttiieess llooccaattiioonn
10.While lifting up on the cylinder, pull the hydraulic cylinder rod end assembly out. Save the hydraulic cylinder rod end
assembly for reinstallation.
11.Using a 3/16" hex wrench, remove the two screws (G) that secure the pin bracket (H) to the trolley (Figure 24).
12.Remove the pin (I) and lift the hydraulic cylinder out (Figure 24).
6390-309-002 Rev AB.0 43 EN
