Stryker SV1 Service Manual

58 SM-7100 REV 01 www.stryker.com
Service
Lower leg section locking mechanism replacement (Continued)

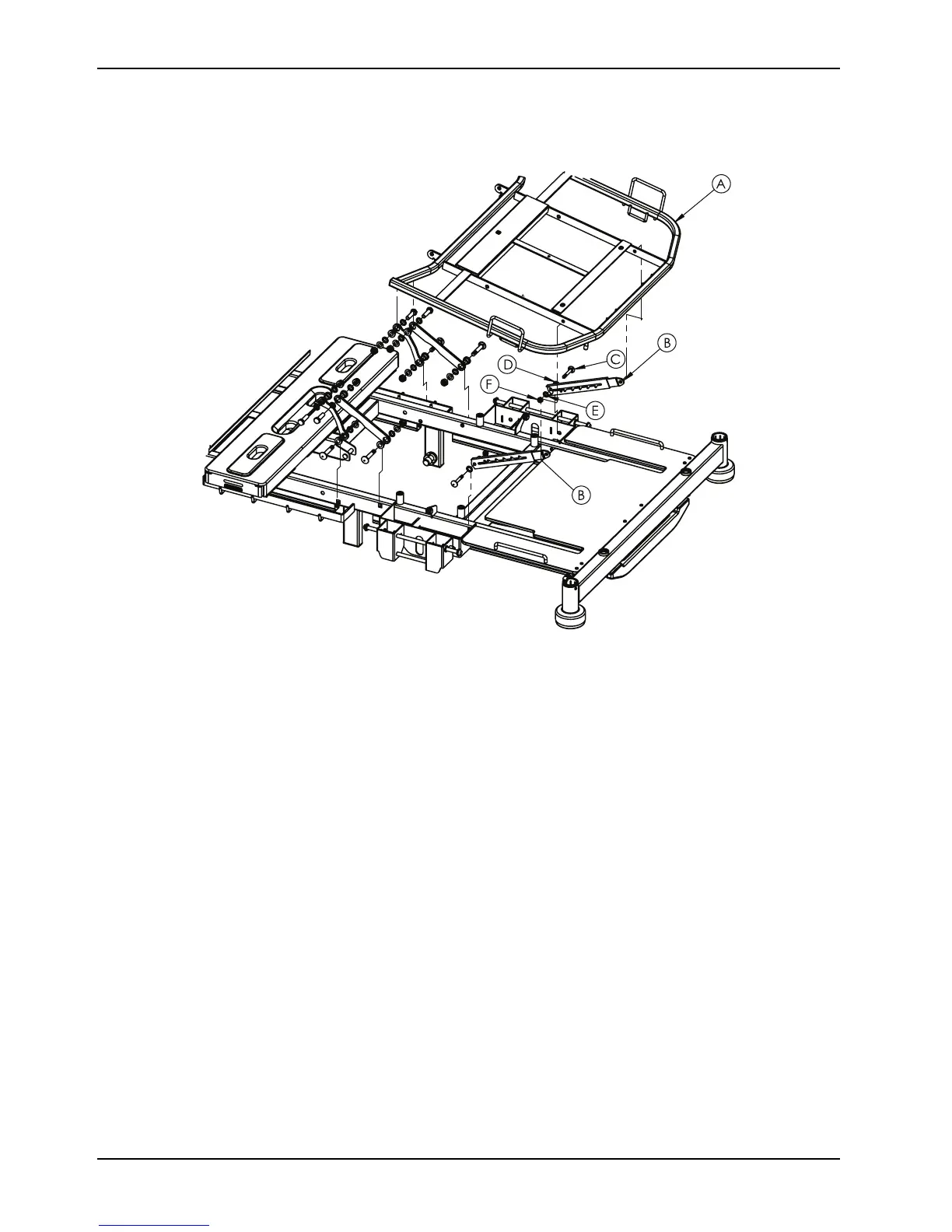

Figure 11: Lower leg section locking mechanism
Patient control pendant replacement
Tools required:
• Diagonal pliers
Procedure:
1. Apply the brakes.
2. Raise the product to the highest height position.
3. Power down the bed and unplug the power cord from the wall outlet.
4. Remove the three cable routing covers that secure the gatch (legrest) actuator cable to the litter frame.
5. Cut the cable tie that secures the pendant to the bottom of the litter frame.
6. Unplug the patient control pendant cable from the junction box.
7. Dispose of the patient control pendant.
8. Reverse steps to reinstall.
9. Verify proper operation of the product before returning it to service.
Nurse control pendant replacement
Tools required:
• Diagonal pliers
