Battery replacement (Continued)
7. Remove the battery.
8. Dispose of the battery according to local laws and procedures.
9. Reverse steps to reinstall.
10. Verify proper operation of the product before returning it to service.

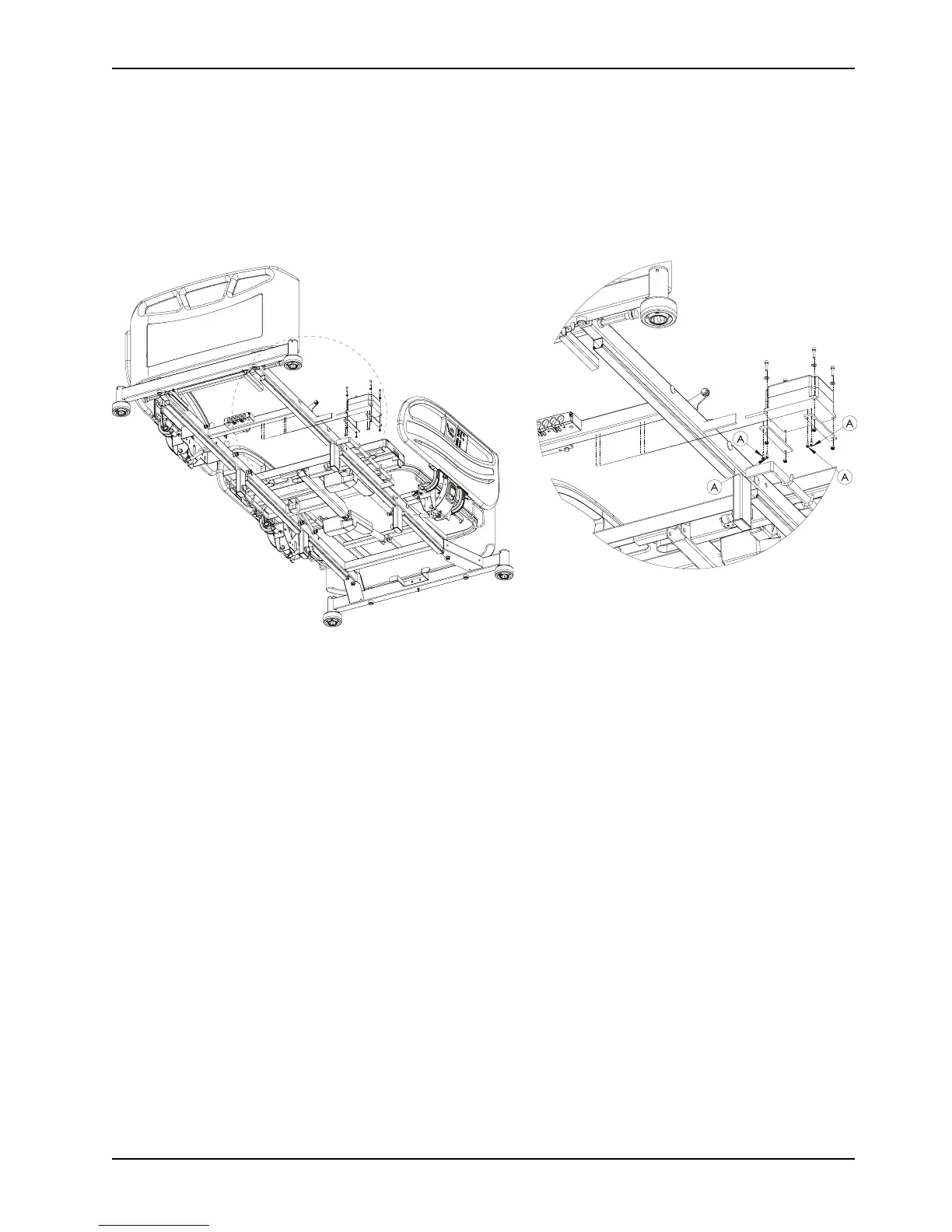

Figure 13: Battery
Power cord replacement
Tools required:
• Diagonal pliers
• Small flat screwdriver
Procedure:
1. Apply the brakes.
2. Raise the product to the highest height position.
3. Power down the bed and unplug the power cord from the wall outlet.
4. Remove the three cable routing covers that secure the power cord to the litter frame.
5. Using diagonal pliers, cut the five cable ties that secure the power cord to the litter frame.
6. Using a small flat screwdriver, push in on the power cord lock and gently pull outward on the power cord.
7. Remove and discard the power cord from the control box.
8. Reverse steps to reinstall.
9. Verify proper operation of the product before returning it to service.
