Stryker SV1 Service Manual

68 SM-7100 REV 01 www.stryker.com

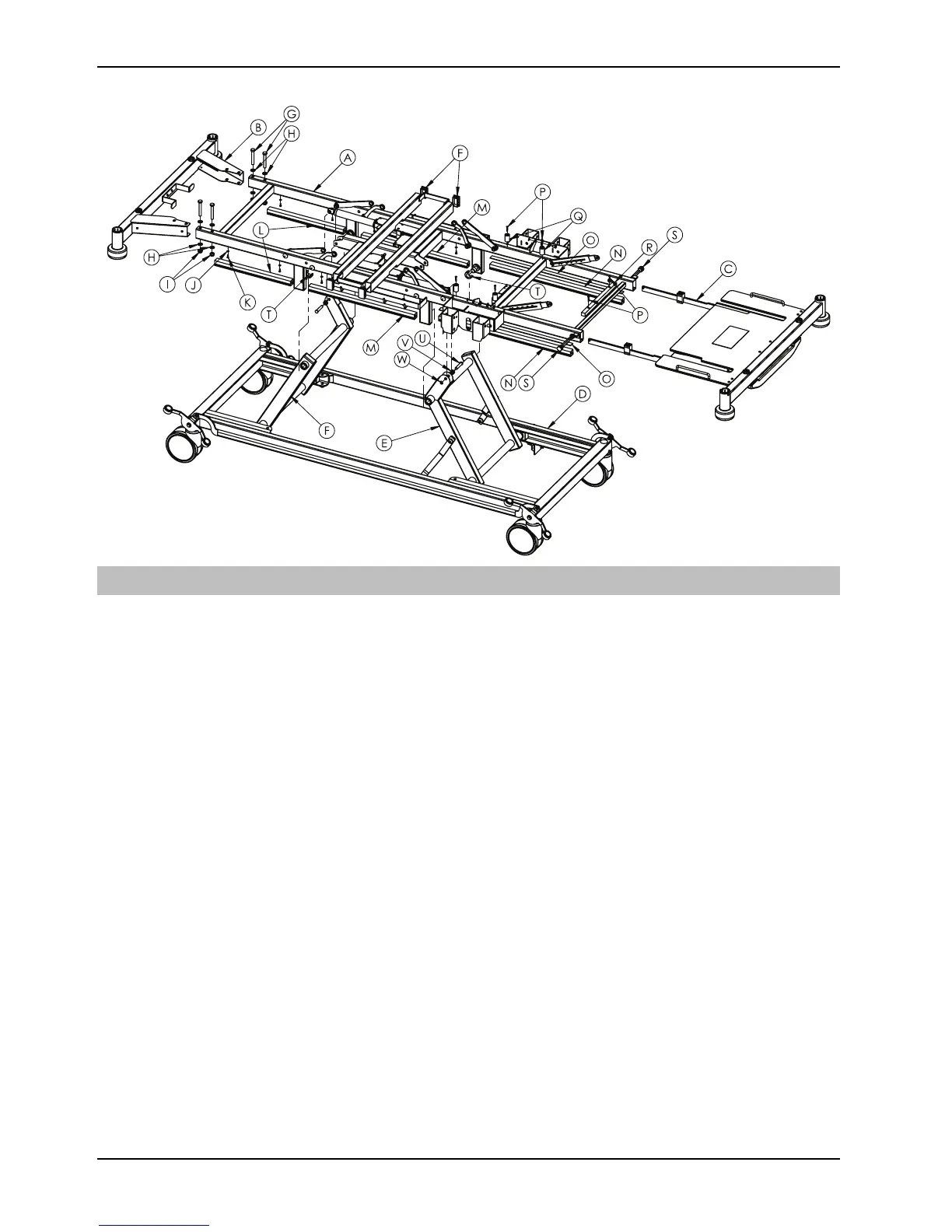

Litter / frame assembly
Item Number Name
Quantity
A
YM-FUTURELBUST-001-
BY
Litter frame weldment
1
B YM-026-010-MN Head end weldment
1
C
YM-039-004-MN Bed extender
1
D YM-FUTURELBALT-002-
MN1
Base assembly
1
E YM-FUTURELBANA-002-
BY
Foot end lift leg weldment
1
F YM-FUTURELBANA-004-
BY
Head end lift leg weldment
1
G
HM-05-006
Ø10 x 70 mm pin
4
H HM-07-04 M10 iron washer 8
I HM-08-07
M10 fiber hex nut
4
J HM-07-07
Ø4 iron washer
8
K HM-06-02
Ø3.9 x 15 mm
8
L YM-16-49-03 380 mm cable routing
cover
2
M YM-16-49-01 530 mm cable routing
cover
2
N YM-16-49-02 660 mm cable routing
cover
2
O
HM-22-61
660 mm ?
2
