Stryker SV1 Service Manual

86 SM-7100 REV 01 www.stryker.com

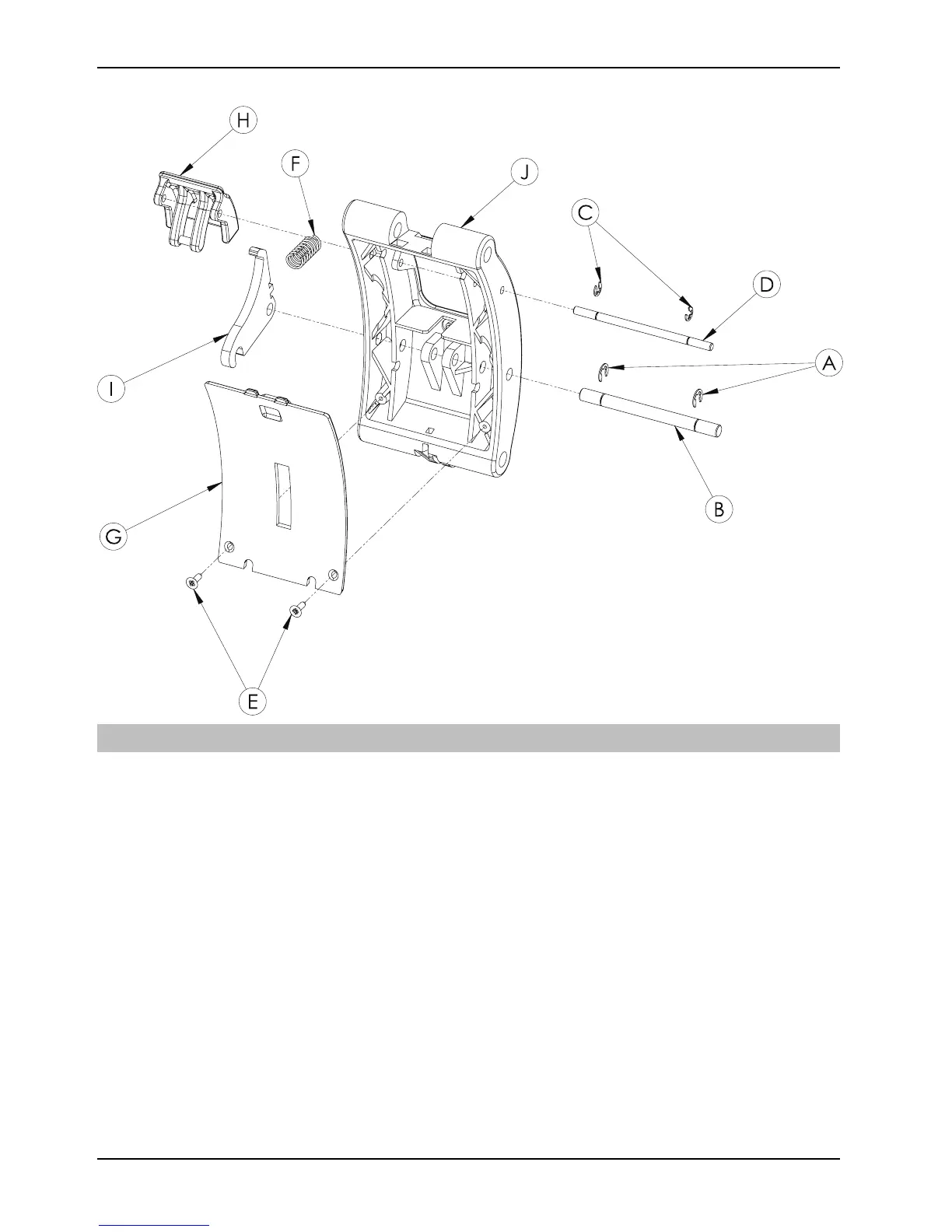

Siderail release latch assembly
Item Number Name
Quantity
A HM-11-05
6 mm C shape snap ring
DIN 6799
2
B HM-12-200
Ø8 x 98 mm siderail pin
with snap ring slides
1
C HM-11-06
Size 4 snap ring
2
D HM-12–147
Ø5 x 98 mm siderail pin
with snap ring slides
1
E HM-06–14 Ø3.5 x 13 mm Star screw 2
F HM-16–51
Hammer spring
1
G HM-02-370
Siderail mechanism plastic
cover
1
H HM-02-374 Siderail release handle 1
I
HM04-FTR007 Siderail release hammer 1
J HM-02-369
Siderail mechanism plastic
shell
1
