Stryker SV1 - Brake; steer pedal replacement

56 SM-7100 REV 01 www.stryker.com
Service
Foot end siderail gas cylinder replacement (Continued)

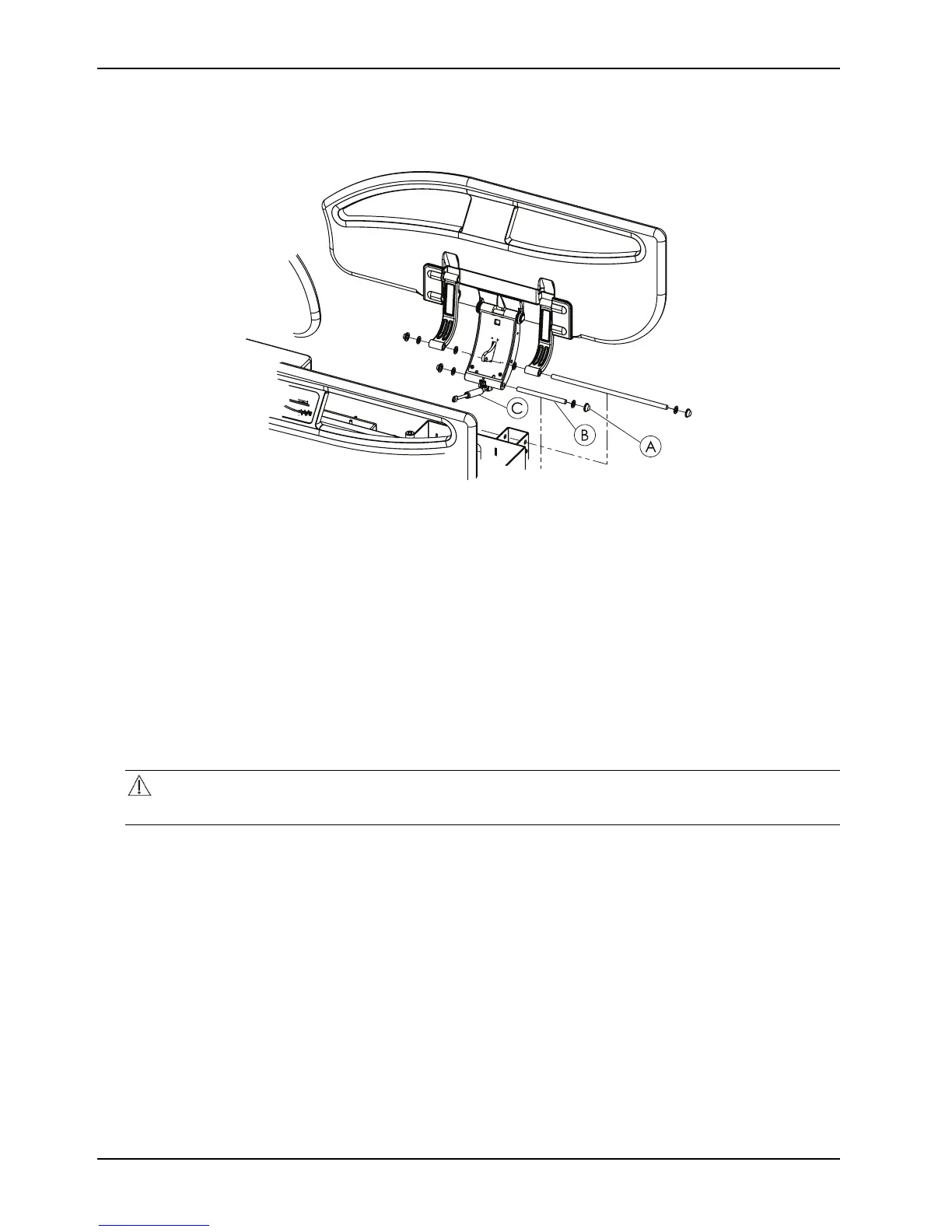

Figure 9: Foot end siderail gas cylinder
Brake / steer pedal replacement
Tools required:
• Large flat screwdriver
• Hammer
• 3/8 in. drive ratchet
• 13 mm socket
• 13 mm combination wrench
Procedure:
1. Put the brake in the neutral position.
CAUTION
With the brake in the neutral position, the product could move.
2. Raise the product to the highest height position.
3. Power down the bed and unplug the power cord from the wall outlet.
4. Using a 3/8 in. drive ratchet and 13 mm socket with a 13 mm combination wrench, remove and save the bolt (A)
and nut (B) that secures the linkage to the brake / steer pedal (Figure 10 on page 57).
5. Using a large flat screwdriver and a hammer, remove and discard the push nut (C) that secures the brake / steer
pedal on the hex shaft (Figure 10 on page 57).
6. Remove and discard the brake/steer pedal (D) (Figure 10 on page 57).
7. Reverse steps to reinstall.
8. Verify proper operation of the product before returning it to service.
