Stryker SV1 Service Manual

66 SM-7100 REV 01 www.stryker.com

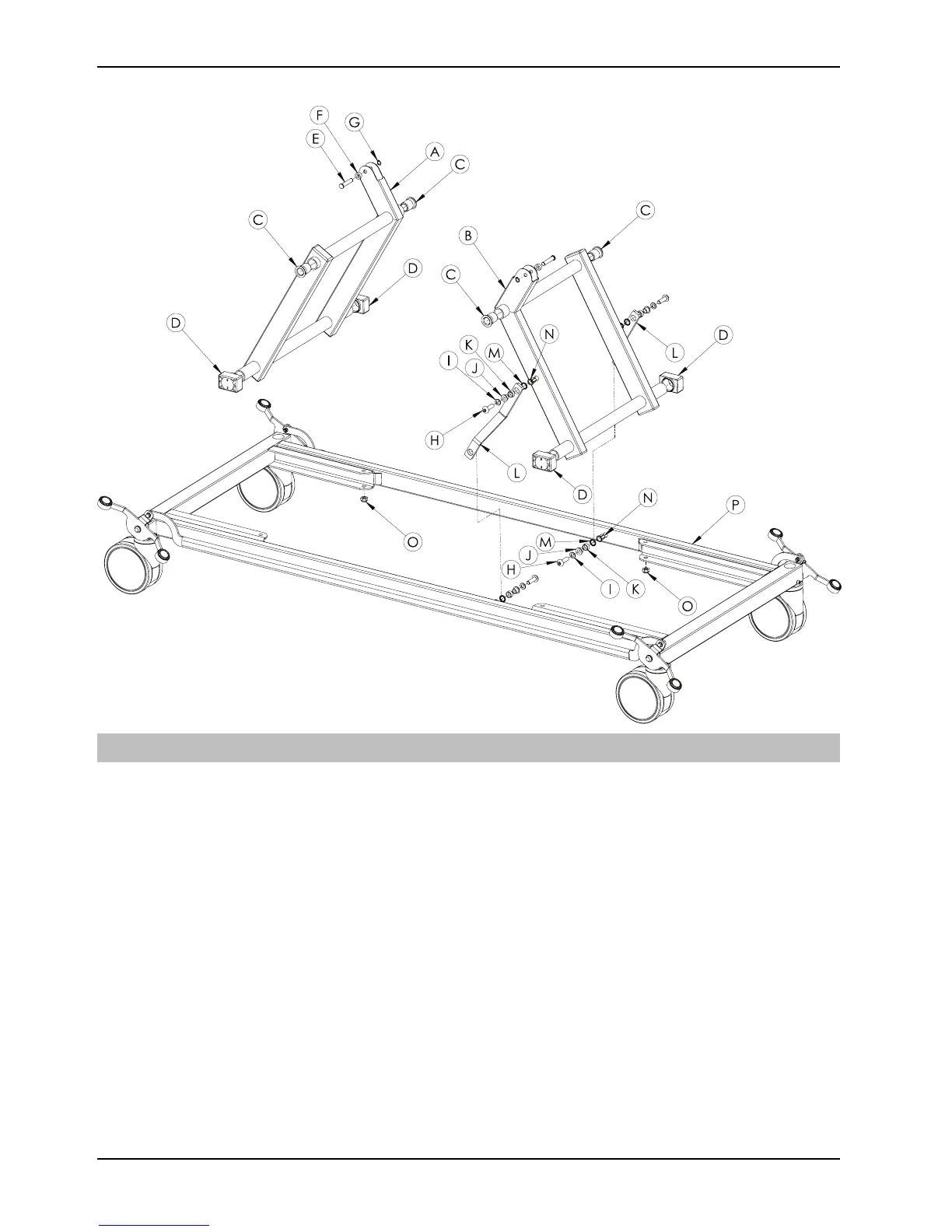

Base and leg assembly
Item Number Name
Quantity
A YM-FUTURELBANA-004-
BY
Head end lift leg weldment
1
B YM-FUTURELBANA-002-
BY
Foot end lift leg weldment
1
C
YM-HM-02-402
Ø34 mm plastic bushing
4
D YM-HM-02-396 Delrin slider blocks
4
E HM-12-FTR004 12-FTR004 10 x 53
actuator pin
2
F HM-02-285
Ø10.6 x 7.5 mm plastic
washer
2
G
HM-11-03 10 mm snap ring DIN 471 2
H HM-05-153
Ø10 x 35 mm button head
bolt
4
I HM-02-283 2 mm plastic washer (10
mm plastic washer) mould
NO 34
4
