Stryker SV1 - Siderail Head End Assembly

82 SM-7100 REV 01 www.stryker.com

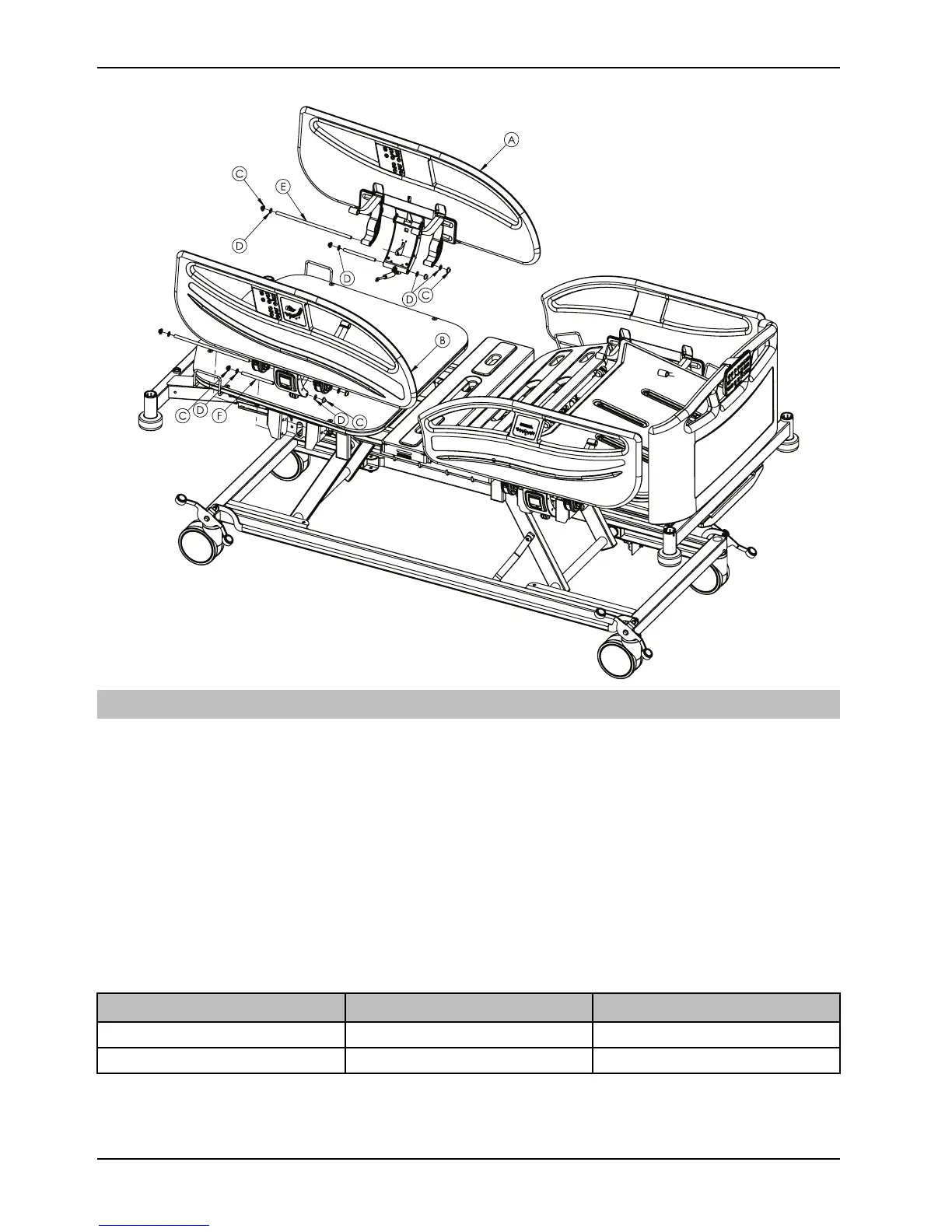

Siderail head end assembly
Item Number Name
Quantity
A YM-20-005
Head end left siderail
1
B YM-20-007 Head end right siderail
1
C
HM-11-19
Q10 capped snap ring
(DT/6668/44A)
16
D HM-02-283 2 mm plastic washer (10
mm plastic washer) mould
NO 34
24
E HM-12-145 12-145 10 x 305 mm
siderail pin
4
F HM-12-144 12-144 10 x 128 mm
siderail pin
4
Siderail laminate
Number (left) Number (right)
Dark blue HM-20-853 HM-20-852
Dark wood HM-20-760 HM-20-759
