Stryker SV1 Service Manual

www.stryker.com SM-7100 REV 01 85

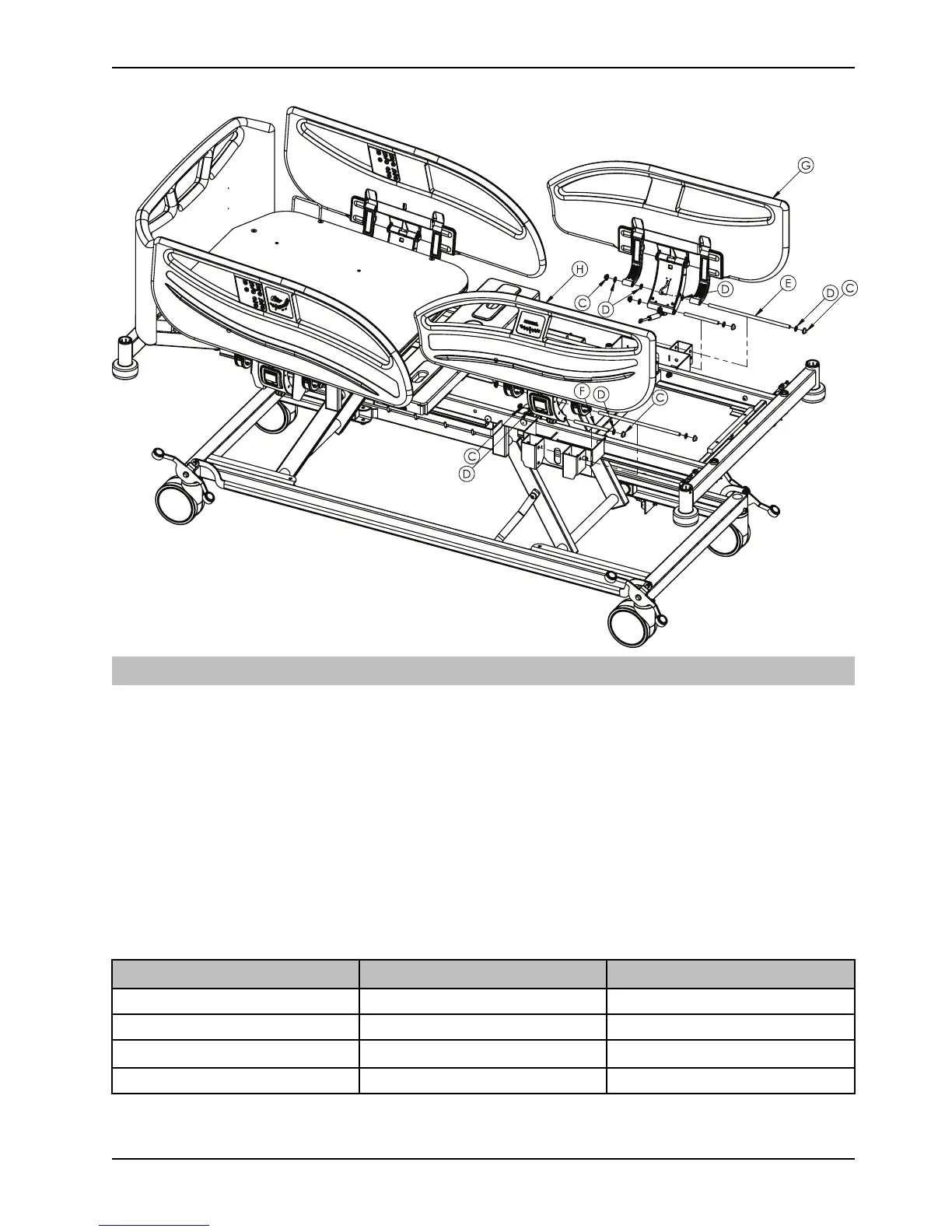

Siderail foot end assembly
Item Number Name
Quantity
C
HM-11-19
Q10 capped snap ring
(DT/6668/44A)
16
D HM-02-283 2 mm plastic washer (10
mm plastic washer) mould
NO 34
24
E HM-12-145 12-145 10 x 305 mm
siderail pin
4
F HM-12-144 12-144 10 x 128 mm
siderail pin
4
G
YM-20-006
Foot end left siderail
1
H YM-20-008 Foot end right siderail
1
Siderail laminate
Number (left) Number (right)
Dark blue HM-20-855 HM-20-854
Dark wood HM-20-762 HM-20-761
Light wood HM-20-752 HM-20-751
Wood HM-20-757 HM-20-756
