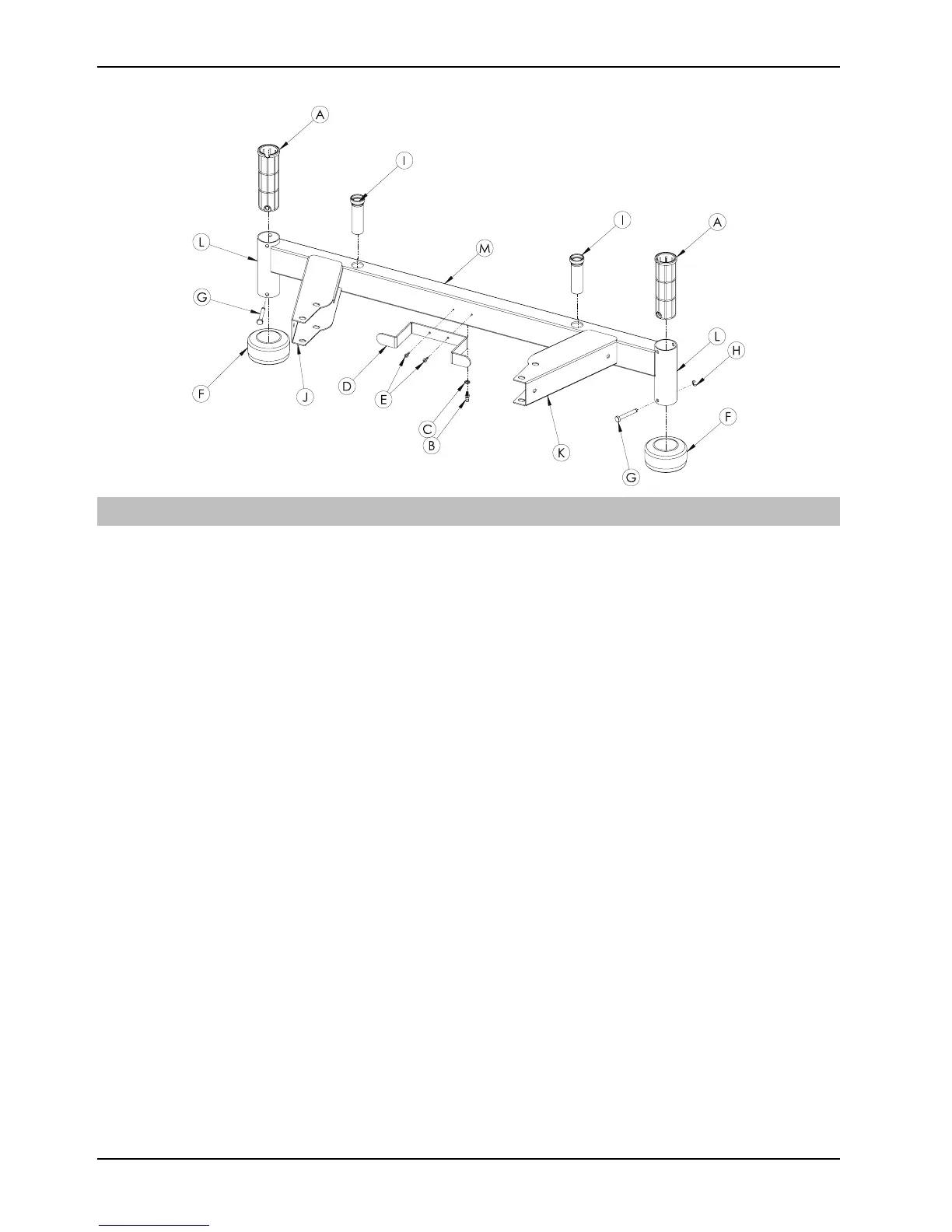

Bumper roller assembly
Item Number Name
Quantity
A YM-HM-02-413
Accessory socket sleeve
2
B HM-12-128
Grounding chrome
1
C
HM-09-04
6 mm serrated washer
(ring) DIN 6798
1
D
YM-04-100-HZR3
Cable stow 20b-3
1
E HM-06-02
Star drive round head bolt
(3.9 x 13 mm)
2
F HM-02-354
Future bumper
2
G HM-12-FTR001
12-FT001 future bumper
pin
2
H HM-02-391
5 mm C shaped snap ring
DIN 6799
2
I HM-02-55
Head board lock pin plastic
encasing
2
J YM-04-322-HZR-1
Detachable bumper to
chassis connection arm
(right side)
1
K
YM-04-322-HZR
Detachable bumper
chassis to main chassis
connection arm (left side)
1
L YM-03-01-01-01250-HZR
45 x 2 x 150 mm bumper
chassis side tubes
2
M YM-03-02-41-877-HZR1
Main bumper profile 40 x
60 x 877 mm
1
