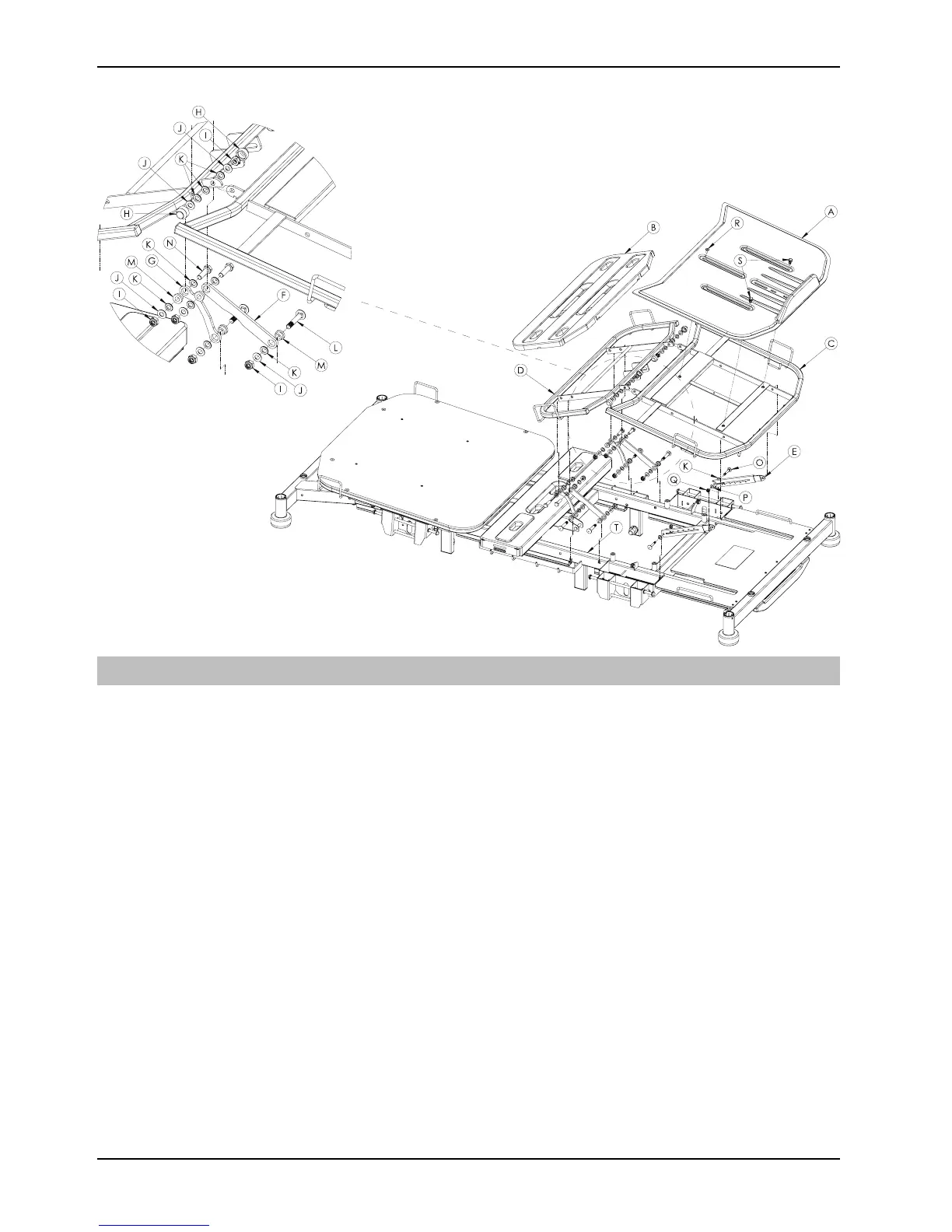

Litter gatch (legrest) assembly
Item Number Name
Quantity
A HM-02-121
Plastic calf rest cover
1
B HM-02-119 Plastic thigh rest cover
1
C
YM-007-006-BY
Calf rest weldment
1
D YM-006-003-BY Thigh rest weldment
1
E HM-20-517 Foot prop assembly 2
F YM-04-102-BY 102-6 laser cut link 2
G
YM-04-103-BY 103-6 laser cut link 2
H YM-HM-02-179 Bolt cap
4
I HM-08-07
M10 fiber hex nut
10
J HM-07-04 M10 iron washer 12
K HM-02-283 2 mm plastic washer (10
mm plastic washer) mould
NO 34
12
L HM-06-89 M10 x 55 mm carriage bolt
4
M YM-HM-02-88
Ø10 mm plastic bushing
8
N HM-05-005 M10 x 35 mm hex head
bolt
4
