Head end lift actuator replacement (Continued)
13. Verify proper operation of the product before returning it to service.

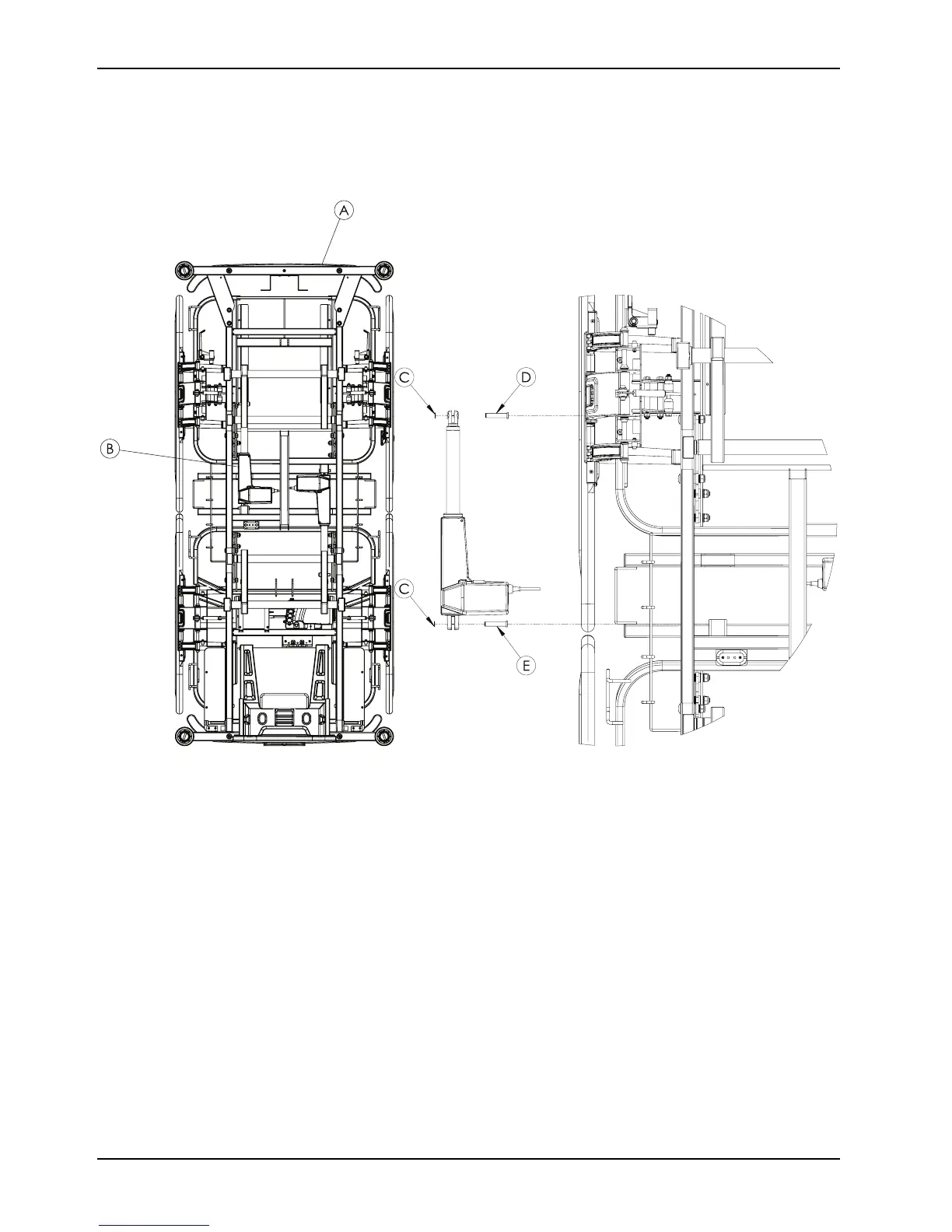

Figure 4: Head end lift actuator
Foot end lift actuator replacement
Tools required:
• Small flat screwdriver
• 90 Degree snap ring pliers (small)
• Diagonal pliers
Procedure:
1. Apply the brakes.
2. Support the foot end litter cross brace (F) to support the foot end litter (Figure 5 on page 51).
3. Power down the bed and unplug the power cord from the wall outlet.
4. Using diagonal pliers, cut the cable tie that secures the foot end lift actuator cable.
5. Discard the cable tie.
6. Using a small flat screwdriver, gently push in both locking tabs to remove the cable retainer on the foot end lift
actuator electrical connector.
