Stryker SV1 Service Manual

www.stryker.com SM-7100 REV 01 51
Service
Foot end lift actuator replacement (Continued)
7. Unplug the connector.
8. Using snap ring pliers, remove and discard the retaining ring (C) on each clevis pin (Figure 5 on page 51).
9. Using one hand, support the foot end lift actuator and remove the foot end clevis pin (E) then allow the foot end lift
actuator (B) to pivot down (Figure 5 on page 51).
10. Using one hand, support the foot end lift actuator and remove the head end clevis pin (D) (Figure 5 on page 51).
11. Remove and discard the foot end lift actuator.
12. Reverse steps to reinstall.
13. Verify proper operation of the product before returning it to service.

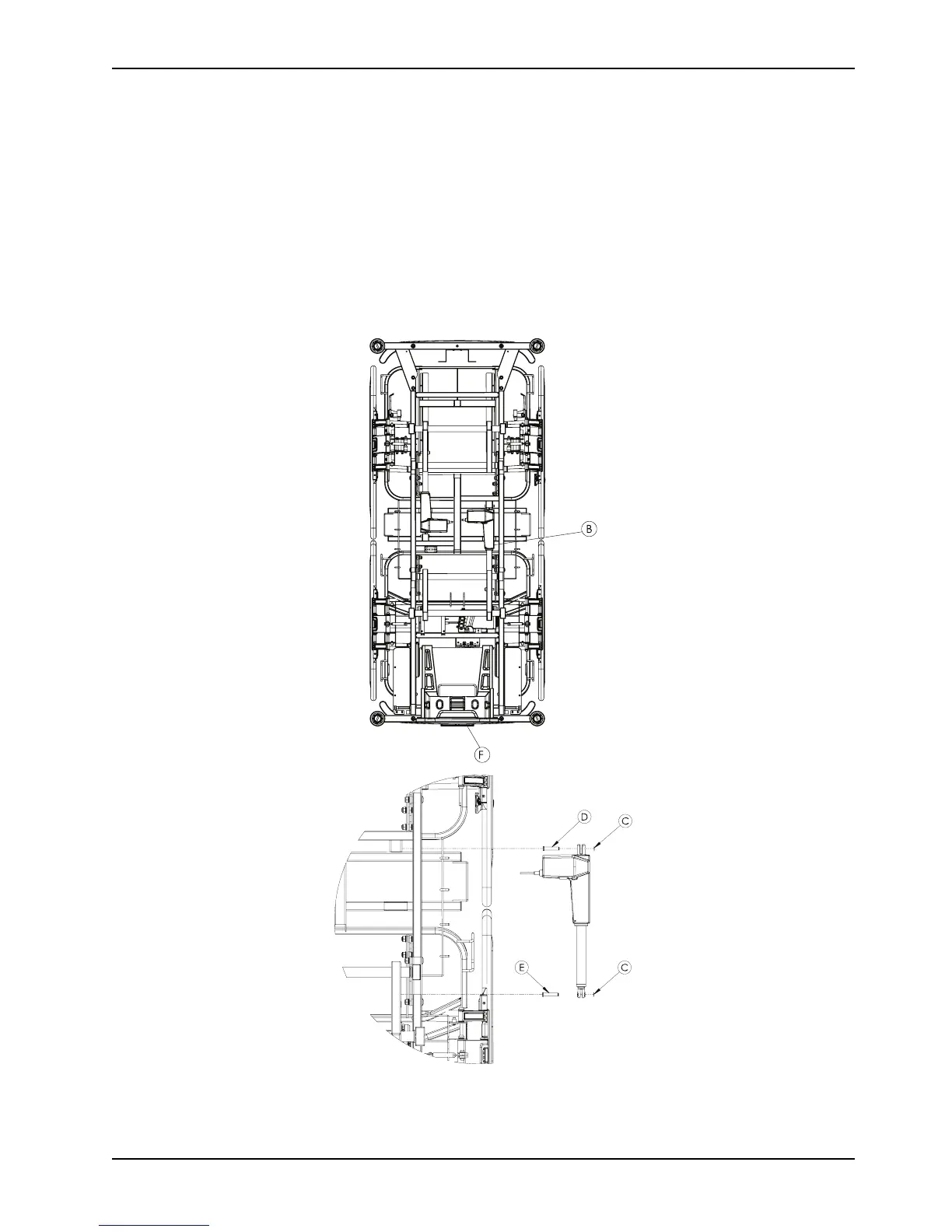

Figure 5: Foot end lift actuator
