Stryker SV1 - Litter Fowler (Backrest) Assembly

www.stryker.com SM-7100 REV 01 75

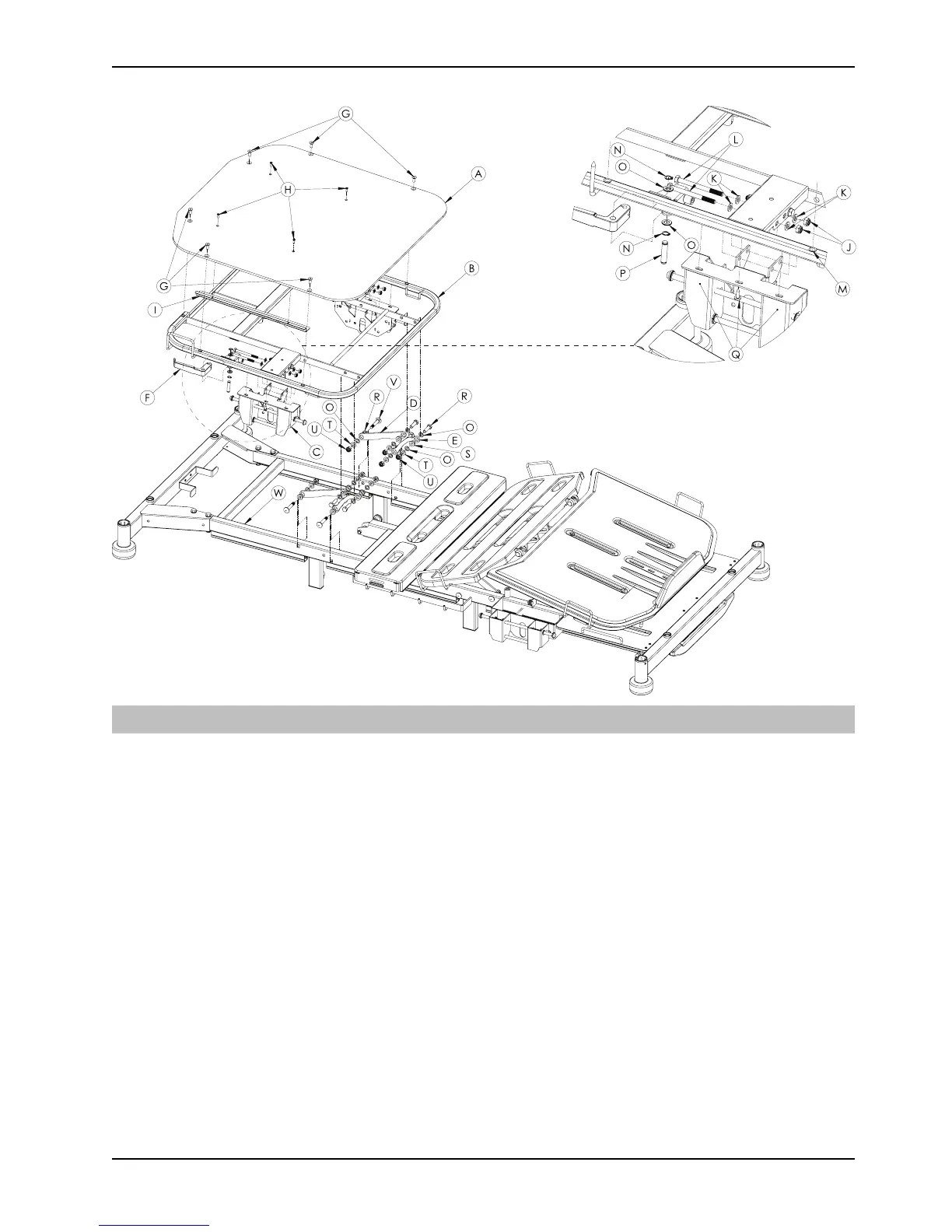

Litter fowler (backrest) assembly
Item Number Name
Quantity
A YM-27-01-005 Plastic backrest cover
1
B YM-008-013-00-BY Backrest weldment
1
C YM-FUTURESRT-001-BY Siderail mounting bracket
2
D YM-04-102-BY 102-6 laser cut link 2
E YM-04-103-BY 103-6 laser cut link 2
F HM-02-13
Red plastic CPR release
handle
2
G
HM-05-032 M8 x 20 mm countersunk
bolt
6
H HM-06-30
M5 x 15 mm self drilling
star bolt
4
I YM-15-05-0450-HZR1 X-Ray cassette track 2
J HM-08-06
M8 fibered nut
2
K HM-07-03 M8 iron washer
4
L HM-05-018
M8*90 half thread steel
bolt
2
