Service
Gatch (legrest) actuator replacement (Continued)
• Needle nose pliers
Procedure:
1. Apply the brakes.
2. Raise the product to the highest height position.
3. Power down the bed and unplug the power cord from the wall outlet.
4. Using a small flat screwdriver, push in both locking tabs to remove the cable retainer on the gatch (legrest) actuator
electrical quick connector.
5. Unplug the gatch (legrest) actuator cable to allow the removal of the gatch (legrest) actuator.
6. Using needle nose pliers, remove and discard the rue ring cotter pins (A) (Figure 3 on page 58) from each clevis pin.

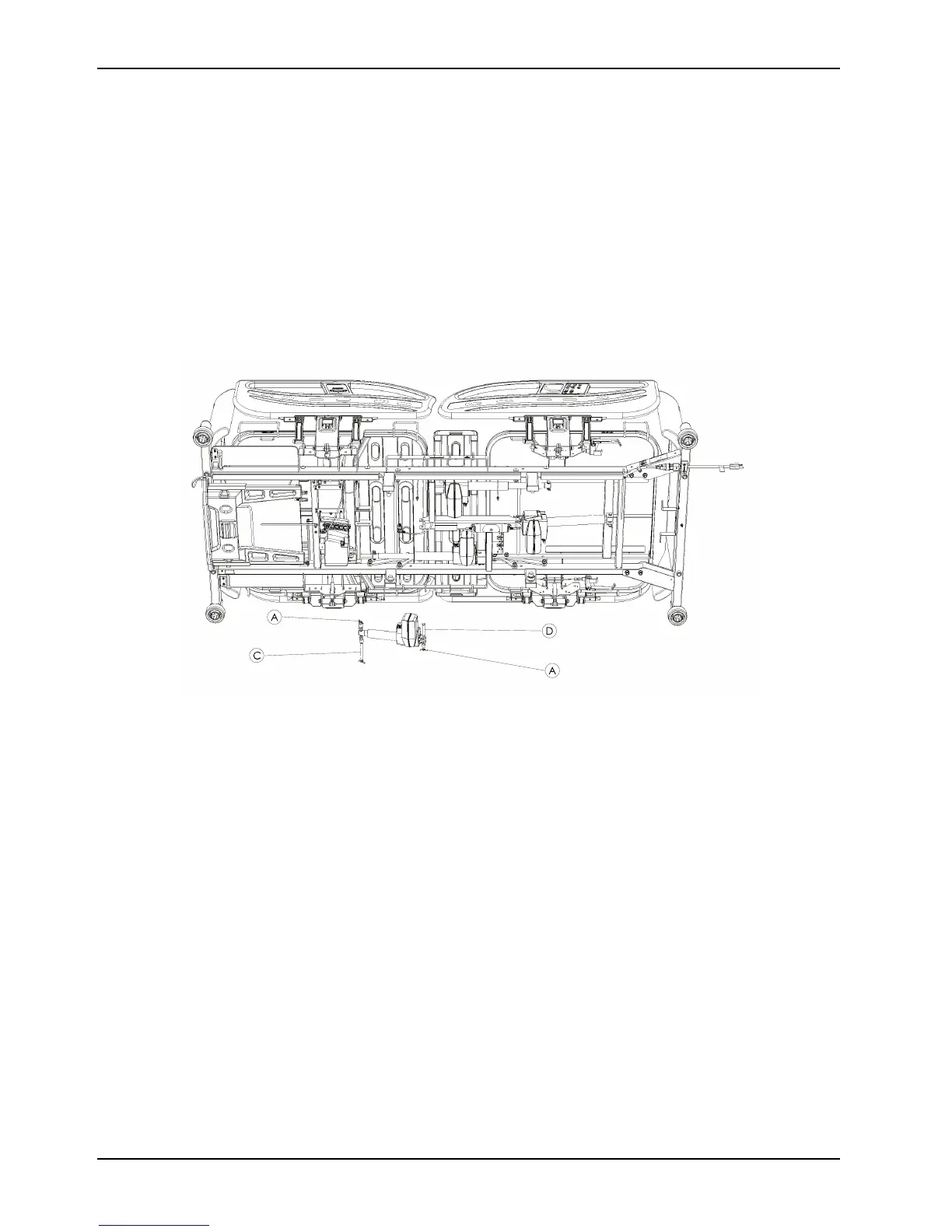

Figure 3: Gatch (legrest) actuator
7. Using one hand, support the gatch (legrest) actuator and remove the foot end clevis pin (C) (Figure 3 on page 58)
and spacers then allow the gatch (legrest) actuator to pivot down.
8. Using one hand, support the gatch (legrest) actuator and remove the head end clevis pin (D) (Figure 3 on page 58)
and spacer.
9. Remove and discard the gatch (legrest) actuator.
10. Reverse steps to reinstall.
11. Verify proper operation of the product before returning it to service.
Head end lift actuator replacement
Tools required:
• Small flat screwdriver
• Needle nose pliers
Procedure:
1. Apply the brakes.
2. Support the head end litter cross brace (A) to support the head end litter (Figure 4 on page 59).
