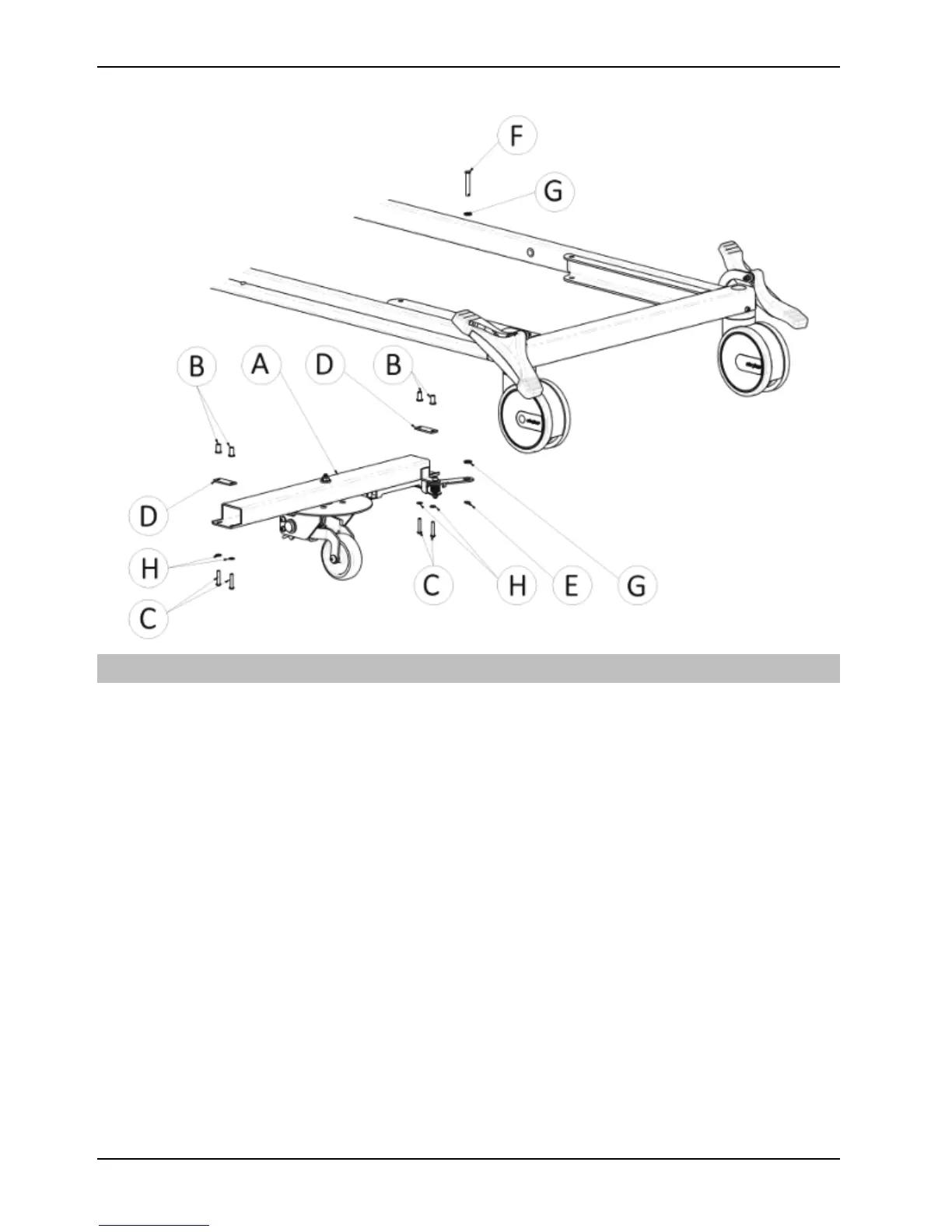

78
SK-7500
REV
00
www.stryker.com
Base
and
leg
assembly
with
5th
wheel
(option)
Item
Number
Name
Quantity
A
YM-5TKR-001
Fifth
wheel
assembly
group
1
B
HM-09-23
M6
rivet
nut
4
C
HM-05-041
M6*30
hexagon
socket
button
head
screw
4
D
YM-04-142-BY
Fifth
wheel-base
frame
connection
sheet
2
E
HM-11-35
Ø8
rue
clip
1
F
HM-12-004
Ø8
perforated
pin
1
G
YM-HM-02-026
8,5
x
16
x
2,2
mm
plastic
washer
2
H
HM-07-22
M6
steel
washer
(small)
4
81
83
Table of Contents
Table of Contents
5
Warning/Caution/Note Definition
7
Summary of Safety Precautions
8
Pinch Points
9
Preventive Maintenance
10
Cleaning
12
Preparing the Product for Cleaning
12
Cleaning the Siderails
13
Disinfecting
14
Troubleshooting
15
Quick Reference Replacement Parts
18
Service
61
Fowler (Backrest) Actuator Replacement
61
Gatch (Legrest) Actuator Replacement
61
Head End Lift Actuator Replacement
62
Foot End Lift Actuator Replacement
63
Non-Steer Caster Replacement
65
Steer (Head Left) Caster Replacement
66
Fifth Wheel Replacement
68
Head End Siderail Gas Cylinder Replacement
68
Foot End Siderail Gas Cylinder Replacement
69
Lower Leg Section Locking Mechanism Replacement
70
Patient Control Pendant Replacement
71
Nurse Control Pendant Replacement
71
Siderail Control Panel (Inside and Outside Siderail) Replacement
72
Control Box Replacement
72
Battery Replacement
73
Power Cord Replacement
74
Head End Siderail Hoop Replacement
75
Foot End Siderail Hoop Replacement
76
Brake System
77
Base and Leg Assembly
80
Base and Leg Assembly with 5Th Wheel (Option)
82
Litter / Frame Assembly
83
Bumper Roller Assembly
85
Bed Extender Assembly
86
Hi-Lo Actuators
88
Control Box and Battery
89
Litter Fowler (Backrest) Assembly
90
Litter Seat Assembly
92
Litter Gatch (Legrest) Assembly
93
Fowler (Backrest) Actuator
95
Gatch (Legrest) Actuator
96
Siderail Head End Assembly
97
Siderail Foot End Assembly
98
Siderail Assembly
99
Siderail Release Latch Assembly
100
Headboard and Footboard Assembly
101
EMC Information
102
Warranty
