Head end siderail hoop replacement (Continued)

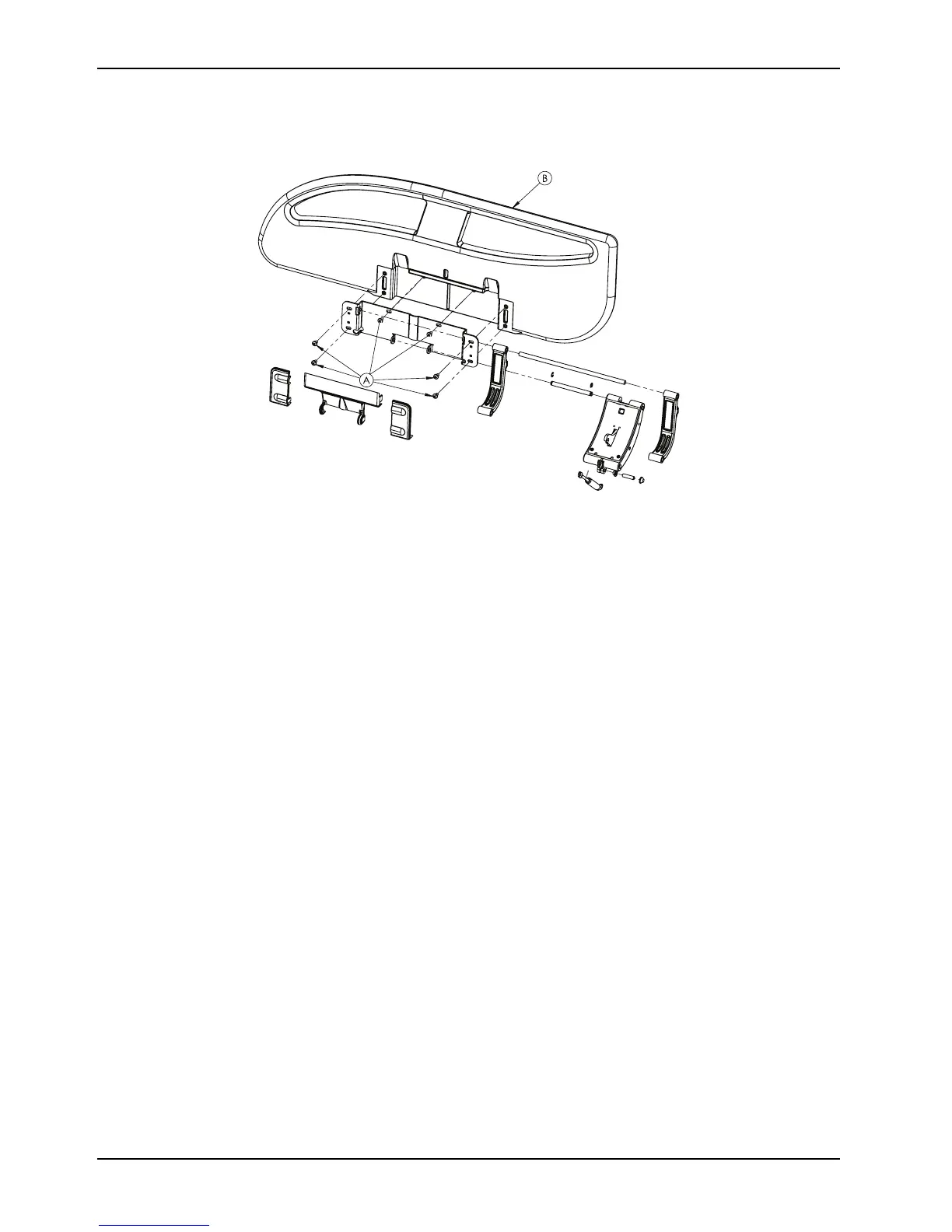

Figure 14: Head end siderail hoop
Foot end siderail hoop replacement
Tools required:
• #2 Phillips screwdriver
• Flat screwdriver
Procedure:
1. Apply the brakes.
2. Raise the product to the highest height position.
3. Power down the bed and unplug the power cord from the wall outlet.
4. Raise the siderail to the full upright and latched position.
5. Remove the mattress.
6. Using a #2 Phillips screwdriver, remove and save the cover screw on the bottom of the siderail hoop on either side
of the siderail pivot.
7. Using a flat screwdriver, carefully pry outward on the siderail pivot cover.
8. Using a #2 Phillips screwdriver, remove and discard the six screws (A) that secure the siderail hoop (B) to the
siderail mechanism (Figure 14 on page 72).
Note: Support the siderail hoop while removing the screws so the siderail hoop does not fall.
9. Remove and discard the siderail hoop.
10. Reverse steps to reinstall.
11. Verify proper operation of the product before returning it to service.
