Stryker SV2 Service Manual

www.stryker.com SK-7500 REV 00 59
Service
Head end lift actuator replacement (Continued)
3. Power down the bed and unplug the power cord from the wall outlet.
4. Using a small flat screwdriver, gently push in both locking tabs to remove the cable retainer on the head end lift
actuator electrical connector.
5. Unplug the connector.
6. Using needle nose pliers, remove and discard the rue ring cotter pins (B) from each clevis pin (Figure 4 on page 59).
7. Using one hand, support the head end lift actuator and remove and discard the head end clevis pin (C) then allow
the head end lift actuator to pivot down (Figure 4 on page 59).
8. Using one hand, support the head end lift actuator and remove and discard the foot end clevis pin (D) and spacer
(Figure 4 on page 59).
9. Remove and discard the head end lift actuator.
10. Reverse steps to reinstall.
11. Verify proper operation of the product before returning it to service.

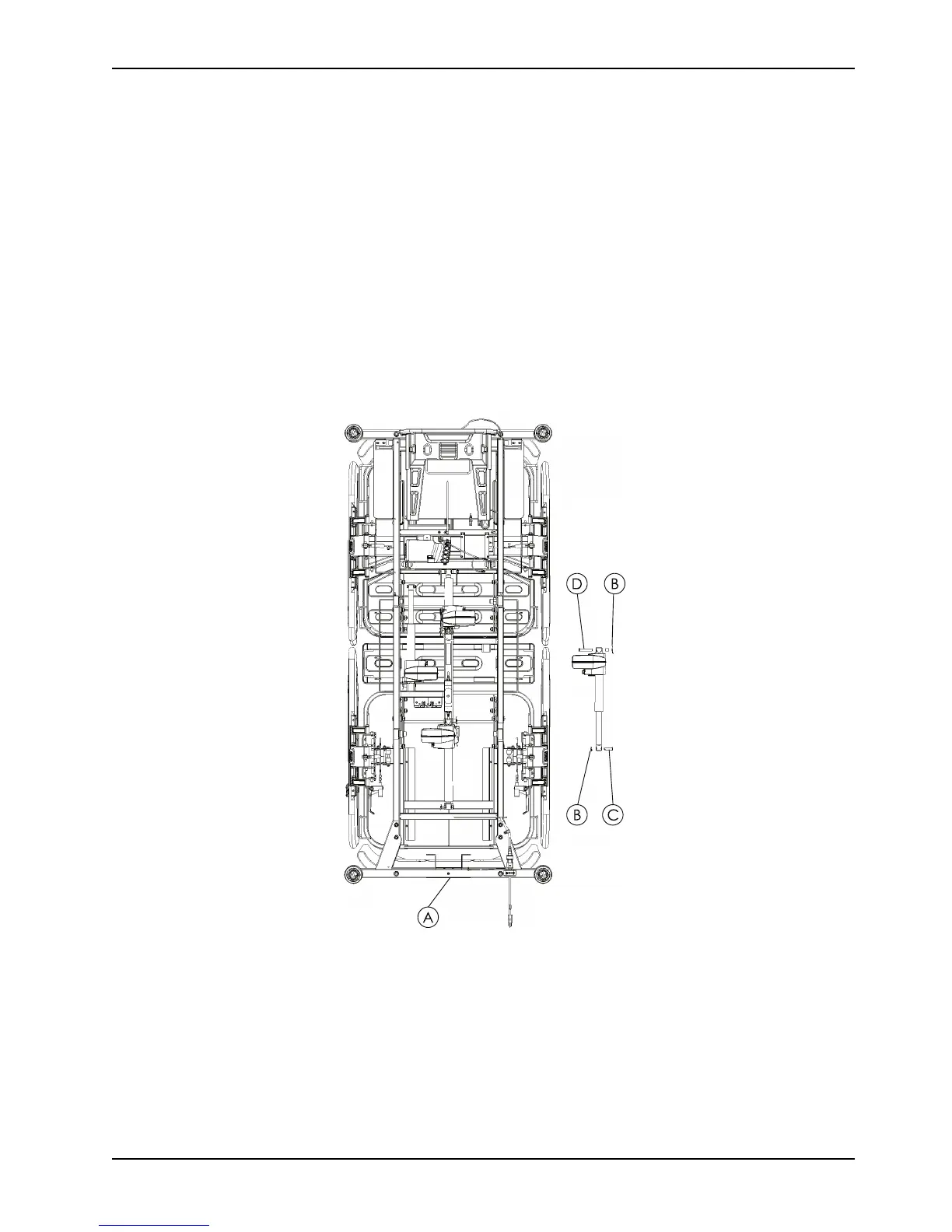

Figure 4: Head end lift actuator
Foot end lift actuator replacement
Tools required:
• Small flat screwdriver
• Needle nose pliers
