Stryker SV2 Service Manual

60 SK-7500 REV 00 www.stryker.com
Service
Foot end lift actuator replacement (Continued)
Procedure:
1. Apply the brakes.
2. Support the foot end litter cross brace (A) to support the foot end litter (Figure 5 on page 60).
3. Power down the bed and unplug the power cord from the wall outlet.
4. Using a small flat screwdriver, gently push in both locking tabs to remove the cable retainer on the foot end lift
actuator electrical connector.
5. Unplug the connector.
6. Using needle nose pliers, remove and discard the rue ring cotter pins (B) from each clevis pin (Figure 5 on page 60).
7. Using one hand, support the foot end lift actuator and remove and discard the foot end clevis pin (C) then allow the
foot end lift actuator to pivot down (Figure 5 on page 60).
8. Using one hand, support the foot end lift actuator and remove and discard the head end clevis pin (D) and spacer
(Figure 5 on page 60).
9. Remove and discard the foot end lift actuator.
10. Reverse steps to reinstall.
11. Verify proper operation of the product before returning it to service.

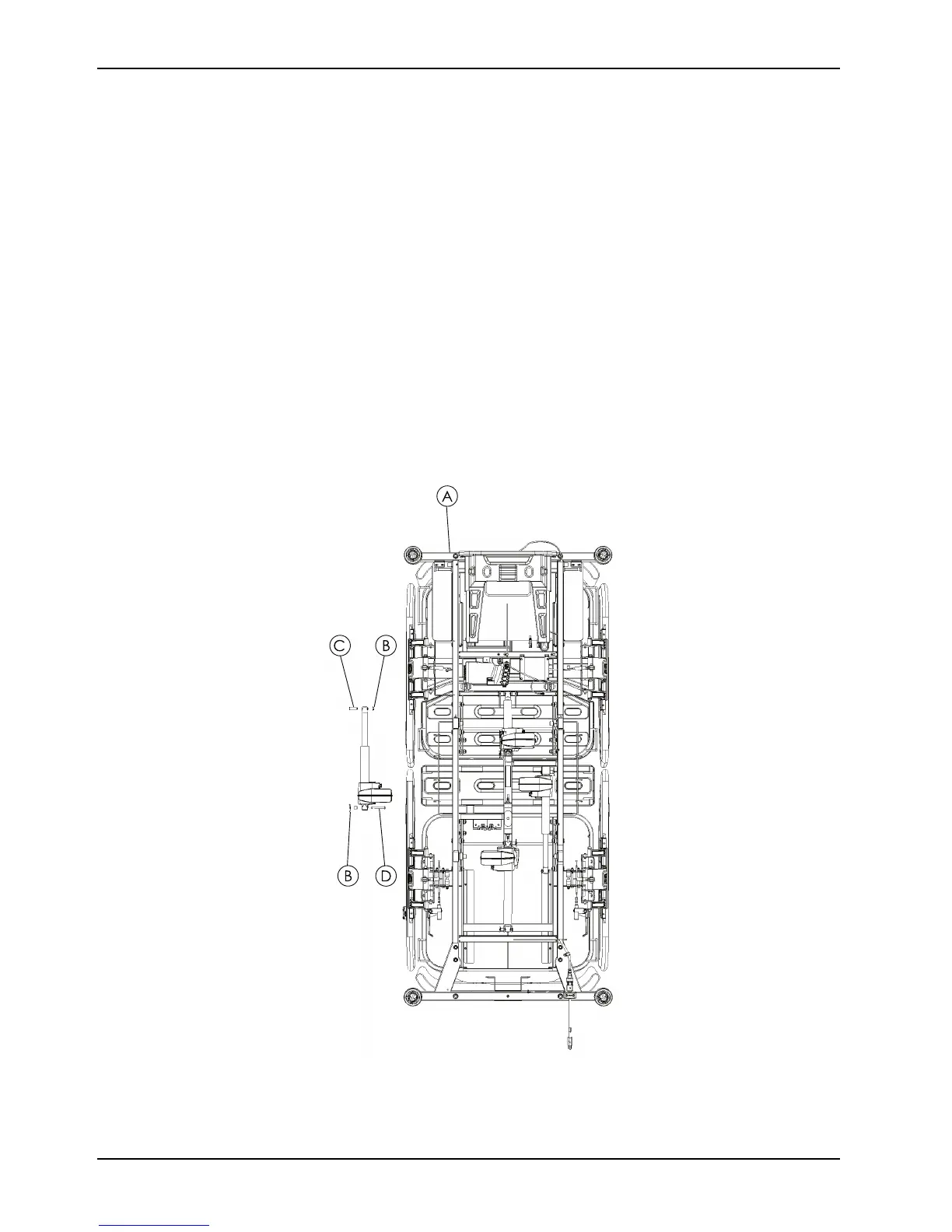

Figure 5: Foot end lift actuator
