Service
Power cord replacement (Continued)

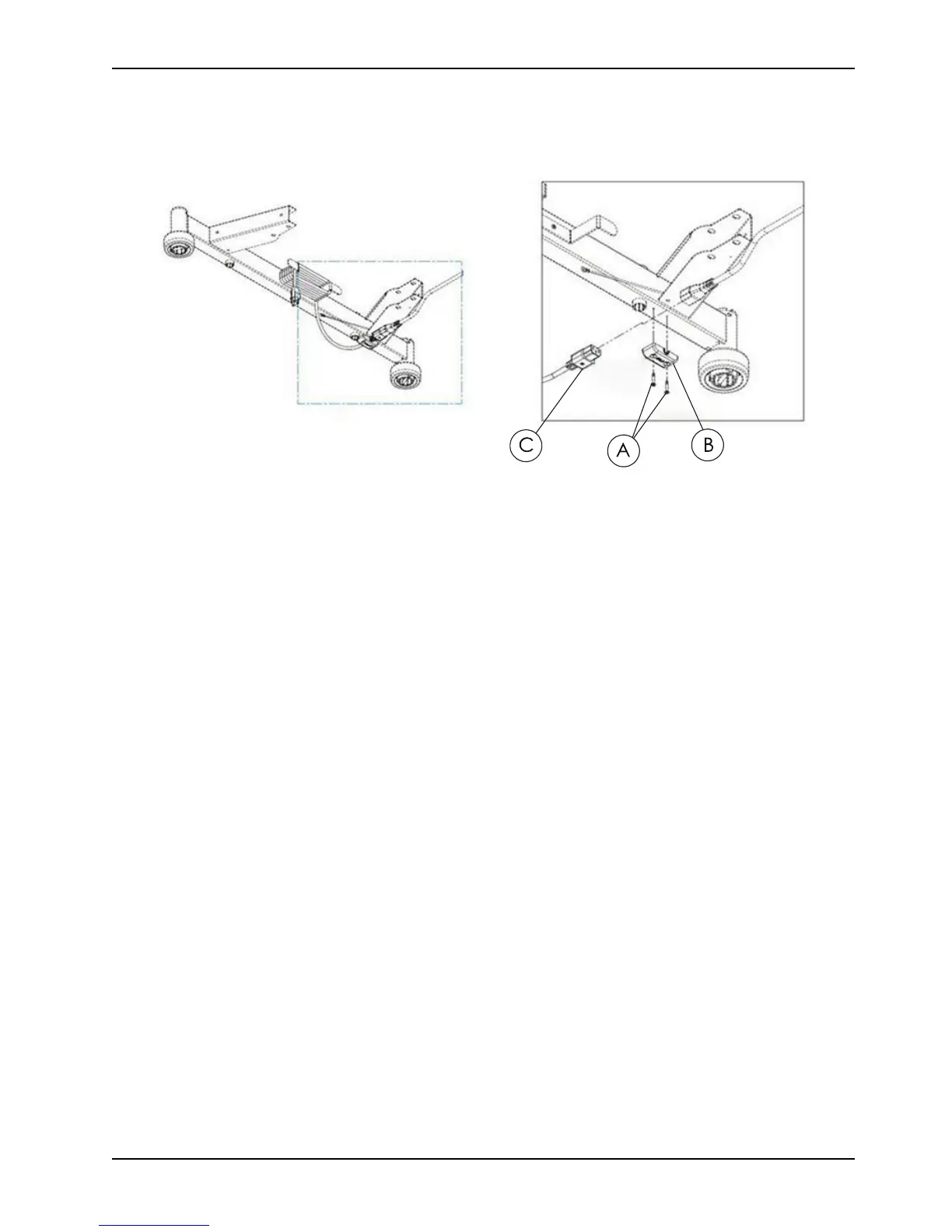

Figure 13: Power cord
Head end siderail hoop replacement
Tools required:
• #2 Phillips screwdriver
• Flat screwdriver
Procedure:
1. Apply the brakes.
2. Raise the product to the highest height position.
3. Power down the bed and unplug the power cord from the wall outlet.
4. Raise the siderail to the full upright and latched position.
5. Remove the mattress.
6. Remove the part number label from the head side of the control box assembly.
7. Using a flat screwdriver, carefully pry the outer panel away from the siderail hoop until the hoop fully unsnaps from
the inner panel.
8. Unplug the cable connecting the siderail control panel to the control box.
9. Remove the siderail control panel.
10. Using a #2 Phillips screwdriver, remove and save the cover screw on the bottom of the siderail hoop on either side
of the siderail pivot.
11. Using a flat screwdriver, carefully pry outward on the siderail pivot cover.
12. Using a #2 Phillips screwdriver, remove and discard the six screws (A) that secure the siderail hoop (B) to the
siderail mechanism (Figure 14 on page 72).
Note: Support the siderail hoop while removing the screws so the siderail hoop does not fall.
13. Remove and discard the siderail hoop.
14. Reverse steps to reinstall.
15. Verify proper operation of the product before returning it to service.
