Stryker SV2 Service Manual

www.stryker.com SK-7500 REV 00 95

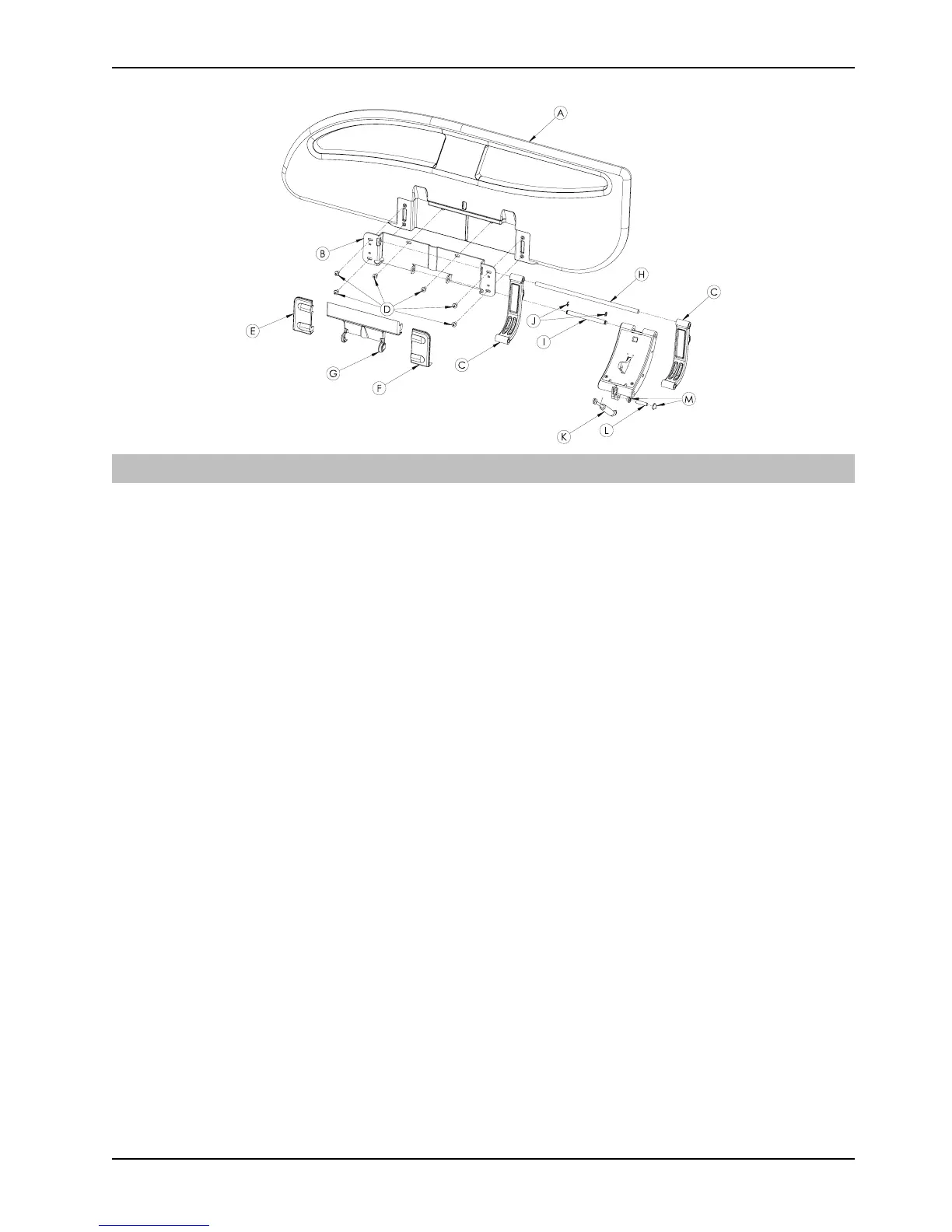

Siderail assembly
Item Number Name
Quantity
A
YM-20-007
Head end right siderail
1
B
HM-04-FTR005
Siderail assembly base
metal
1
C
YM-FUTUREALMKL-001-
BY
Aluminum siderail arm
(white)
2
D HM-06-23
M6 x 10 mm countersunk
bolt
6
E YM-HM-02-394
Siderail mechanism cover
1 left -mould 81
1
F YM-HM-02-363
Siderail mechanism cover
2 right - mould 81
1
G YM-HM-02-362
Siderail mechanism cover
3 center - mould 67
1
H HM-12-145
12-145 10 x 305 mm
siderail pin
1
I HM-12-144
12-144 10 x 128 mm
siderail pin
1
J HM-11-04
8 mm snap ring
2
K HM-18-27
Future side rail shock
absorber 640015004
1
L HM-12-146
12-146 8 x 31 mm side rail
pin
1
M HM-11-18
Q8 capped snap ring
(DT/6671/43A)
2
N YM-HM-02-369
Siderail plastic main
mechanism housing
1
