84
SK-7500
REV
00
www.stryker.com

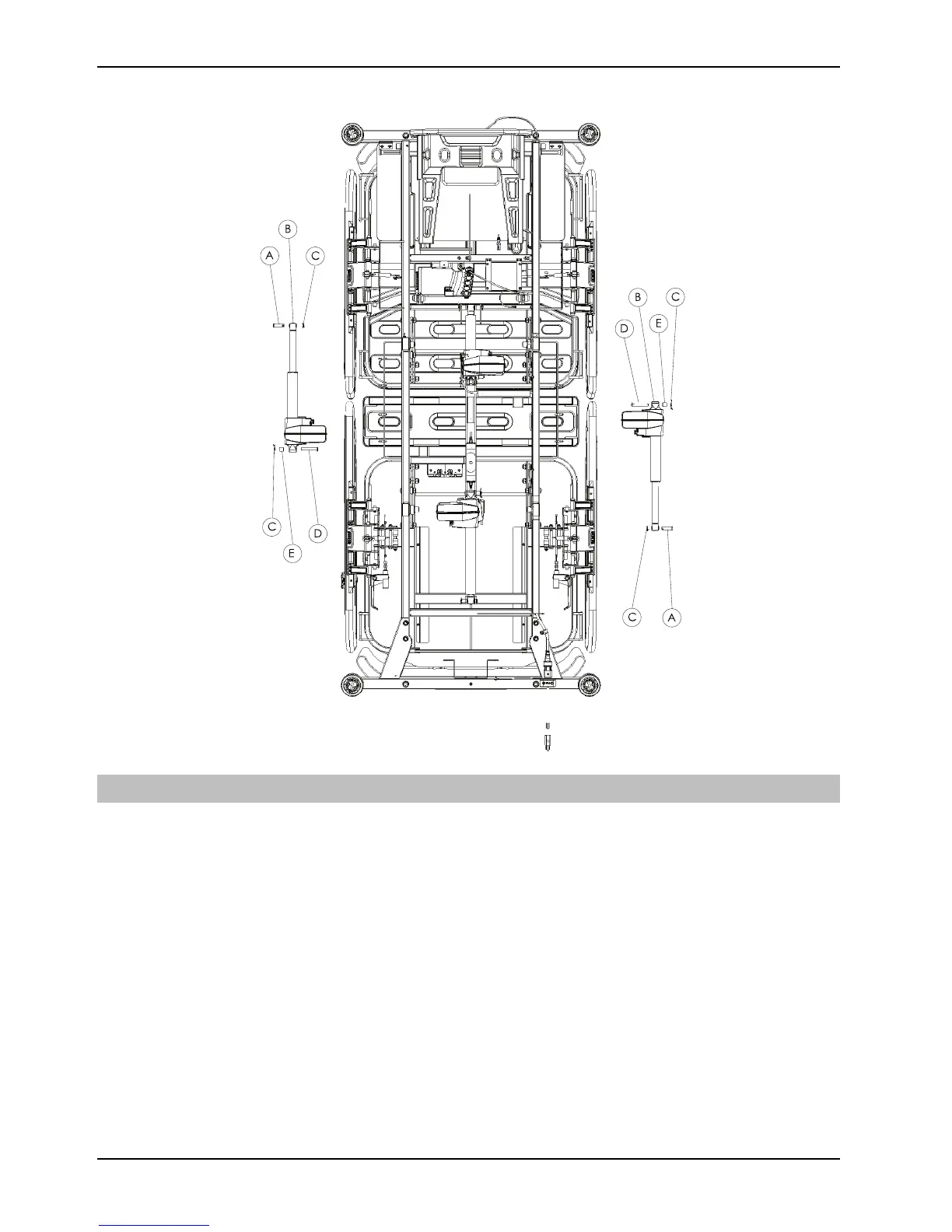

Hi-Lo
actuators
Item
Number
Name
Quantity
A
HM-12-FTR011
Ø14xØ10x41
mm
pin
2
B
HM-17-304
8000
N
LA40
150
mm
stroke
actuator
2
C
HM-11-31
Ø10
rue
clip
4
D
HM-12-FTR010
Ø14xØ10x65
mm
actuator
connection
pin
2
E
YM-HM-02-027
Actuator
pin
fixing
bush
2
87
