Non-steer caster replacement (Continued)

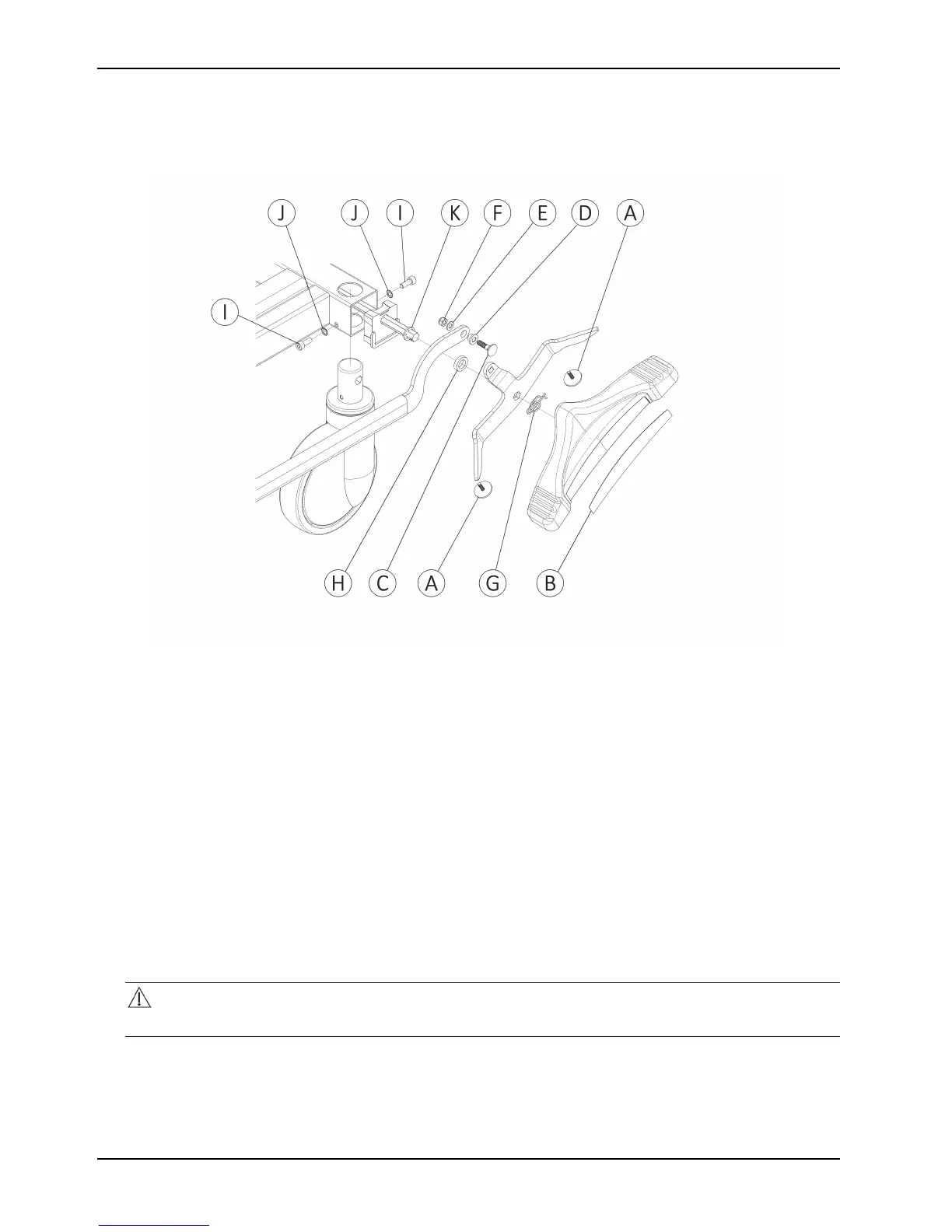

Figure 6: Non-steer caster
Steer (head left) caster replacement
Tools required:
• Large flat screwdriver
• Floor jack (small)
• Torque wrench with 5 mm hex bit (9.5 Nm)
• 5 mm hex wrench
• Needle nose pliers
• Hammer
Procedure:
1. Put the brake in the neutral position.
CAUTION
With the brake in the neutral position, the product could move.
2. Raise the product to the highest height position.
3. Unplug the power cord from the wall outlet.
4. Using needle nose pliers, remove and discard the rue ring cotter pin (G) from the hex shaft (Figure 7 on page 63).
