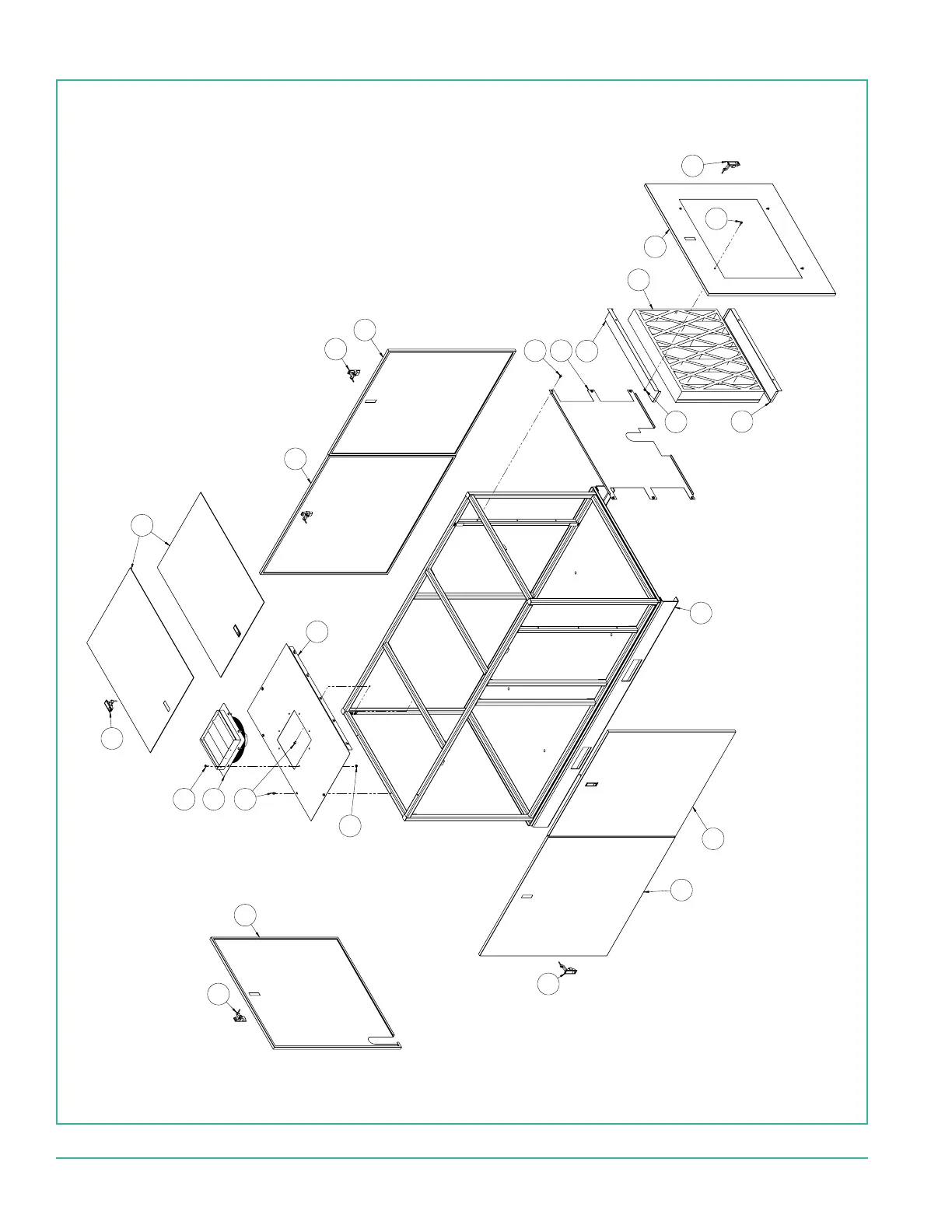

8.23 ENCLOSURE ASSEMBLY, WATER-COOLED (15–40HP)
12
3
10
13
11
8
1
3
5
2
4
4
2
11
12
11
7
6
11
11
9
14
15
13
16
NTS
REVISIONS
ZONE
REV.
DESCRIPTION
DATE
APPROVED
00
RELEASED
09/24/15
DJW/GLB
ITEM
NO.
PART NUMBER
DESCRIPTION
QTY
1
00009-009
FILTER, AIR 25X29X4"
1
2
00195-010
PANEL, DOOR W/O HOLE 36 X 38
2
3
00195-011
CHANNEL, FLTR SUPPORT
2
4
00195-013
PANEL, DOOR W/O HOLE 41 X 38
2
5
00195-302
BASE / FRAME ASSY 15-40
1
6
00195-331
PANEL
1
7
00195-317
PANEL, ENCL. TOP 26 X 38
2
8
00195-318
PNL, END W/ FLTR OPENING
1
9
00195-319
PNL, DISCHARGE END 38 X 38
1
10
00195-326
PANEL, INLET BFL 25 X 38
1
11
03270-005
LATCH, TRIGGER COMP.
8
12
93115-001
BOLT, WHIZ 1/4-20 X 3/4
12
13
93115-387
BOLT, WHIZ 1/4 X 1/2
15
14
93165-002
NUT, WHIZ, 1/4-20 GR5 PLT
4
15
18080-010
FAN, EXHAUST ASSY 10''
1
16
93165-002
NUT, WHIZ HEX 1/4-20
8
D
C
1
3
4
5
A
B
C
D
E
F
5
3
2
1
F
E
B
A
4
2
D
DJW
FIRST USED ON:
3RD ANGLE
PROJECTION
1201 West US Highway 20, Michigan City IN 46360
1-800-438-6203
SHEET
SCALE:
TOLERANCES AS FOLLOWS:
REV
DESCRIPTION
THIS DRAWING AND ALL INFORMATION THEREIN IS THE PROPERTY OF SULLIVAN-PALATEK, INC. IS CONFIDENTIAL AND MUST NOT BE MADE PUBLIC OR COPIED.
WWW.SULLIVANPALATEK.COM
SULLIVAN-PALATEK
CHECKED BY:
DATE:
DATE:
DRAWN BY:
ANGLES: + OR - 1/2 DEG.
DIMENSIONS ARE IN INCHES
UNLESS OTHERWISE NOTED
X.XXX + OR - 0.005
X.XX + OR - 0.020
DECIMAL: X.X + OR - 0.050
MATERIAL:
IT IS LOANED SUBJECT TO RETURN UPON DEMAND, IS NOT TO BE USED DIRECTLY OR INDIRECTLY IN ANYWAY DETRIMENTAL TO SULLIVAN-PALATEK'S INTEREST.
DRAWING NO:
SIZE
1 OF 1
09/24/15
00
AS77149-1540W
15-50HP
DRAWING, ASSEMBLY ENCW
