1:1
ITEM #
PART NUMBER
DESCRIPTION
QTY
1
03448-043
TANK, SUMP/SEPARATOR 12"
1
2
00633-001
GASKET, DISCHARGE
1
3
92773-038
STUD, B7 5/16-18 X 1-1/2''
12
4
08000-009
ELEMENT, SEPARATOR 40-50 HP
1
5
90305-003
WASHER, LOCK 3/8
8
6
90115-013
BOLT, HH 3/8 X 1
8
7
03100-008
VALVE, SAFETY RELIEF .50 MNPT - 200PSIG
1
8
91176-020
NIPPLE, CL BLK SCH80 1.25
1
9
09610-001
VALVE, MPC (1-1/4")
1
10
96363-202
CONN, CMS. 1-1/4 X 1-1/4
1
11
09600-148
TUBE, 1 1/4" MPCV TO AC
1
12
96390-202
ELBOW, CMS. 1-1/4 X 1-1/4
1
13
90165-003
NUT, HEX 5/16-18
12
14
91564-042
TEE, MALE RUN 1/4NT X 1/8
2
15
17254-016
SIGHT GLASS, 1.00 MNPT
1
16
07255-016
CAP, VENTED
1
17
95510-004
TEE, .250 MNPT X FNPT X FNPT BRASS
2
18
92469-200
NIPPLE, YEL BRASS 1/4 X 6
1
19
09661-002
REGULATOR, 1/4" FNPT
1
20
91557-064
ELBOW, 90 NT 3/8 X 1/4 M
1
21
91557-044
ELBOW, 90 NT 1/4 X 1/4 M
1
22
91553-044
CONN, NT 1/4 X 1/4 MPT
1
23
03286-003
FITTING, SIPHON 1/4" MNPT X 1/4" TUBE
1
24
09602-026
TUBE, OIL TOP RTN 40-50HP
1
25
09602-027
TUBE, SCAV BTM RTN 40-60HP
1
26
96390-042
ELBOW, CMS 1/4T X 1/8 MPT
1
27
93165-004
NUT, WHIZ HEX 3/8-16
2
28
93115-013
BOLT, WHIZ 3/8-16 1.0 GR5
2
29
96399-004
ELBOW, 1/4" MNPT X MNPT STEEL
1
30
95784-004
VALVE, DRAIN 1/4" F X F
1
31
94561-002
PLUG, PIPE 1/4" SQUARE HD
1
32
B29349-064
KIT, OIL RTRN SIGHTGLASS
1
33
96363-044
CONN, CMS 1/4T X 1/4 MPT
1
34
09349-001
SIGHTGLASS, OIL RETURN
1
35
18577-001
INSERT
1
36
03001-064
ORIFICE, INSERT 0.064
1
37
00023-001
ADAPTER, OIL RTRN SIGHTGLASS
1
38
95550-042
CONN, CFS 1/4T X 1/8 FPT
1
REVISIONS
REV.
DESCRIPTION
DATE
APPROVED
REDRAWN IN SOLIDWORKS
01/22/14
KRO
D
C
1
3
4
5
A
B
C
D
E
F
5
3
2
1
F
E
B
A
4
2
D
KRO
FIRST USED ON:
3RD ANGLE
PROJECTION
1201 West US Highway 20, Michigan City IN 46360
1-800-438-6203
SHEET
SCALE:
TOLERANCES AS FOLLOWS:
REV
DESCRIPTION
THIS DRAWING AND ALL INFORMATION THEREIN IS THE PROPERTY OF SULLIVAN-PALATEK, INC. IS CONFIDENTIAL AND MUST NOT BE MADE PUBLIC OR COPIED.
WWW.SULLIVANPALATEK.COM
SULLIVAN-PALATEK
CHECKED BY:
DATE:
DATE:
DRAWN BY:
ANGLES: + OR - 1/2 DEG.
DIMENSIONS ARE IN INCHES
UNLESS OTHERWISE NOTED
X.XXX + OR - 0.005
X.XX + OR - 0.020
DECIMAL: X.X + OR - 0.050
MATERIAL:
IT IS LOANED SUBJECT TO RETURN UPON DEMAND, IS NOT TO BE USED DIRECTLY OR INDIRECTLY IN ANYWAY DETRIMENTAL TO SULLIVAN-PALATEK'S INTEREST.
DRAWING NO:
SIZE
1 OF 1
01/22/14
AS803-040DS-TE

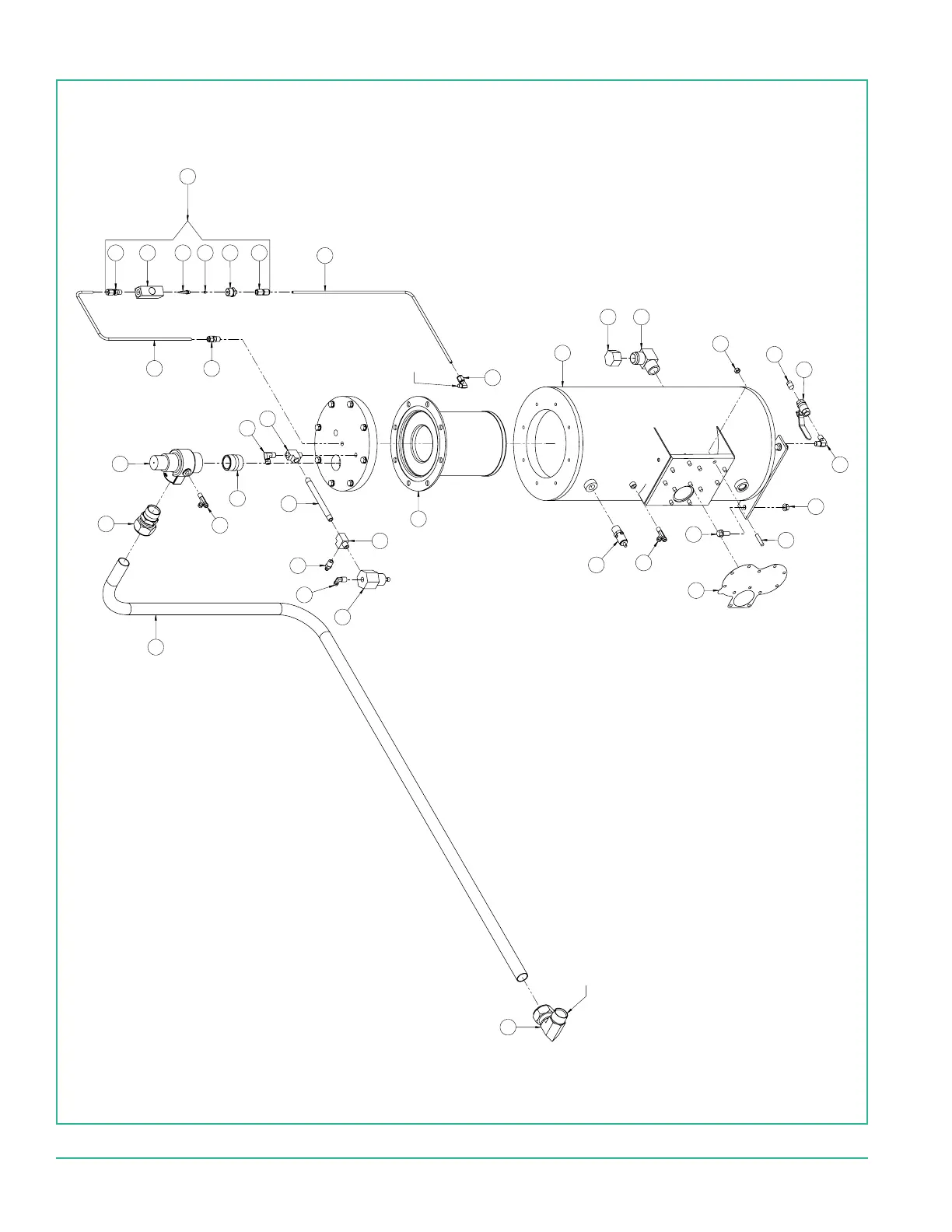

DISCHARGE SYS, 40HP TEFC
