NTS
ITEM #
PART NUMBER
DESCRIPTION
QTY
1
07711-202
COOLER, OIL/A.C. 15-30D7
1
2
13400-104
SHROUD, FAN 15-30D7
1
3
03216-104
GUARD,FAN 15-30HP
1
4
93115-002
BOLT, WHIZ 1/4"-20 X 1/2"
16
5
08207-055
HOUSING, BY-PASS
1
6
90659-121
O-RING, VITON
2
7
09505-006
VALVE, THERMOSTAT 155/185
1
8
90115-093
BOLT, HH 3/8-16 X 3
2
9
80120-010
CONN, CMS ORB 5/8 X .875M
3
10
00851-001
HUBE, FAN 1 3/8 BORE X 1"
1
11
08080-025
FAN, 25D
1
12
92224-047
BOLT, SOC 1/4-20 X 3/4
4
13
90947-252
KEY, SQ 5/16 X 3/4
1
14
90502-063
BOLT, SOC 1/4-20 X 3/4
1
15
93165-002
NUT, WHIZ 1/4"-20
10
16
09612-016
TUBE, THERMO VALVE TO AIR END 150
1
17
09612-026
TUBE, 5/8" SUMP-TV 25D4
1
18
80120-012
CONN, CMS ORB 3/4 X 1.06M
1
REVISIONS
REV.
DESCRIPTION
DATE
APPROVED
REDRAWN IN SOLIDWORKS
01/17/14
KRO
D
C
1
3
4
5
A
B
C
D
E
F
5
3
2
1
F
E
B
A
4
2
D
FIRST USED ON:
3RD ANGLE
PROJECTION
1201 West US Highway 20, Michigan City IN 46360
1-800-438-6203
SHEET
SCALE:
TOLERANCES AS FOLLOWS:
REV
DESCRIPTION
THIS DRAWING AND ALL INFORMATION THEREIN IS THE PROPERTY OF SULLIVAN-PALATEK, INC. IS CONFIDENTIAL AND MUST NOT BE MADE PUBLIC OR COPIED.
WWW.SULLIVANPALATEK.COM
SULLIVAN-PALATEK
CHECKED BY:
DATE:
DATE:
DRAWN BY:
ANGLES: + OR - 1/2 DEG.
DIMENSIONS ARE IN INCHES
UNLESS OTHERWISE NOTED
X.XXX + OR - 0.005
X.XX + OR - 0.020
DECIMAL: X.X + OR - 0.050
MATERIAL:
IT IS LOANED SUBJECT TO RETURN UPON DEMAND, IS NOT TO BE USED DIRECTLY OR INDIRECTLY IN ANYWAY DETRIMENTAL TO SULLIVAN-PALATEK'S INTEREST.
DRAWING NO:
SIZE
1 OF 1
AS804-015DT-TE

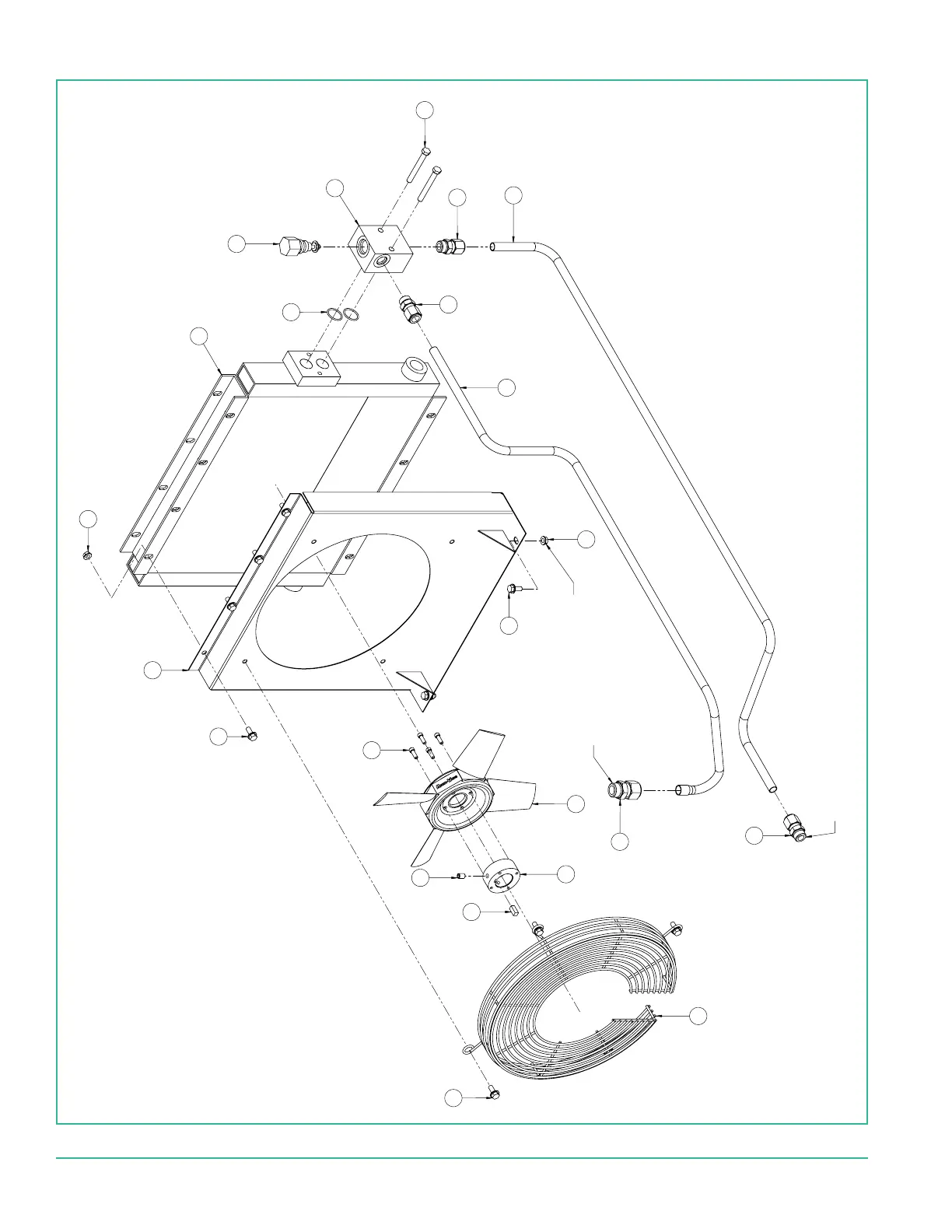

COOLING SYSTEM 15 HP
